MB1000 LV-MaxSonar-EZ0

MB1000 LV-MaxSonar-EZ0

Ranges from 6 inches to 254 inches with a 20Hz read rate. Widest detection field. Excellent for people detection.

Regular price From
$29.95
Regular price Sale price $29.95
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Specs

  • Resolution of 1 inch
  • 20Hz reading rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
  • Maximum Range of 254 inches (645 cm)
  • Operates from 2.5-5.5V
  • Low 2.0mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product

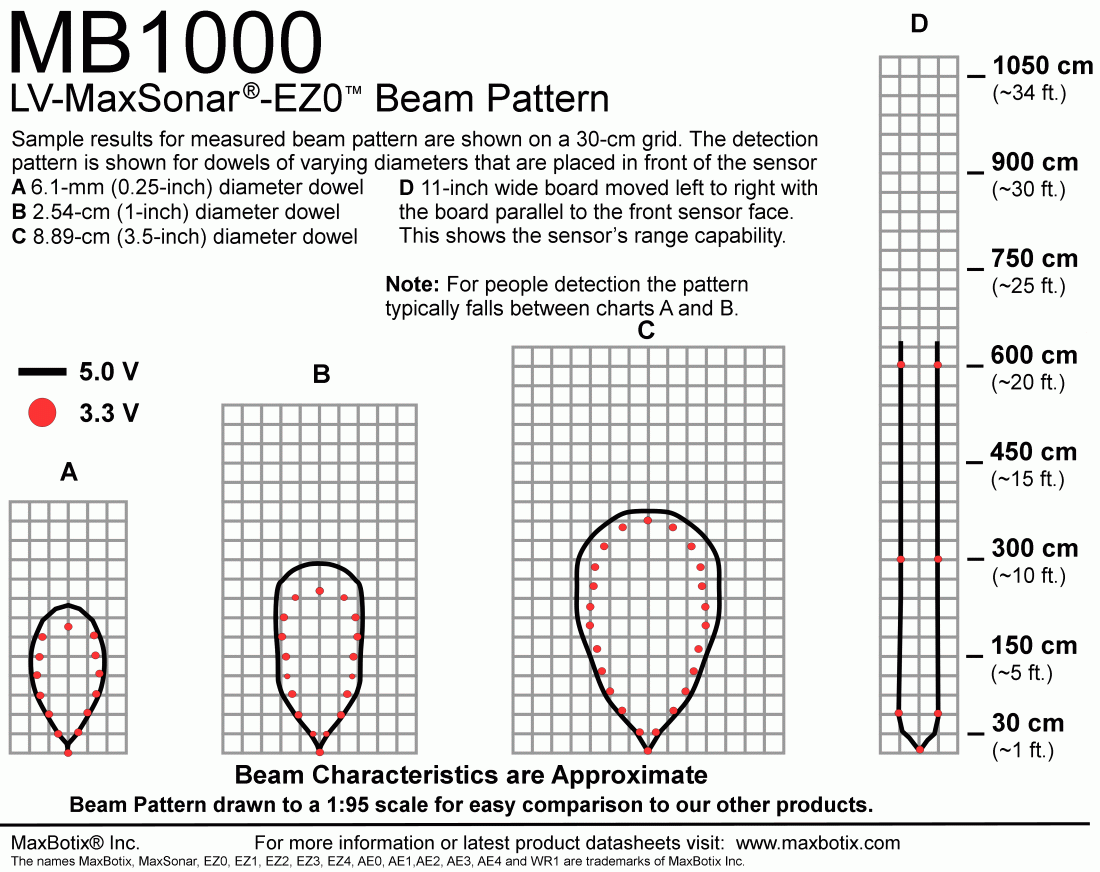

  • Widest beam of the LV-MaxSonar-EZ sensors
  • Great for people detection applications

Description

Features of the MB1000, LV-MaxSonar-EZ0, include one-inch resolution, the widest and most sensitive beam pattern of any unit from the LV-MaxSonar-EZ sensor line, short to long distance detection, range information from 6 inches to 254 inches, a 20Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

This makes the MB1000 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.

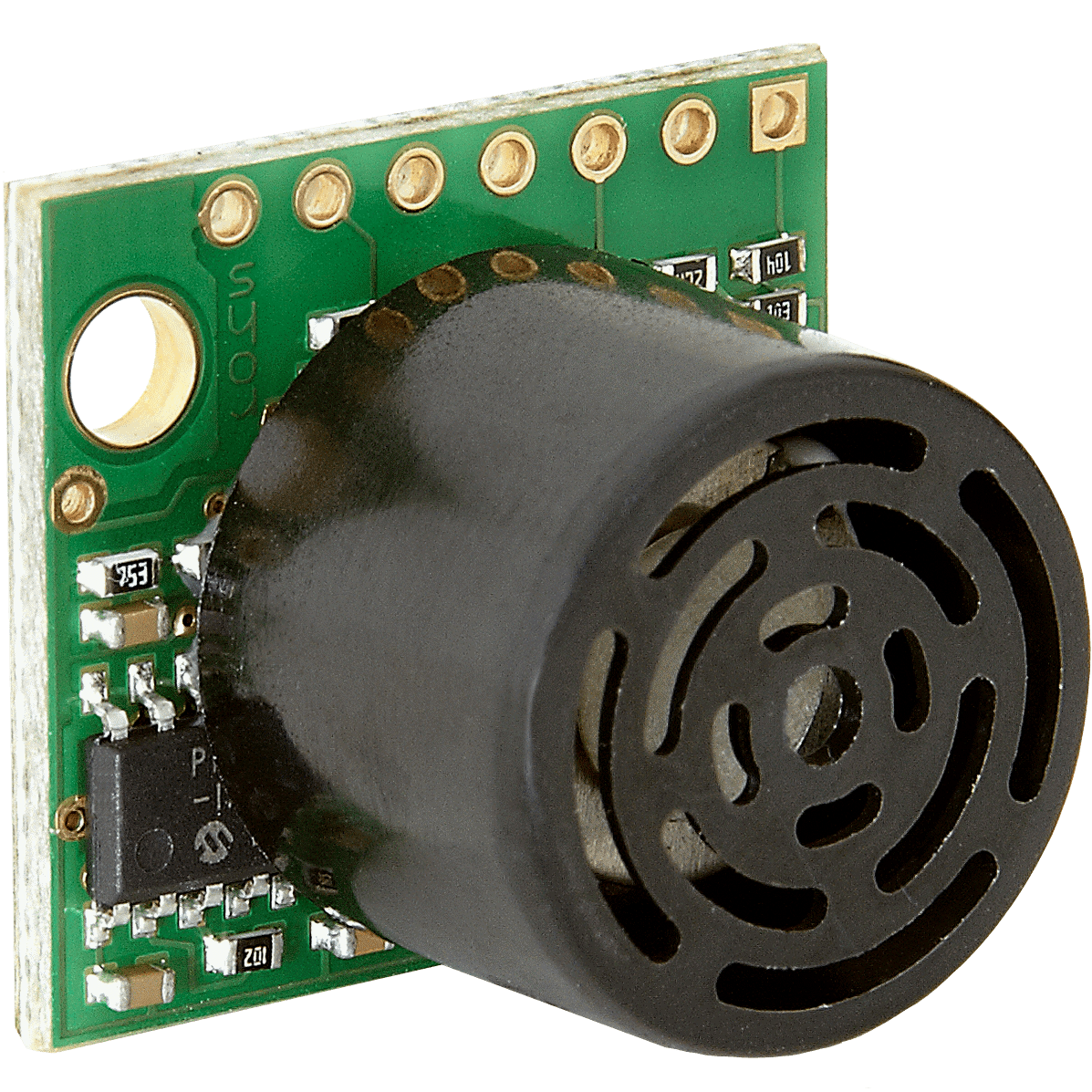

The MB1000 from the LV-MaxSonar-EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.

In addition, the MB1000 learns the ringdown pattern when commanded to start ranging. This helps the sensor to learn the environment and can help the sensor ignore obstacles that are present at power-up.

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB1000-00X

Product Change Notifications Associated with MB1000 LV-MaxSonar-EZ0

No PCNs on Record
