MB7568 SCXL-MaxSonar-WRML

MB7568 SCXL-MaxSonar-WRML

Ranges from 500mm to 9999mm with a 0.6Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target.

NEW USB Connection Available

NEW RangeTrack Software (requires USB connection)

Regular price $174.95 USD
Regular price Sale price $174.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Specs

  • Resolution of 1-mm
  • Self‑cleaning transducer
  • 0.57Hz read rate
  • Internal temperature compensation
  • 42kHz ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 50cm range as 50cm
  • Operates from 2.7-5.5V
  • Low 68mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational temperature -40°C to +65°C (-40°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, and ambient noise)
  • Firmware filtering for excellent noise tolerance and clutter rejection
  • Weather resistant (IP67), optional chemical resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
  • Long, narrow detection zone
  • Our longest-range, high-resolution outdoor, weather-resistant, ultrasonic sensor
  • RS232 Serial Output
  • Maximum range of 10 meters (394 inches)

Description

Features of the weather-resistant MB7568, SCXL-MaxSonar-WRML, include the reduced impact of condensation and frost when ran continuously in closed or high-moisture environments, millimeter resolution, short to long distance detection, range information from 500mm to 9999mm to the target with the largest acoustic return, a 0.6Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

The MB7568 from the SCXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).

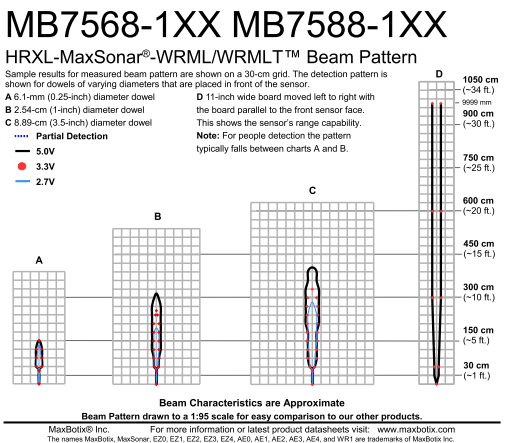

The SCXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

The MB7568 is designed to report the distance to the largest acoustic return while ignoring smaller targets. When targets are of similar amplitude reflections, preference is given to the closest target. This gives users the flexibility to consistently detect larger targets in the presence of clutter and noise.

If the largest target is removed from the field of view, the MB7568 will switch to the target that gives the next largest detectable return. This filtering makes the MB7568 one of our most advanced sensors for outdoor tank and bin applications.

In addition, the MB7568 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Intended for applications requiring the resistance of condensation in high moisture environments, our self-cleaning function is designed to run continuously in order for the self-cleaning feature to be active.


Variations on this sensor model

MB7588 is the TTL version of this sensor.

MB7569 is the base level version of this sensor.


Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.

Documentation and CAD files

Documents


Chemical Compatibility

Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.

Email: techsupport@maxbotix.com

Product 3D Models

100 Housing (Full Horn Housing)
Solid Works Part
STL File
STEP File

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB7568-100
MB7568-10A
MB7568-110
MB7568-11A
MB7568-120
MB7568-12A
MB7568-130
MB7568-13A

Product Change Notifications Associated with MB7568 SCXL-MaxSonar-WRML

No PCNs on Record
