MB1361 XL-MaxSonar-AEL1
MB1361 XL-MaxSonar-AEL1
SKU:MB1361-000
Ranges from 25cm to 1068cm with a 10Hz read rate. Wide detection field. Excellent for people detection.
Couldn't load pickup availability
Discounted pricing is shown in the cart.
| Quantity | 5-9 | 10-24 | 25-49 | 50-99 | 100+ |
| Discount | 5% | 10% | 15% | 20% | 25% |
Collapsible content
Description
Features of the MB1361, XL-MaxSonar-AEL1, include centimeter resolution, a great blend of sensitivity as well as side object rejection, short to long distance detection, range information from 25cm to 1068cm, a 10Hz read rate, and various output options: analog envelope, analog voltage, and RS232 serial.
This makes the MB1361 a good choice for long-range detection of large targets.
The MB1361 from the XL‑MaxSonar‑AE line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.
In addition, the MB1361 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.
Specs
- Resolution of 1 cm
- 10Hz reading rate
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Analog Envelope
- Virtually no dead zone, objects closer than 25 cm range as 25 cm
- Operates from 3.3-5.5V
- Low 3.4mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product
- Operational Temperature from 0˚C to +65˚C (32˚F to +149˚F)
- Real-time automatic calibration (voltage, humidity, ambient noise)
- Firmware filtering for better noise tolerance and clutter rejection
- 20+ Years Mean Time Between Failure

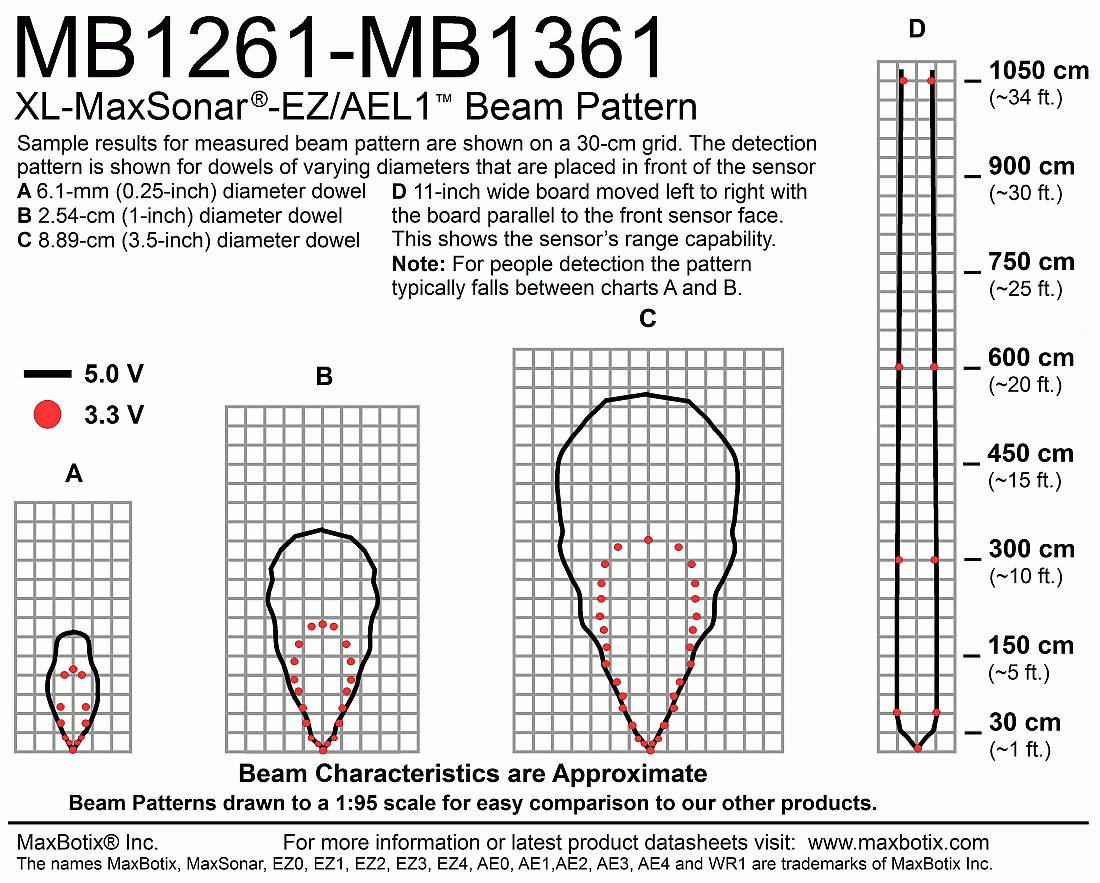

- Wide and sensitive beam, detects small targets to significant distances
- Maximum range of 1068 cm (420 inches)
- Hardware gain of 2000
- Long range, medium detection zone for small targets
Documentation and CAD files
Documents
| XL-MaxSonar-EZ Datasheet |
| Chaining Application Guide |
| RoHS Declaration of Conformity |
| CE Declaration of Conformity |
Product 3D Models
XL-EZ CAD Files
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB1361 XL-MaxSonar-AEL1
PCN1160
Regardless of calibration values, all sensors will have a maximum range output of 1068 cm.
PCN1168
The paint dots are removed from the sensors and replaced with part number labels.
PCN1200
The color of any exposed epoxy will be black or gray, rather than only gray.
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
MB7986 Voltage Regulator
View AccessoryThe voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.
