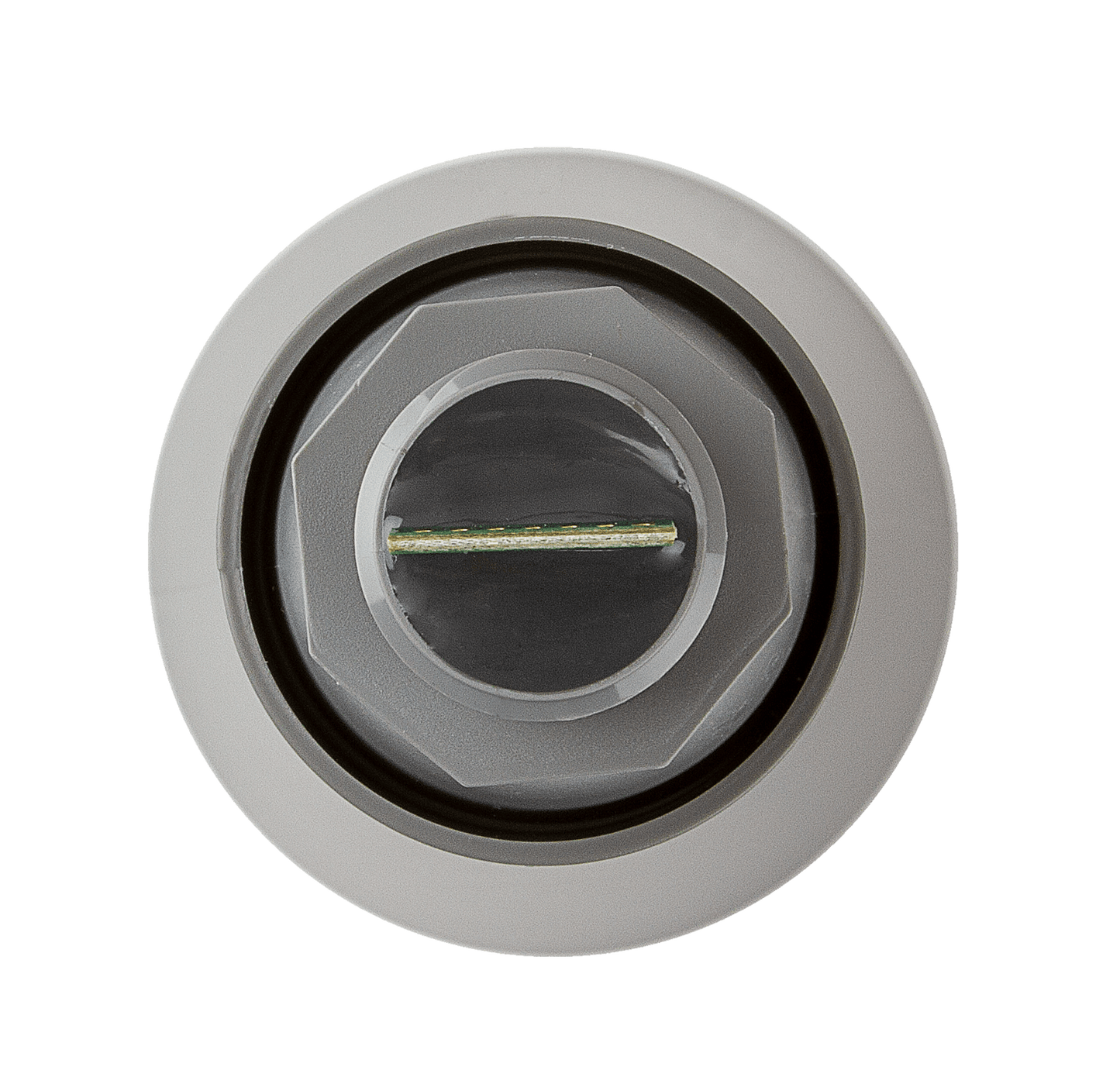

MB7053 XL-MaxSonar-WRML

MB7053 XL-MaxSonar-WRML

SKU:MB7053-800

Sensor ranges from 50cm to 1041cm to the target with the largest acoustic return at a 5.1Hz read rate, with 1cm resolution and pulse-width, analog voltage, and RS232 serial outputs.
Regular price $154.95 USD
Regular price Sale price $154.95 USD
Sale Sold out

Discounted pricing is shown in the cart.

Quantity Discount
5-9 5%
10-24 10%
25-49 15%
50-99 20%
100+ 25%

View full details

Collapsible content

Description

Features of the weather-resistant MB7053, XL-MaxSonar-WRML1, include centimeter resolution, short to long-distance detection, range information from 50cm to 1041cm to the target with the largest acoustic return, a 5.1Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

The MB7053 from the XL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

The XL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

The MB7053 is ideal for applications requiring small or soft target detection range at longer ranges than our other XL-MaxSonar-WR sensors. This is our most sensitive ultrasonic sensor in the XL-MaxSonar-WR line of sensors and is designed for pencil beam applications >10º, environments with acoustic and electrical noise, people detection, soft targets, bin level measurement, and tank level measurement.

In addition, the MB7053 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.


Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.

Specs

  • Resolution of 1 cm
  • 5.1Hz read rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 select sensor outputs: Analog Voltage, Serial, Pulse Width
  • Operates from 3.0-5.5V
  • Low 3.4mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 20+ Years Mean Time Between Failure
  • Weather Resistant (IP67), optional Chemical Resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4″ National Pipe Thread Straight)
  • Our most advanced weather-resistant, ultrasonic sensor
  • Detects the largest signal return in the field of view
  • Uses the complete dynamic range of the sensor, if no large targets are present the sensor will select the next smallest target in view
  • Can be used to range large objects behind small obstructions
  • Maximum range of 1041 cm (409 inches)
  • Long range, narrow detection zone
  • Pencil beam applications with a detection zone less than 10º

Documentation

Documents

Chemical Compatibility

Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.

Email: techsupport@maxbotix.com

Product 3D Models

100 Housing (Full Horn Housing)

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB7053-800
MB7053-801
MB7053-810
MB7053-811
MB7053-820
MB7053-821
MB7053-830
MB7053-831
