MB1644 HRLV-ShortRange-EZ4T

MB1644 HRLV-ShortRange-EZ4T

Detect large objects from 1mm to 5m. Senses range to objects from 2cm to 5m.

Regular price From
$34.95
Regular price Sale price $34.95
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Specs

  • Resolution of 1‑mm
  • 10Hz reading rate
  • Internal temperature compensation
  • Cost-effective solution where precision range findings are needed
  • Sensor component allows users to lower the cost of their systems without sacrificing performance
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, TTL, and Pulse Width
  • The sensor minimum reported distance is 2 cm (0.8 inches).
  • The HRLV-ShortRange-EZ will detect targets within 1 mm of the front sensor face.
  • Large targets closer than 2 cm will typically range as 20 mm.
  • Accuracy is factory-matched providing a typical accuracy of 1% or better
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • Operates from 2.5V-5.5V
  • Low 3.1mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -0C to +65C (+32F to +149F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Option external temperature compensation - HR‑MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Great starting point for users unsure of which sensor to use

Description

Features of the MB1644, HRLV-ShortRange-EZ4T, include millimeter resolution, range information from 2cm to 5m, a 10Hz read rate, and various output options: pulse-width, analog voltage, and TTL.

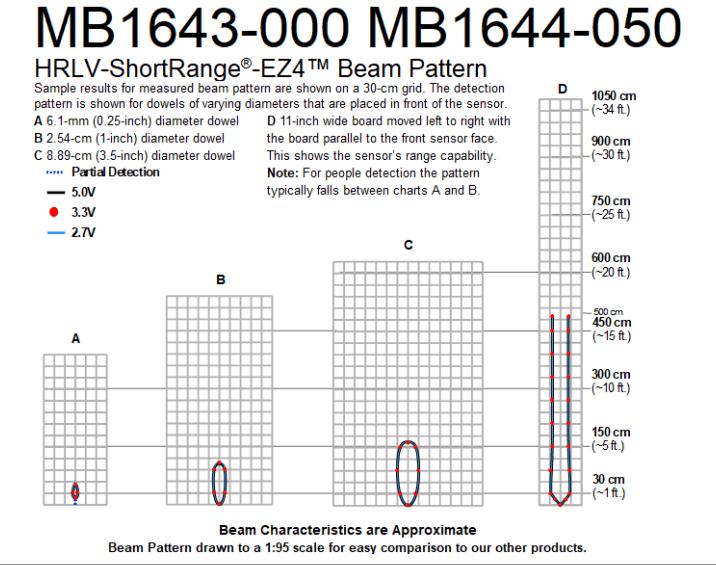

The HRLV-ShortRange-EZ4T is the narrowest beam width sensor which is also the least sensitive to side objects offered in the HRLV-ShortRange-EZ sensor line.

The HRLV-ShortRange-EZ4T is an excellent choice when only larger objects need to be detected.

Software Downloads

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB1644-00X

Product Change Notifications Associated with MB1644 HRLV-ShortRange-EZ4T

No PCNs on Record
