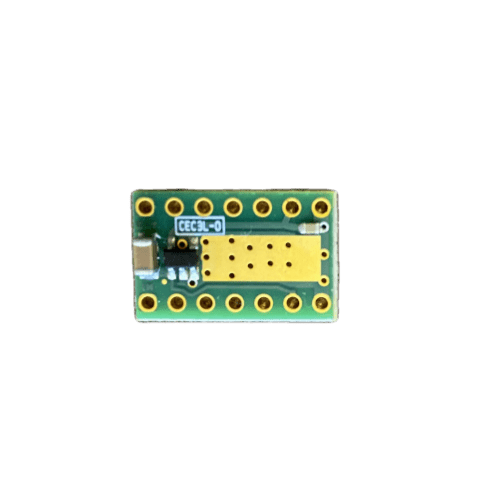

MB7986 Voltage Regulator
MB7986 Voltage Regulator
$15.59
Couldn't load pickup availability
Collapsible content
Description
The voltage regulator is used to automatically regulate voltage level. It will reduce the input voltage to the level you’re targeting and keeps that same level while supplying power to your sensors.
Specs
Voltage Range
3V – 30V

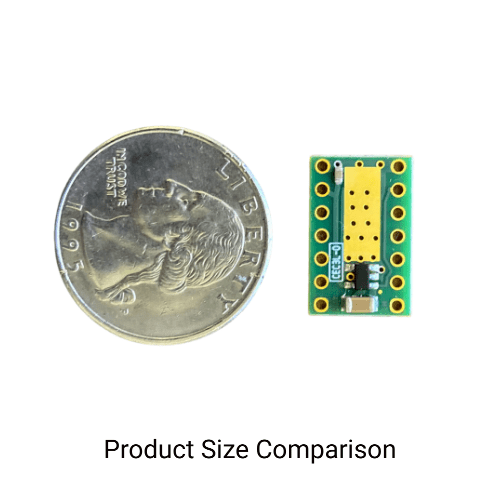

Mechanical Measurements
0.705″ wide x 0.454″ tall x 0.130″ thick.
Pin Spacing 0.100″
Compatibility
The Voltage Regulator Board is compatible with the following sensor lines:
- HRXL‑MaxSonar‑WR
- HRXL‑MaxSonar‑WRS
- HRLV-MaxSonar-EZ
- HRLV-ShortRange-EZ
- LV-MaxSonar-EZ
- XL-MaxSonar-EZ
- I2CXL‑MaxSonar‑WR
- XL‑MaxSonar‑WR
- XL‑TrashSonar‑WR
- LV-ProxSonar-EZ
- Parksonar-EZ
Component Overview
- Volume Pricing (10 or more units): Contact MaxBotix Inc. for a quote
Documentation and CAD files
Mechanical Measurements
0.705″ wide x 0.454″ tall x 0.130″ thick.
Pin Spacing 0.100″

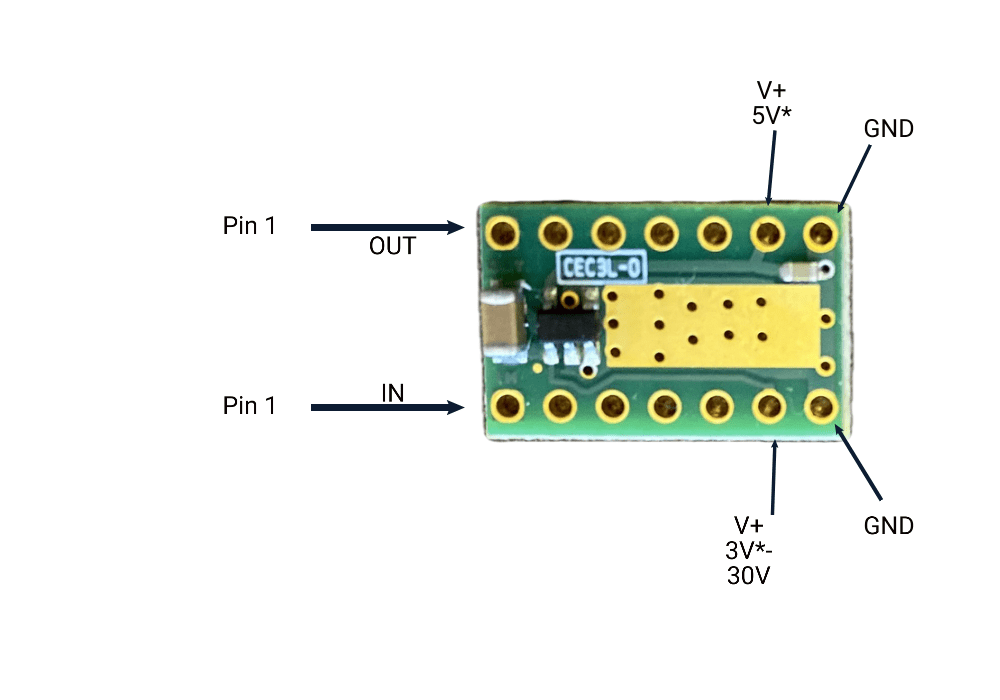

Pinout
Connect the pins of the sensor to the OUT side of the MB7986.
Pin 1 of the sensor connects to Pin 1 of the voltage regulation board.
This repeats for each pin of the sensor. (i.e. Pin 2 to Pin 2, etc.)
Connect the pins of the reading device to the IN side of the MB7986.
| From Device to IN | OUT to Sensor |
| Pin 1 – Pass Thru | Pin 1 – Pass Thru |
| Pin 2 – Pass Thru | Pin 2 – Pass Thru |
| Pin 3 – Pass Thru | Pin 3 – Pass Thru |
| Pin 4 – Pass Thru | Pin 4 – Pass Thru |
| Pin 5 – Pass Thru | Pin 5 – Pass Thru |
| Pin 6 – V+3V*-30V | Pin 6 – V+5V* |
| Pin 7 – GND | Pin 7 – GND |
*Input voltage from 3V-5V is pass through voltage which may experience up to a 0.1V drop.
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB7986 Voltage Regulator
No PCNs on Record
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
