MB7460 4-20HR-MaxSonar-WR

MB7460 4-20HR-MaxSonar-WR

SKU:MB7460-101

Ranges from 500mm to 5000mm with 7.5Hz read rate. 4mA minimum range and 20mA maximum range. Reports range to closest target.

Regular price $273.37 USD
Regular price Sale price $273.37 USD
Sale Sold out

Discounted pricing is shown in the cart.

Quantity Discount
5-9 5%
10-24 10%
25-49 15%
50-99 20%
100+ 25%

View full details

Collapsible content

Description

Features of the weather-resistant MB7460, 4-20HR-MaxSonar-WR, include millimeter resolution, short to long-distance detection, range information from 500mm to 5000mm for the nearest detectable target, a 7.5Hz read rate, and the industry-standard 4-20mA output where 4mA is the minimum range and 20mA is maximum range.

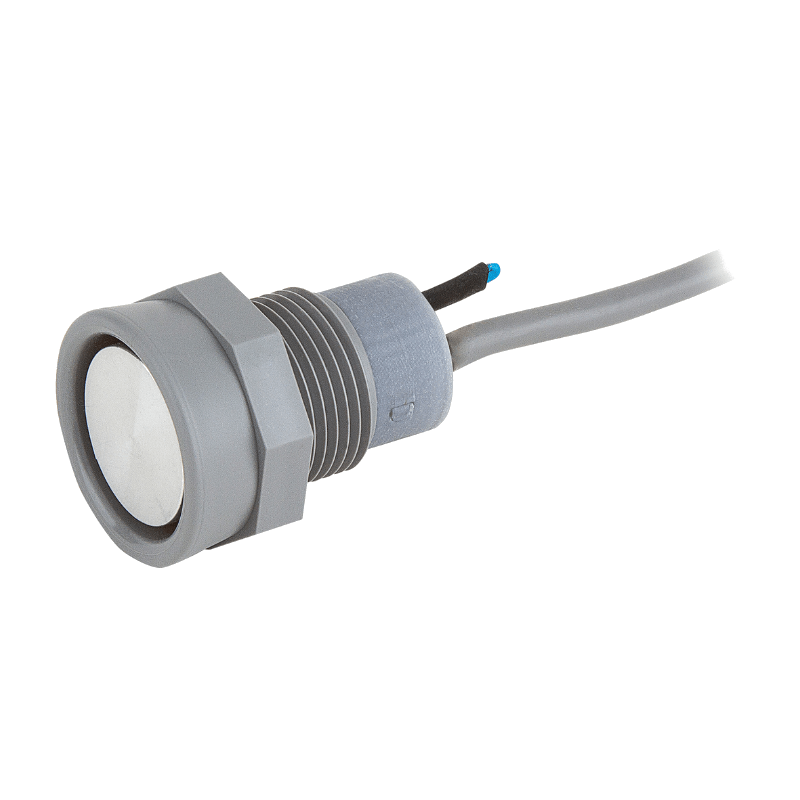

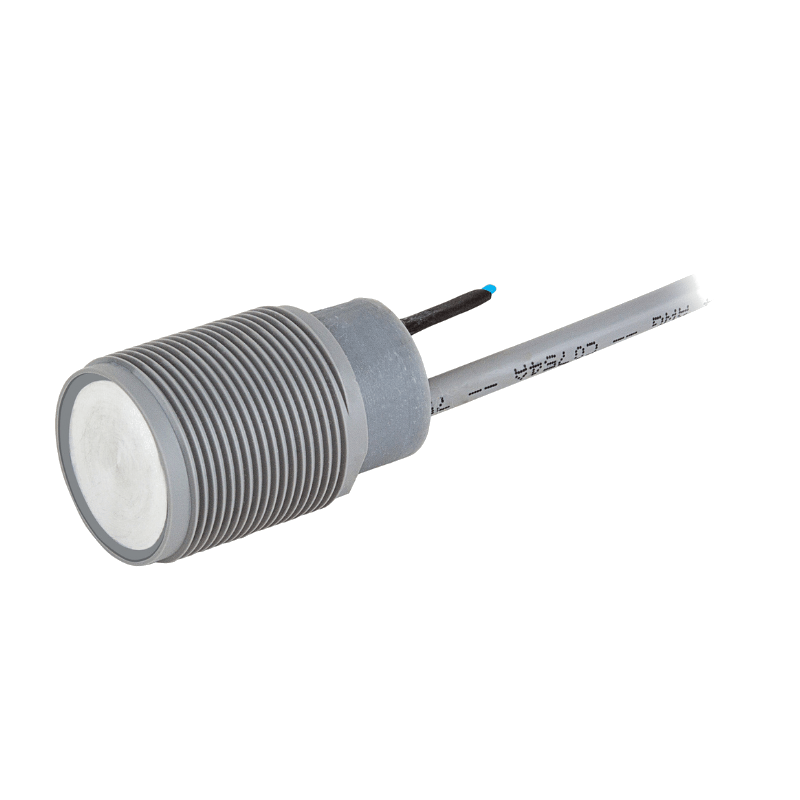

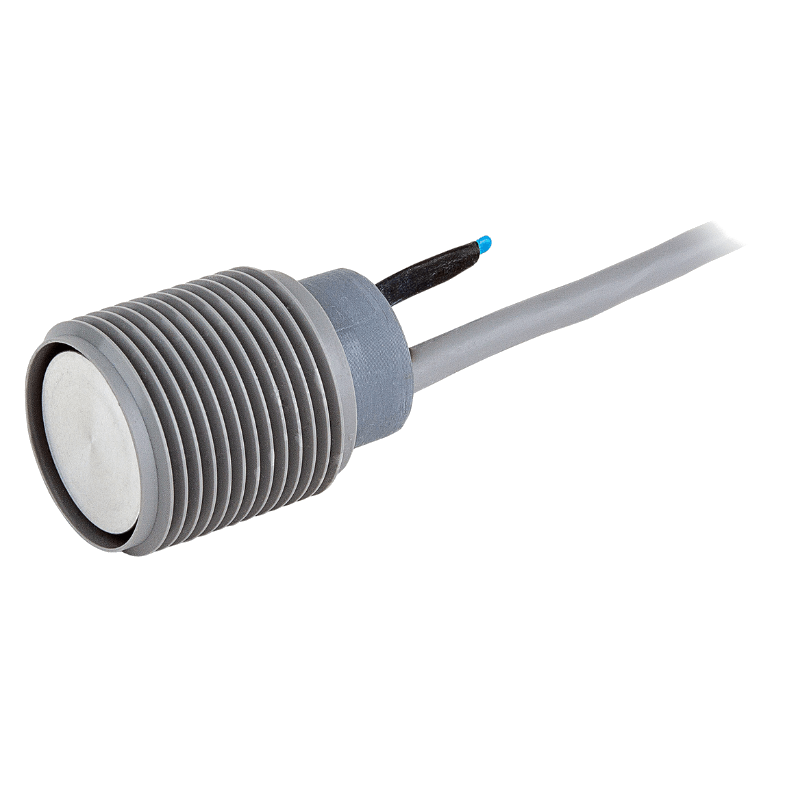

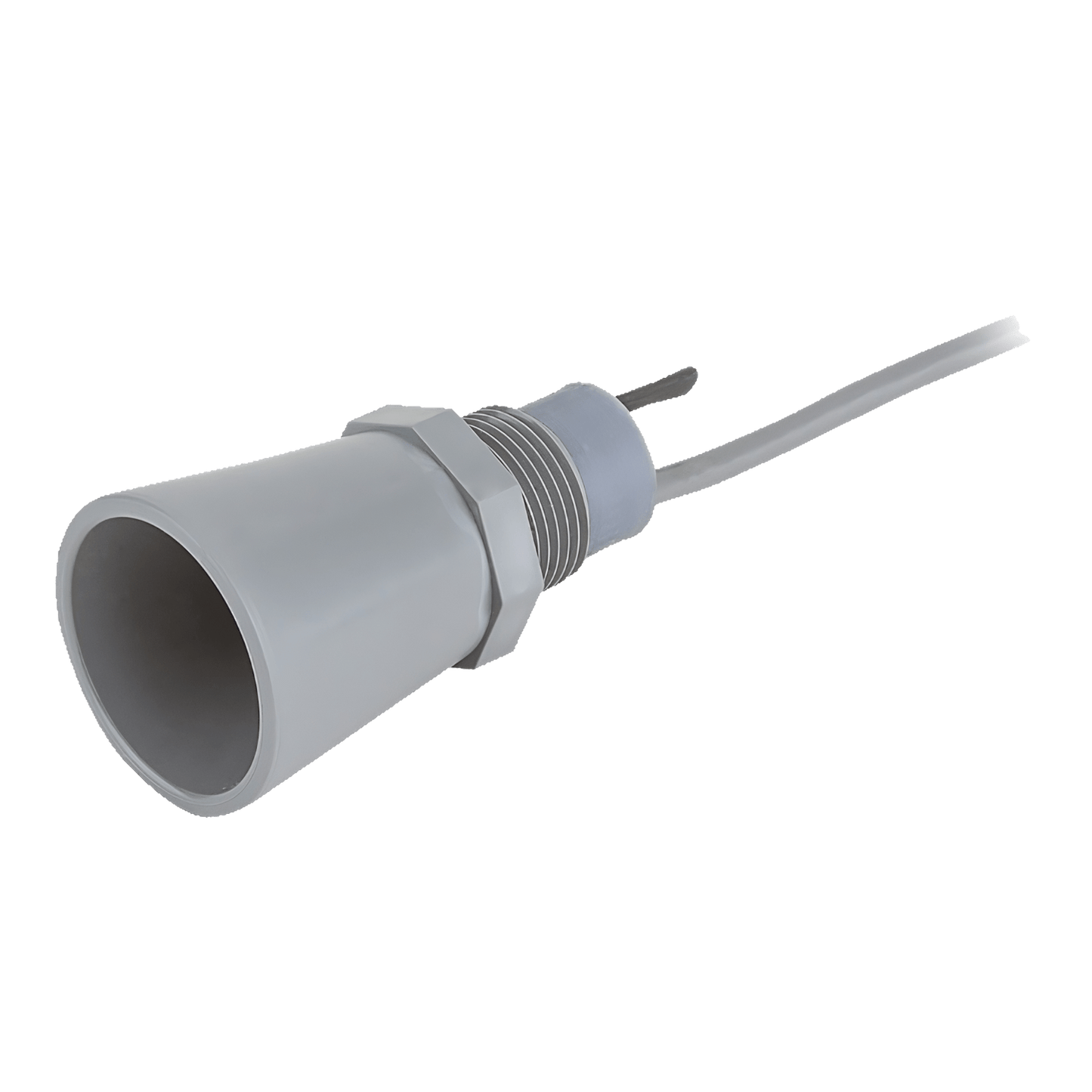

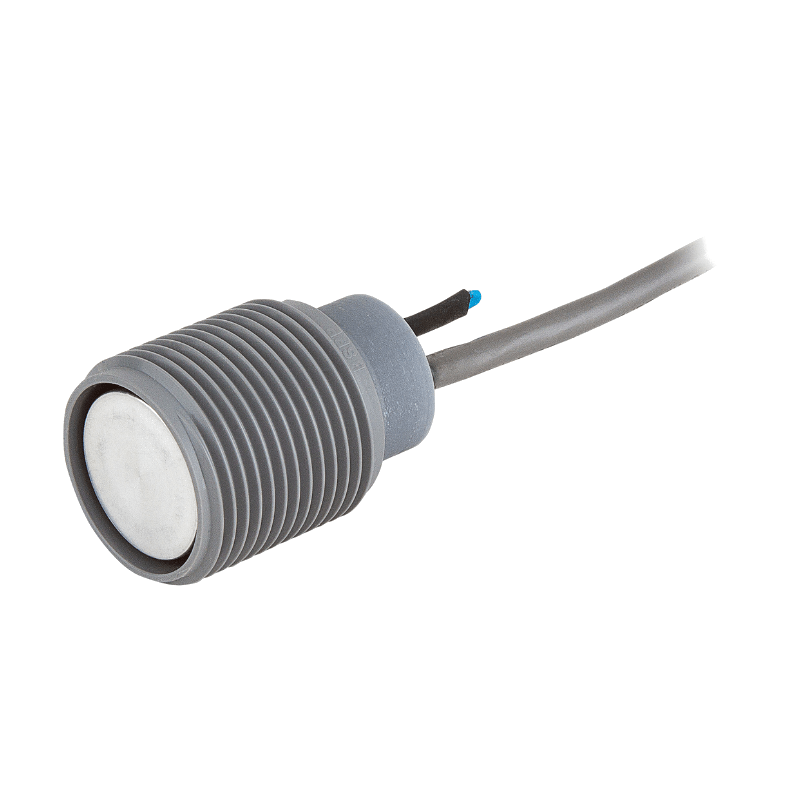

The MB7460 from the 4-20HR-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).

The 4-20HR-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

In addition, the MB7460 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.


Variations on this sensor model

MB7480 inverted output, 20-4mA, version of this sensor.


Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.

Specs

  • Resolution of ~1.6mm
  • Analog current output of 4-20mA
  • 7.5Hz read rate
  • 42kHz ultrasonic sensor measures distance to objects
  • RoHS compliant
  • CE compliant
  • Internal or external temperature compensation
  • Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
  • Maximum Range of 5-meters (196 inches)
  • Operates from 10V-32VDC
  • 40mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational temperature -40°C to +65°C (-40°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, and ambient noise)
  • Firmware filtering for excellent noise tolerance and clutter rejection
  • Weather resistant (IP67), optional chemical resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

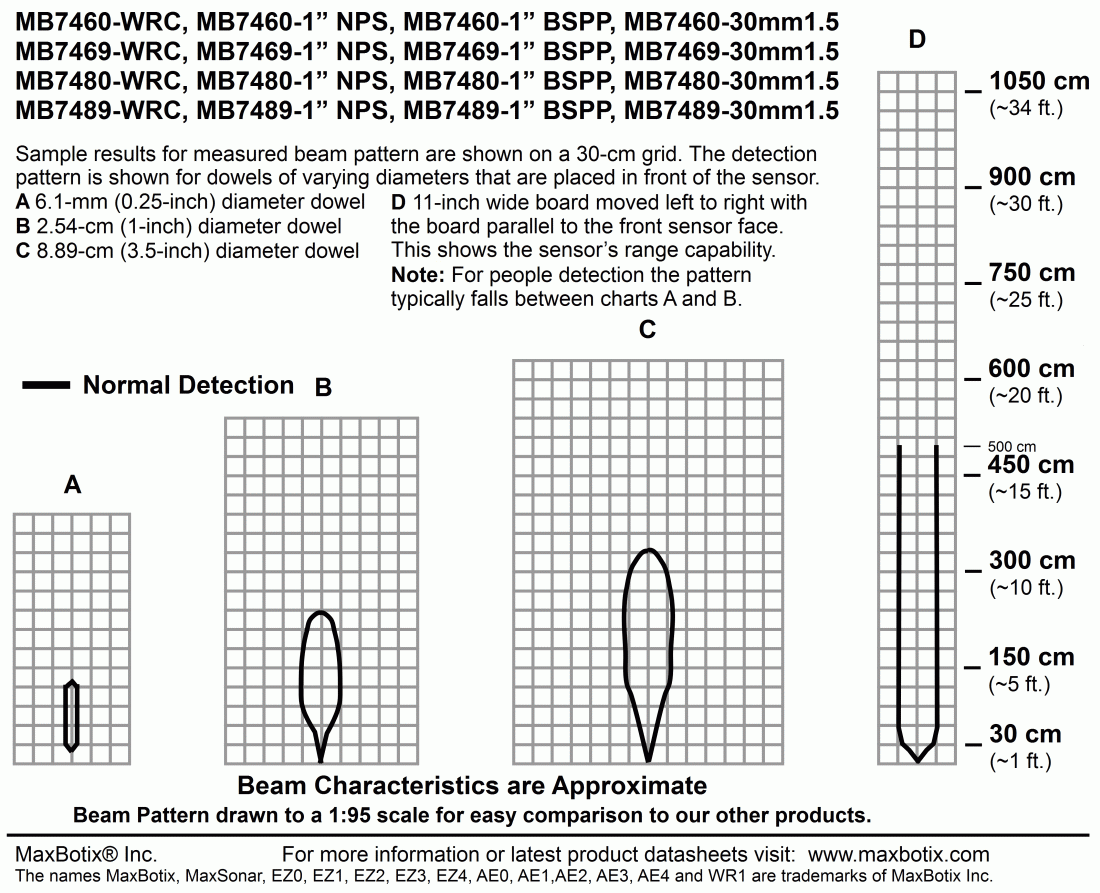

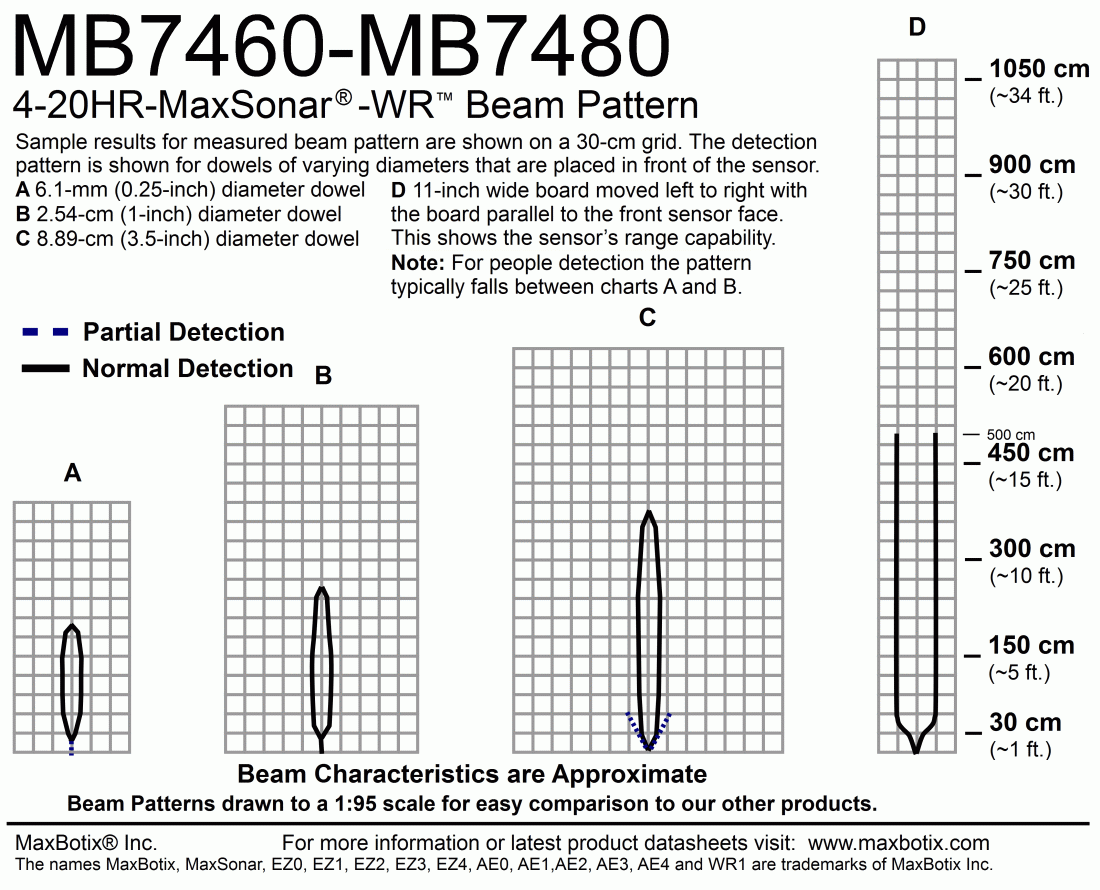

  • Long, narrow detection zone
  • Base sensor that is great for application testing
  • 4mA is the minimum reported range and 20mA is maximum reported range

Documentation

Documents



Chemical Compatibility

Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.

Email: techsupport@maxbotix.com

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB7460-101
MB7460-111
MB7460-121
MB7460-131
MB7460-201
MB7460-211
MB7460-221
MB7460-231
MB7460-501
MB7460-511
MB7460-521
MB7460-531
MB7460-601
MB7460-611
MB7460-621
MB7460-631
MB7460-701
MB7460-711
MB7460-721
MB7460-731
