Ultrasonic Sensors Product Catalog
MaxBotix ultrasonic sensors offer accuracy, industrial-grade durability, advanced features, and waterproof IP67 or IP68-rated protection to redefine distance measurement technology.
-
Shop products using filtering
Shop All ProductsYou can find the sensor you need by using our filters to identify the right product for you application.
-
Shop by product lines
Shop by Product LinesYou can find the sensor you need by shopping our expandable product lines page.
-
Not sure which sensor
Contact UsWe are happy to help select the right sensor with you. Please contact us and we'll work together.
-

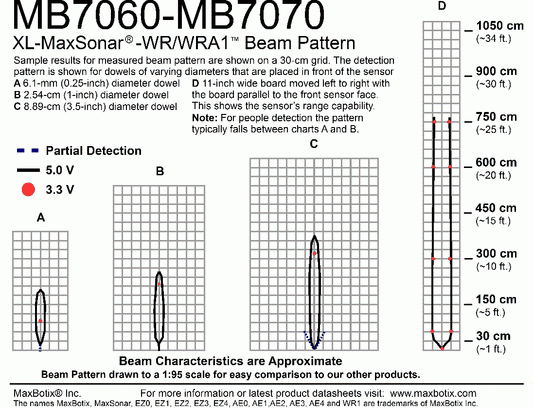

MB7060 XL-MaxSonar-WR
This ultrasonic sensor provides range information from 20cm up to 765cm* for the nearest detectable target at 1-centimeter resolution with a speed of 10Hz, and pulse-width, analog voltage, and RS232 serial outputs.
Regular price From
$84.65Regular priceUnit price per -

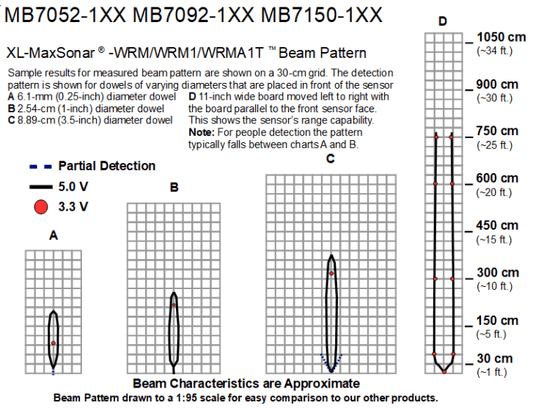

MB7052 XL-MaxSonar-WRMAT
Ultrasonic sensor ranges to the largest acoustic return, with centimeter resolution, providing range information from 25cm up to 765cm*, at a 6.7Hz read rate with pulse-width, analog voltage, and RS232 serial output.
Regular price From
$84.65Regular priceUnit price per -
MB7092 XL-MaxSonar-WRMA1
Ranges from 20cm up to 765cm* with a 10Hz read rate. Analog envelope, analog voltage, and RS232 serial. Reports range to largest target. Uses a stability filter.
Regular price From
$84.65Regular priceUnit price per -
MB7150 XL-MaxSonar-WRMAT
Ranges from 20cm up to 765cm* with a 10Hz read rate. Analog envelope, analog voltage, and TTL serial. Reports range to largest target. Uses a stability filter.
Regular price From
$84.65Regular priceUnit price per -

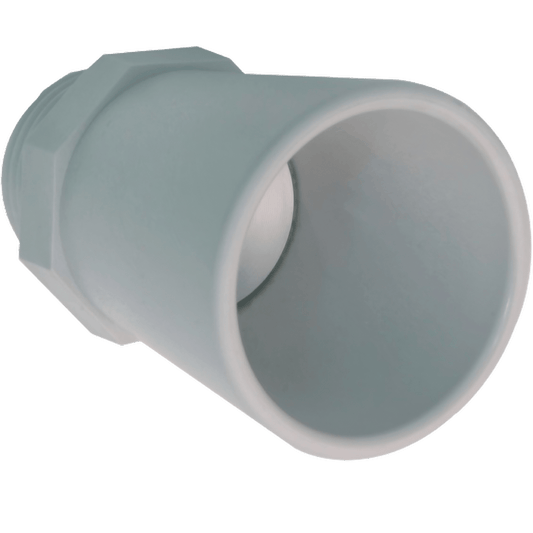

MB7066 XL-MaxSonar-WRL1
Ranges from 20cm to 1068cm with a 10Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target.
Regular price From
$84.65Regular priceUnit price per -

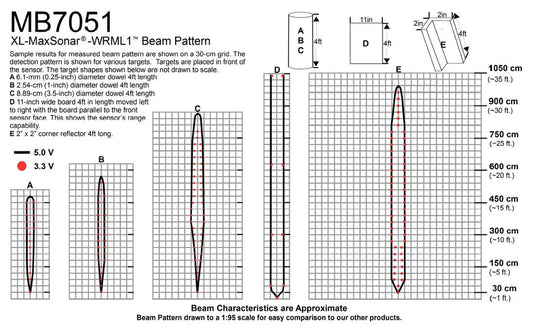

MB7051 XL-MaxSonar-WRML
Ranges from 50cm to 1041cm to the target with the largest acoustic return, a 5.1Hz read rate, with pulse-width, analog voltage, and RS232 serial outputs.Regular price From
$124.65Regular priceUnit price per -
MB7070 XL-MaxSonar-WRA
Ranges from 20cm up to 765cm* with a 10Hz read rate. Analog envelope, analog voltage, and RS232 serial. Reports range to closest target.
Regular price From
$84.65Regular priceUnit price per -
MB7062 XL-MaxSonar-WR1
Ranges from 20cm up to 765cm* with a 10Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target. Uses a stability filter.
Regular price From
$84.65Regular priceUnit price per -
MB7076 XL-MaxSonar-WRLA1
Ranges from 20cm to 1068cm with a 10Hz read rate. Analog envelope, analog voltage, and RS232 serial. Reports range to closest target.
Regular price From
$84.65Regular priceUnit price per -

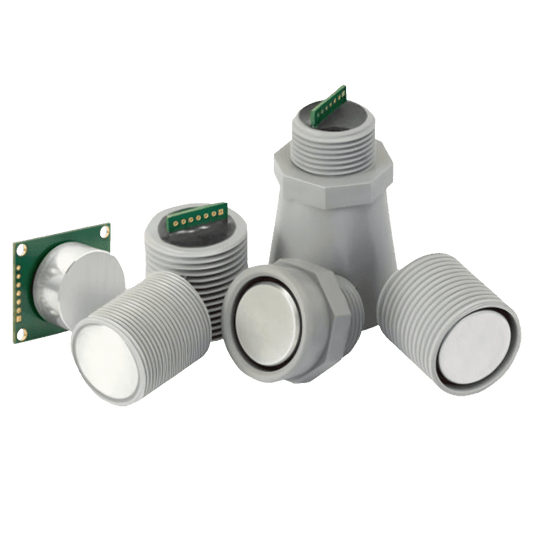

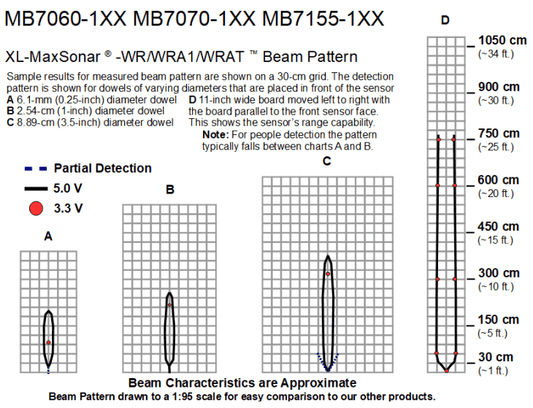

MB7155 XL-MaxSonar-WRAT
Ranges from 20cm up to 765cm* with a 10Hz read rate. Analog envelope, analog voltage, and TTL serial. Reports range to closest target.
Regular price From
$84.65Regular priceUnit price per -

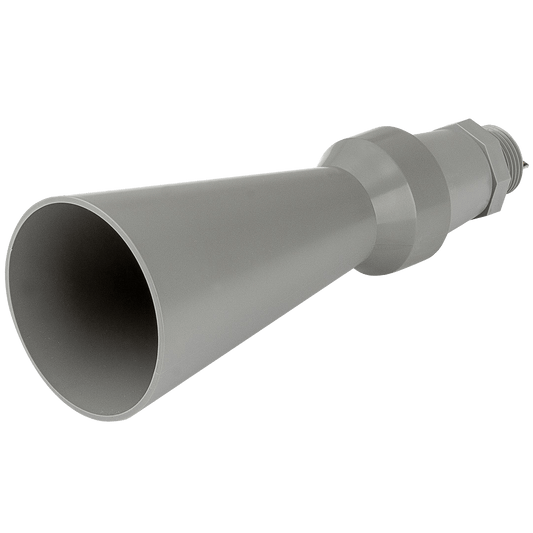

MB7053 XL-MaxSonar-WRML
Sensor ranges from 50cm to 1041cm to the target with the largest acoustic return at a 5.1Hz read rate, with 1cm resolution and pulse-width, analog voltage, and RS232 serial outputs.Regular price From
$124.65Regular priceUnit price per -
MB7072 XL-MaxSonar-WRA1
Ranges from 20cm up to 765cm* with a 10Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target. Uses a stability filter.
Regular price From
$84.65Regular priceUnit price per
