MB1444 USB-ProxSonar-EZ4
MB1444 USB-ProxSonar-EZ4
Ranges from 6 inches to 125 inches. 1-foot detection zone for proximity information with a ~2.5-second acquire time and ~1.5-second release time.
$49.95
Couldn't load pickup availability
Discounted pricing is shown in the cart.
| Quantity | 5-9 | 10-24 | 25-49 | 50-99 | 100+ |
| Discount | 5% | 10% | 15% | 20% | 25% |
Collapsible content
Specs
- USB interface
- ~2.5-second target acquire time*
- ~1.5-second target release time*
- Automatic multi-sensor operation
- People sensor
- Resolution of 1 inch
- Maximum Range of 125 inches (318 cm)
- Detection zone range of 12 inches (30 cm)
- 42kHz Ultrasonic sensor measures the distance to objects
- RoHS compliant
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Small, lightweight module
- Designed for easy integration into your project or product
- Short range detection
Description
Features of the MB1444, USB-ProxSonar-EZ4, include one-inch resolution, both proximity and range information for the nearest detectable target, and serial data over an easy-to-use USB interface.
The UUSB-ProxSonar-EZ line is designed for people or obstacles that enter within a calibrated detection zone. The USB-ProxSonar-EZ proximity sensors report when a person or other detectable target enters the detection zone. The target is released after leaving the USB-ProxSonar-EZ's detection zone.

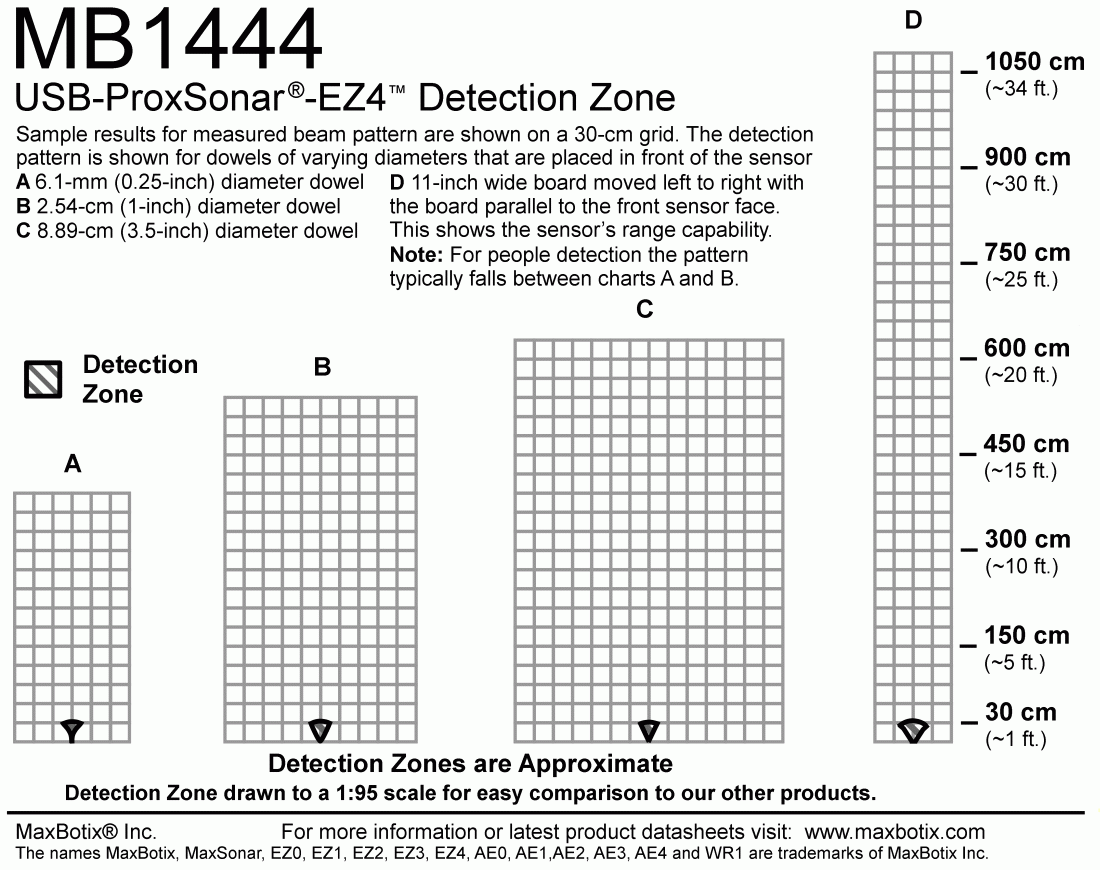

The MB1444 has a detection zone of ~1 feet. The MB1444 will allow for 15+ simultaneous sensors depending on sensor mounting and environment.
Documentation and CAD files
Documents
Product 3D Models
USB-EZ CAD Files
Software Downloads
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB1444 USB-ProxSonar-EZ4
No PCNs on Record
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
MB7986 Voltage Regulator
View AccessoryThe voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.
