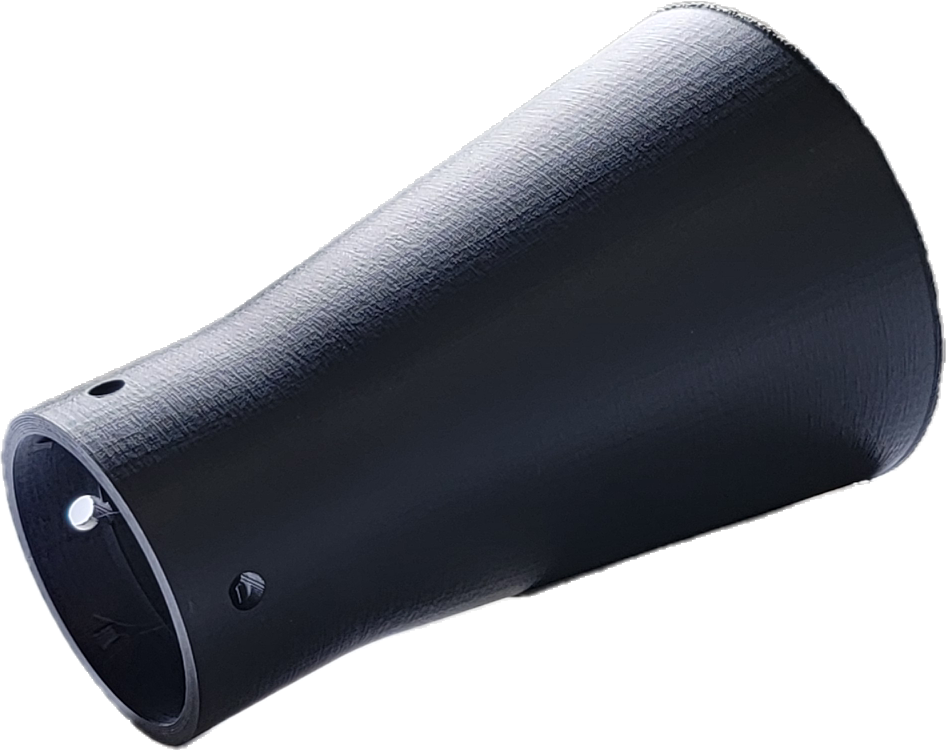

MB7974 Snow Sensor Horn (Snap-On Horn)
MB7974 Snow Sensor Horn (Snap-On Horn)Improves snow depth measurements and detection range for people with select sensors. Select this option on the applicable product page to purchase.
$40.00
Collapsible content
Description

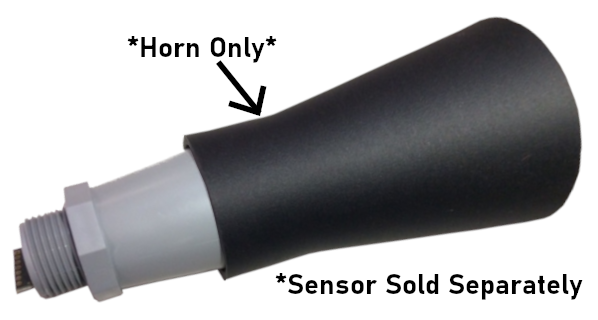

The MB7974 is designed to improve the HRXL-MaxSonar-WRS and SCXL‑MaxSonar-WRS performance in snow depth measurement applications. This horn can also increase the range that people are detected with select sensors. Not for individual sale, to purchase a sensor with the Snap-On Horn select the Extended Snap-On Horn housing Option from the sensor product page.
Specs
To check the compatibility of the MB7974 Snap-On Horn please view the available housing options on any of our sensor product pages.
Documentation and CAD files
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB7974 Snow Sensor Horn (Snap-On Horn)
No PCNs on Record
