MB1010 LV-MaxSonar-EZ1

MB1010 LV-MaxSonar-EZ1

Ranges from 6 inches to 254 inches with a 20Hz read rate. Wide detection field. Excellent for people detection.

Regular price $29.95 USD
Regular price Sale price $29.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Specs

  • Resolution of 1 inch
  • 20Hz reading rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
  • Maximum Range of 254 inches (645 cm)
  • Operates from 2.5-5.5V
  • Low 2.0mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product

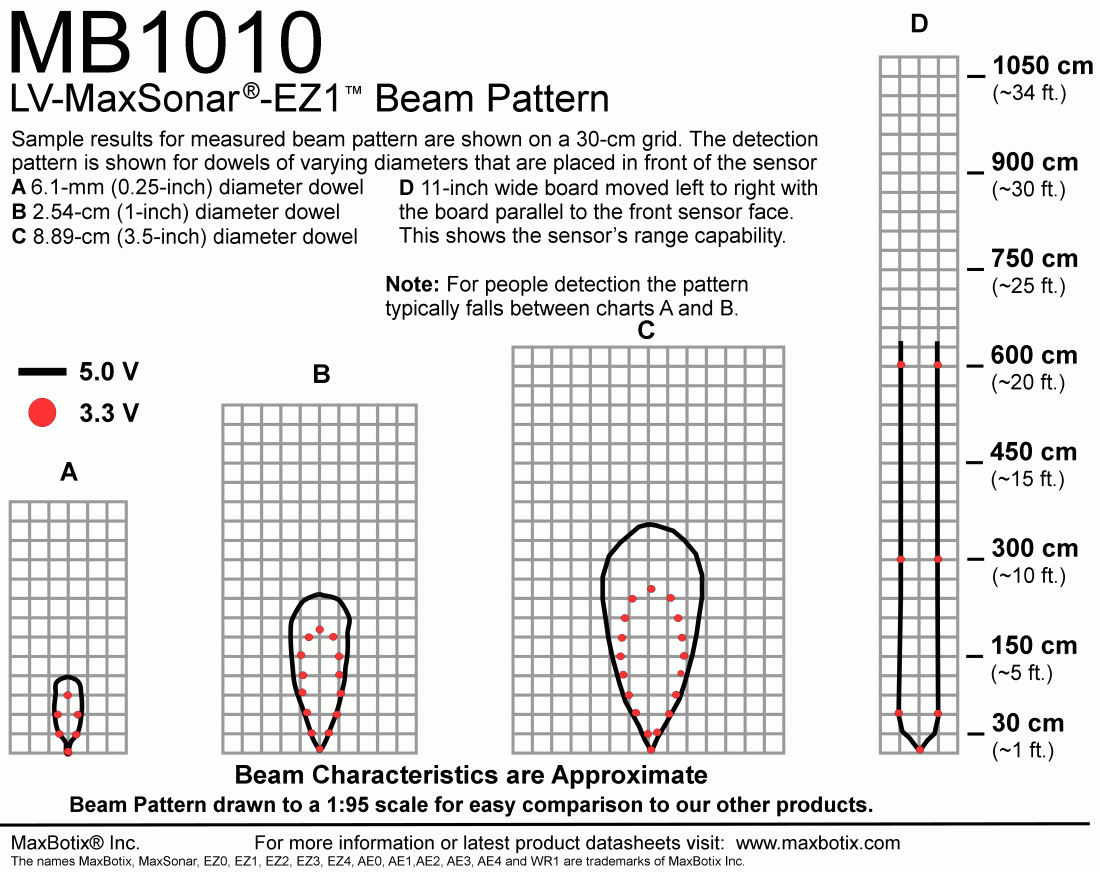

  • Widest beam of the LV-MaxSonar-EZ sensors
  • Our most popular indoor ultrasonic rangefinder
  • Our low cost, all-around sensor that is excellent for many projects
  • Best beam and sensitivity balance for the LV-MaxSonar-EZ sensors

Description

Features of the MB1010, LV-MaxSonar-EZ1, include one-inch resolution, a great blend of sensitivity as well as side object rejection, range information from 6 inches to 254 inches, a 20Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

This makes the MB1010 a good low-cost starting place for a customer not sure of which LV‑MaxSonar‑EZ sensor to use.

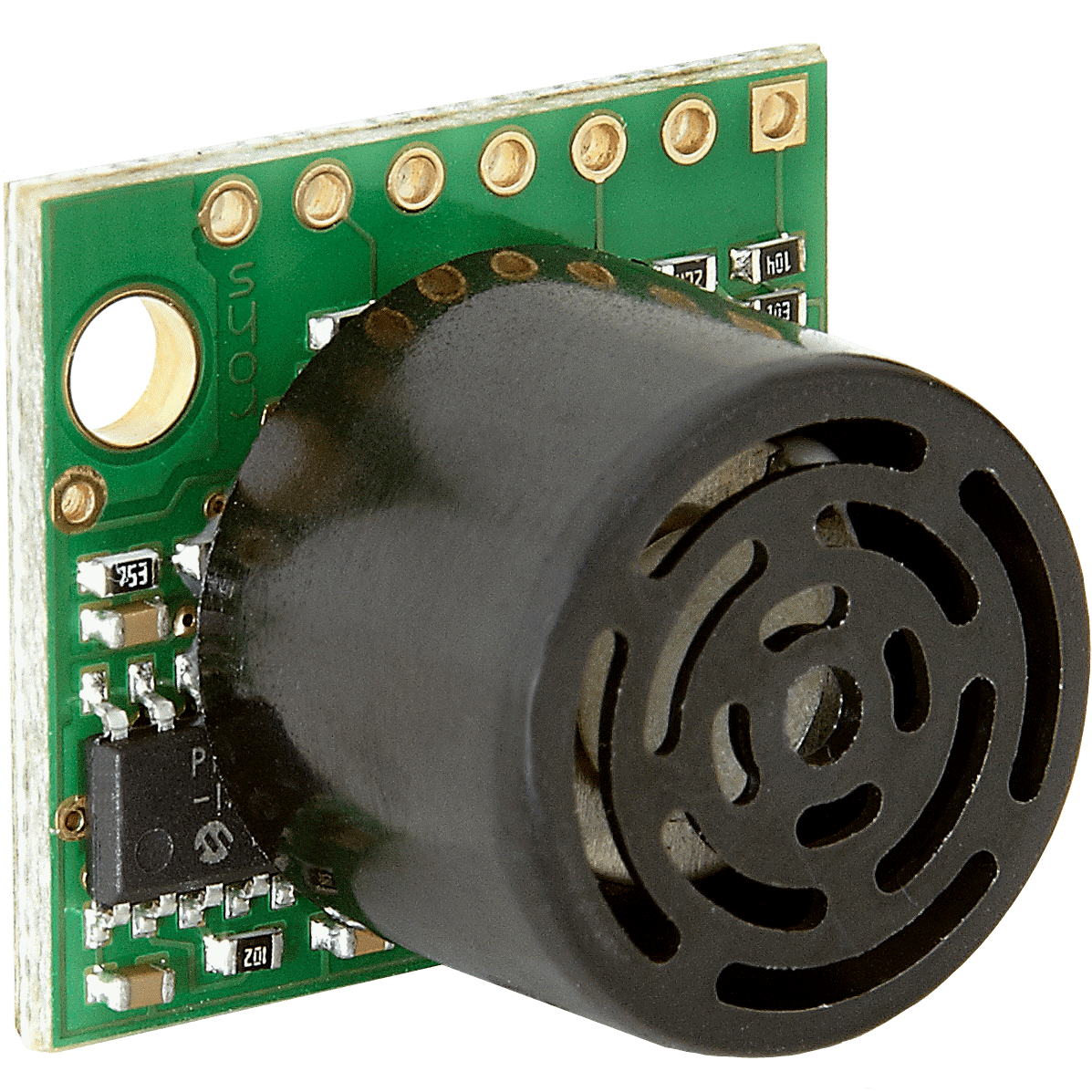

The MB1010 from the LV‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.

In addition, the MB1010 learns the ringdown pattern when commanded to start ranging. This helps the sensor to learn the environment and can help the sensor ignore obstacles that are present at power-up.

Software Downloads

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB1010-00

Product Change Notifications Associated with MB1010 LV-MaxSonar-EZ1

No PCNs on Record

  • Pin Header (90 Degree 7 Pin) Attached - MaxBotix- 90-000 - Ultrasonic Sensors

    Pin Header (90 Degree 7 Pin) Attached

    Connector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)

    View Accessory
  • Pin Connector (7 Pin) Attached - MaxBotix- 7-000 - Ultrasonic Sensors

    Pin Connector (7 Pin) Attached

    Connector Header Through Hole 7 position 0.100″ (2.54mm)
