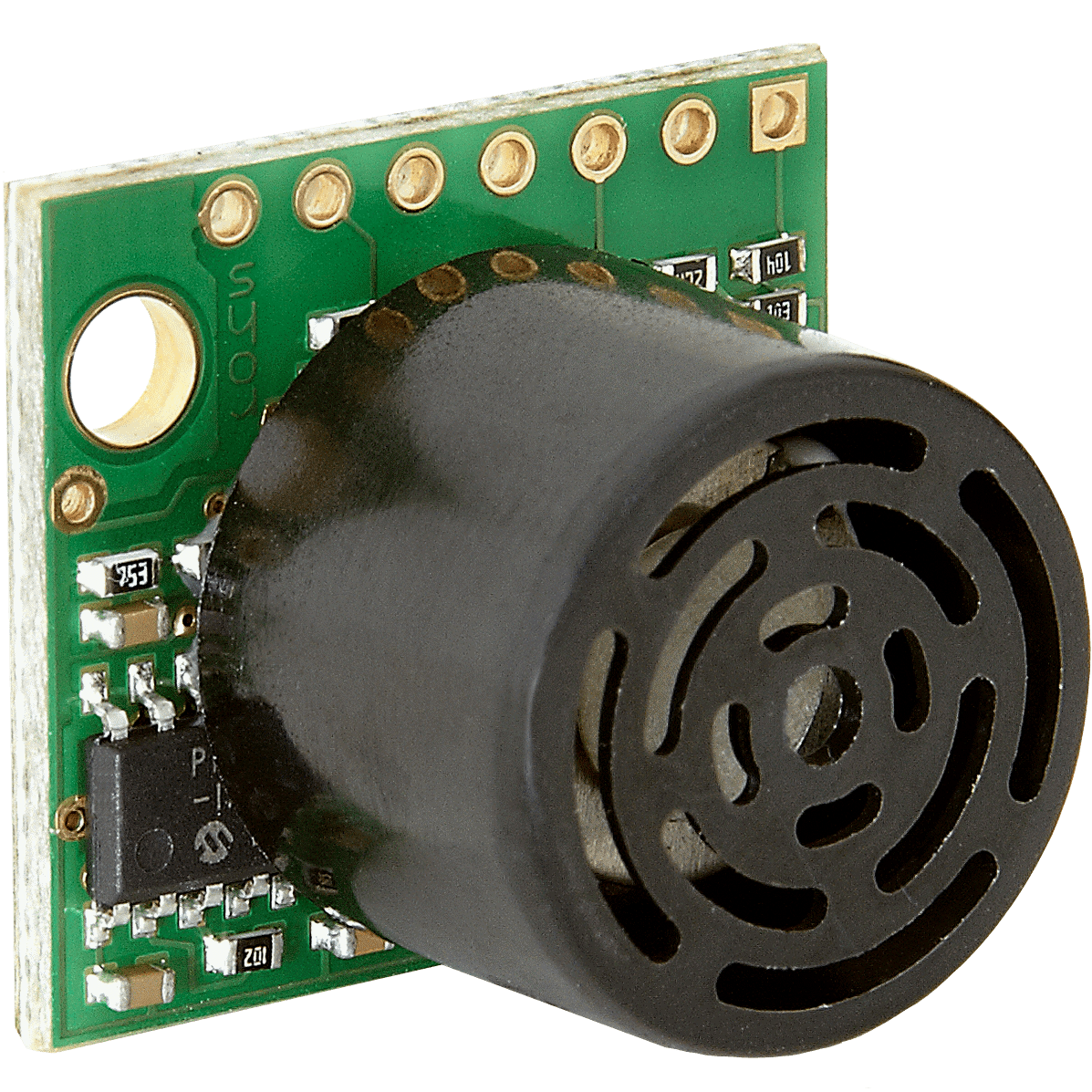

MB1008 ParkSonar-EZ-132
MB1008 ParkSonar-EZ-132
Ranges from 6 inches to 254 inches. 11-foot detection zone for proximity information with a ~10-second acquire time and ~5-second release time.
$29.95
Couldn't load pickup availability
Discounted pricing is shown in the cart.
| Quantity | 5-9 | 10-24 | 25-49 | 50-99 | 100+ |
| Discount | 5% | 10% | 15% | 20% | 25% |
Collapsible content
Specs
- Resolution of 1 inch
- ~10 second target acquire time*
- ~5 second target release time*
- Automatic multi-sensor operation
- Vehicle Detection Sensor
- Maximum reported range of 254 inches (645 cm)
- Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Virtually no sensor dead zone, objects closer than 6 inches typically range as 6 inches
- Operates between 2.5 and 5.5V
- Low 2.0mA average current requirement
- Small, lightweight module
- Designed for easy integration into your project or product

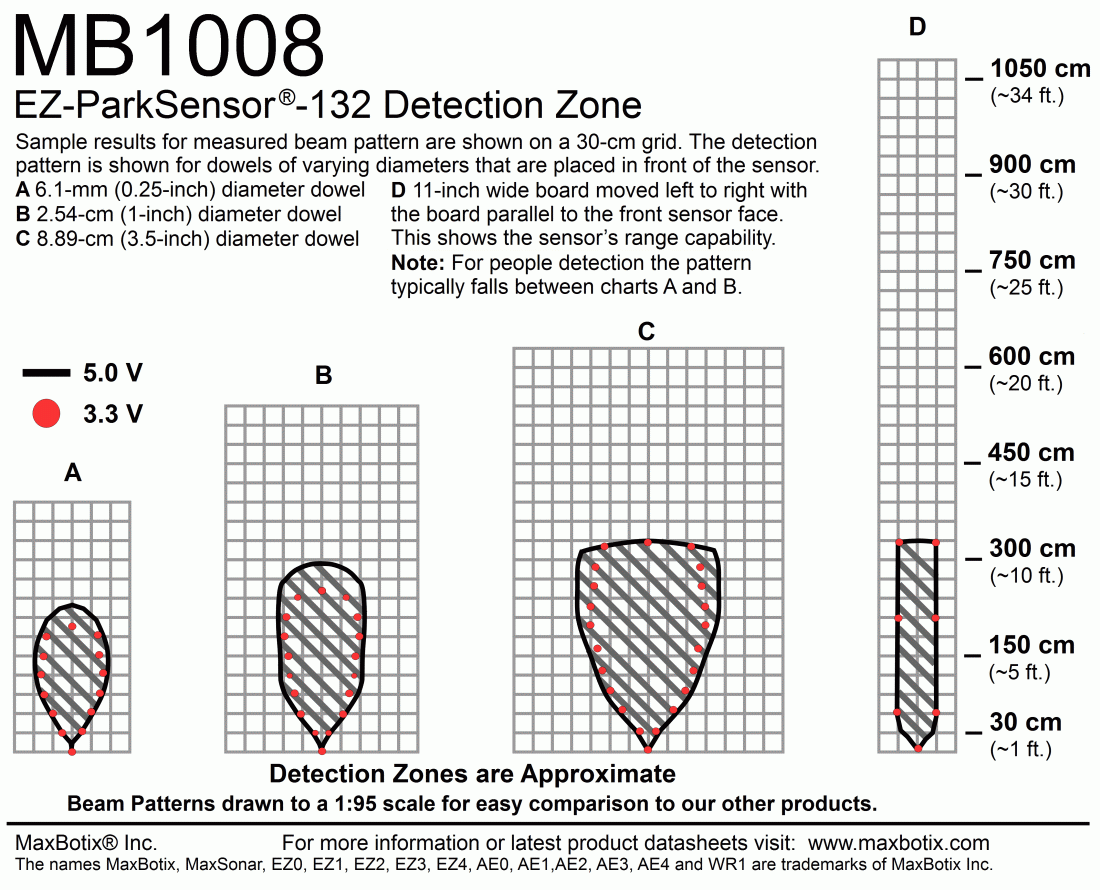

- Proximity Detection zone of 11 feet (132 inches)
Description
Features of the MB1008, ParkSonar-EZ-132, include one-inch resolution, both proximity and range information for the nearest detectable target, and various output options: high/low logic level and RS232 serial.
The ParkSonar-EZ line is designed to detect vehicles within a calibrated detection zone. The ParkSonar-EZ proximity sensors report when a vehicle or other detectable target enters the detection zone. The target is released after leaving the ParkSonar-EZ's detection zone.
The MB1008 has a detection zone of ~11 feet. The MB1008 will allow for 14+ simultaneous sensors depending on sensor mounting and environment.
Documentation and CAD files
Documents
| ParkSonar-EZ Datasheet |
| Chaining Application Guide |
| RoHS Declaration of Conformity |
| CE Declaration of Conformity |
Product 3D Models
LV-EZ CAD Files
Software Downloads
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB1008 ParkSonar-EZ-132
No PCNs on Record
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
MB7986 Voltage Regulator
View AccessoryThe voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.
