Are you constantly challenged by the need to maintain precise tank levels in your designs? Do you seek a way to effortlessly integrate accurate and reliable tank level monitoring into your product solutions?

In industries ranging from agriculture to manufacturing, ensuring that tanks maintain optimal levels is crucial. The uncertainty of tanks running dry or overflowing can disrupt operations and increase stress. Manual level checks are prone to errors and incur significant labor costs.

Introducing the MaxBotix Ultrasonic Tank Sensor – your key to integrating precise and efficient tank level monitoring into your product designs. With this sensor, you can enhance your solutions, providing users with reliable and automated tank level management.

  • Specifications

    • 1 mm resolution

    • 5 cm minimum reported distance

    • 5 meter max range and 16.5 meter max range

    • 3V to 5.5V supply with very low average current draw below 2mA

    • RS232 / TTL / Analog Voltage / Analog Envelope outputs

    • -40ºC (-40ºF) to +65ºC (149ºF)

  • Features

    • Ability to teach the sensor its environment

    • Liquid detection includes zero range

    • Reliable and stable range data

    • Very low power, excellent for
    battery based systems

    • 200,000+ hour MTBF

    Made in the USA with US and Imported Parts

  • Benefits

    • Filtering allows very reliable
    operation in most environments

    • Easy to install with standard
    electrical fittings

    • Advanced range information is readily available by sending commands to the sensor
    • Five Star Support of our sensor before, during and after purchase.

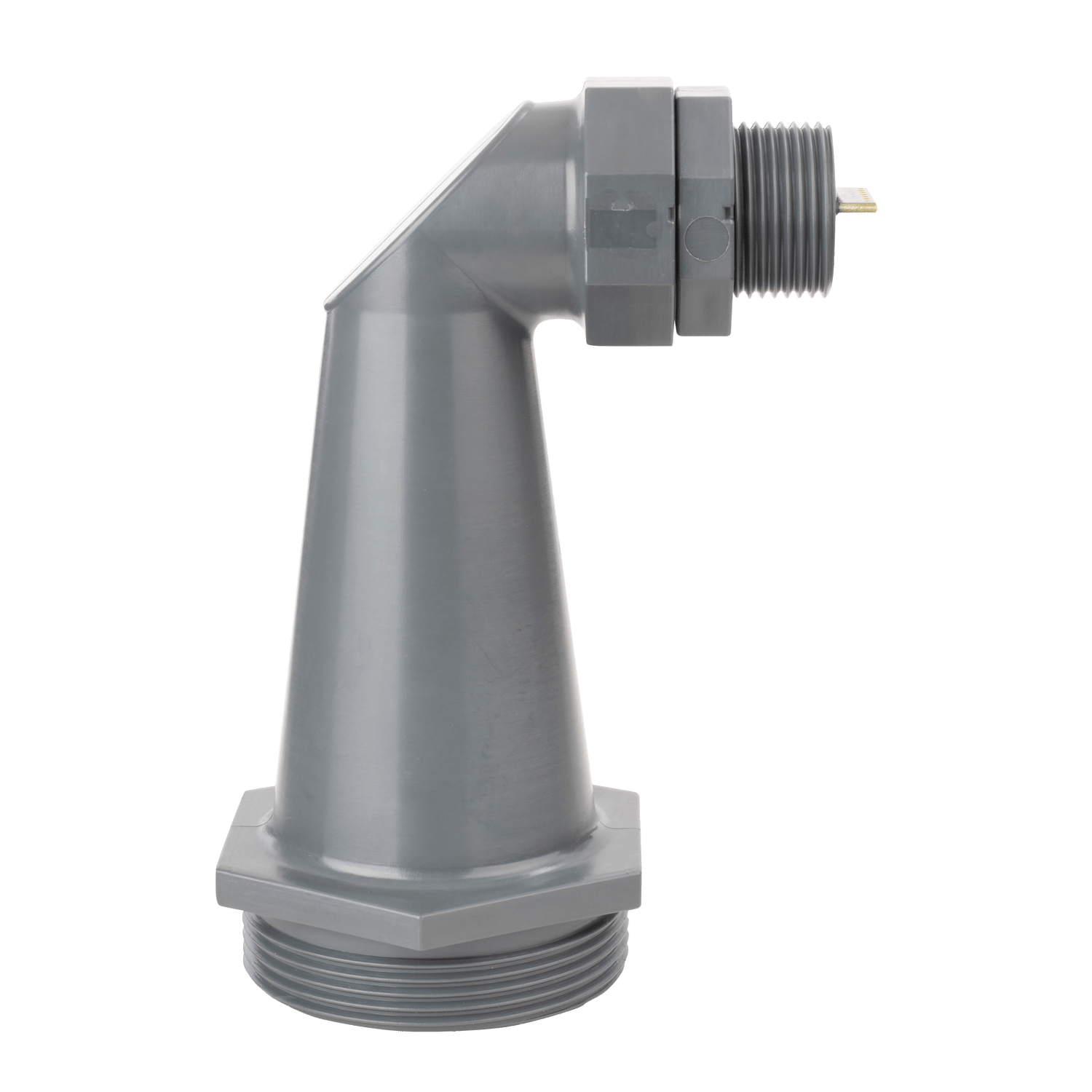

MB7850 TankSensor - MaxBotix- MB7850-B20 - Ultrasonic Sensors

The MaxBotix Ultrasonic Tank Sensor provides a straightforward plan to tackle your liquid level worries. With its cutting-edge technology, it offers accurate, real-time data on your tank levels, so you can make informed decisions and prevent costly disasters. No more guessing, no more sleepless nights – just confidence in your tank management.

Don't let your tank worries linger any longer. It's time to take action and upgrade your tank monitoring with the MaxBotix Ultrasonic Tank Sensor. Say goodbye to uncertainty and hello to control.

RangeTrack Software by MaxBotix displaying sample data to show ease of use and features

FREE Monitoring Software Available

For USB connected sensors, see our FREE Software, RangeTrack by MaxBotix for a seamless way to validating performance in your application.

(*Must select Specify Connection under main Connection drop down on Product Page then select USB Cabling Connection Option or reach out to us directly)

Learn More (Software Page)

Helpful Tank Information

This guide is a list of recommendations to help you implement a MaxBotix ultrasonic sensor in a tank. We cover a number of common implementation questions and provide guidance so that you can install your sensor with full confidence.

Implementation Guide

Your success story begins when you make the decision to invest in the MaxBotix Ultrasonic Tank Sensor. Enjoy the peace of mind that comes with precise tank level monitoring, knowing that you're in control, and your tanks are always at the perfect level.

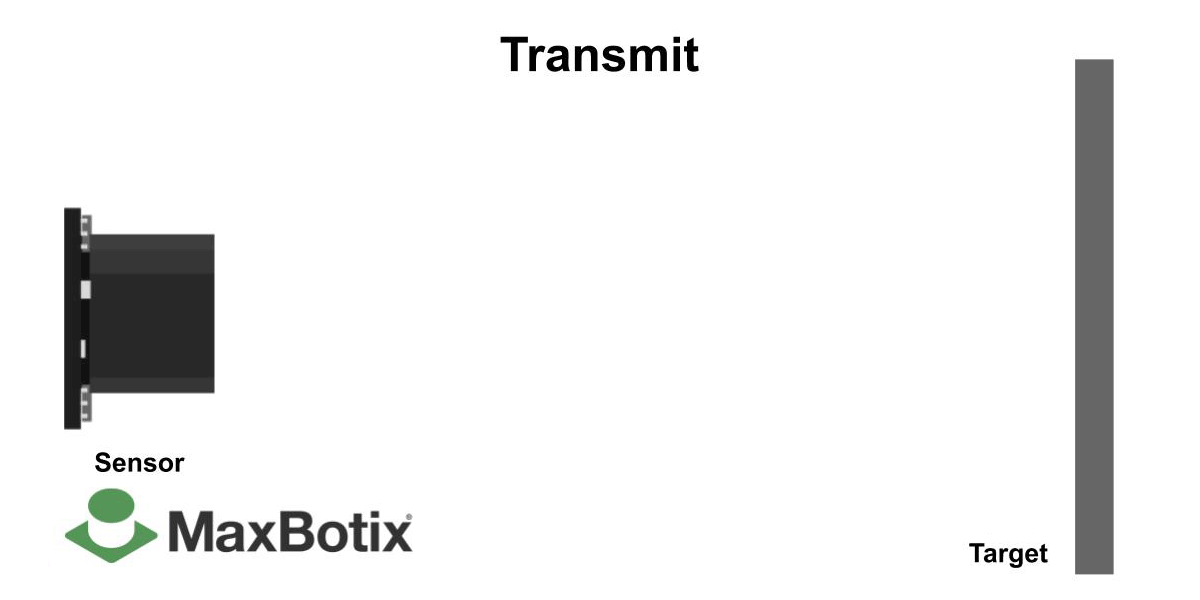

Ultrasonic Rangefinder sending out a sound wave, hitting a target, and returning the soundwave.

How Ultrasonic Sensors Work

Ultrasonic sensors work by sending out a sound wave at a frequency above the range of human hearing. The transducer of the sensor acts as a microphone to receive and a transmitter to send the ultrasonic sound. Our ultrasonic sensors, like many others, use a single transducer to send a pulse and to receive the echo. The sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse. Read more at this link.

Don't wait any longer. Take the first step towards a worry-free tank management experience. Upgrade to the MaxBotix Tank Sensor today and enjoy the confidence that comes with being in control of your tank levels. Your peace of mind is just a click away.

Schedule a meeting and receive a $75 credit on your first TankSensor purchase.

Schedule a meeting with an applications engineer and receive a $75 credit code upon completing the call. We're here to help you choose the right tank sensor for your needs.

BOOK A CALL*

Frequently Asked Questions

What is the range of the ultrasonic tank sensor?

The range of sensors varies depending on the specific model. The MB7850 and MB7851 offer a max range of 5,000mm. The MB7853 and MB7854 sensors offer a max range of 16,500mm.

What is the minimum range of the ultrasonic tank sensor?

The minimum range of sensors varies depending on the specific model. The MB7850 and MB7851 offer a minimum range of 50mm. The sensors will detect liquid and report 50mm from 0mm to 50mm.

The minimum range of the MB7853 is 300mm. The sensors will detect liquid and report 300mm from 0mm to 300mm.

How long will the tank sensor last?

The ultrasonic sensors sensor are designed for high reliability with an impressive MTBF over 200,000 hours.

Can I power the sensor with batteries?

Yes, the sensor has an average current draw between 1.6mA and 1.8mA. In very low power applications with infrequent readings, the sensors are typically powered off in-between range readings. Most properly designed IoT systems can get greater than 1 year of battery life with the above implementation. The wireless communication section of the system is normally the highest current draw of the system.

How long does it take for my order to ship?

A sensor ordered without cable will ship in 1 to 5 business days.

A sensor order with cable or other options may take up to 10 business days as the sensor might need to be made to order.

Quantities ordered over 50 units may have an increased lead time.

What is the operating temperature range for these sensors?

The operational temperature range is -40ºC to +65ºC (-40ºF to +149ºF).

Will the sensor work in a chemical environment?

MaxBotix has designed the sensor to work in many environments. The exposed materials of a properly mounted TankSensor™ are: Parylene coated Aluminum, ABS, & silicone rubber (VMQ). You can cross reference the materials for compatibility in your environment on our ultrasonic sensor chemical compatibility chart.

What is the teach feature on the sensor and how do I use it?

This feature is recommended to be used to store information on what the empty tank looks like. This is used to improve the reliability of short range readings.

You send a "T" or "t" command into the sensor to save a new calibration. Complete information on sending commands to the sensor is found on page 6 of the datasheet.

Can I use the tank sensor to measure solids?

The tank sensor is not recommended for measuring solids. We advise considering some of our other sensors that are better suited for solid material measurements.

Elevate your Liquid Level Monitoring

Ready to elevate your liquid level monitoring? Take the next step toward precision and reliability with MaxBotix Tank Sensor. Get started now and experience the future of tank monitoring!

MB7851 TankSensor

MB7851 TankSensor

This ultrasonic tank level sensor features a 1mm resolution with a 5-meter maximum range.  The sensor has the following outputs: RS232 & TTL Serial, analog voltage, and analog envelope.

$179.95

MB7850 TankSensor

MB7850 TankSensor

This ultrasonic tank level sensor features a 1cm resolution with a 5-meter maximum range.  The sensor has the following outputs: RS232 & TTL Serial, analog voltage, analog envelope.

$179.95

MB7853 TankSensor

MB7853 TankSensor

NEW! This ultrasonic tank level sensor features a 1mm resolution with a 16.5-meter maximum range and operates from 2.5V to 5V.  The sensor has the following outputs: RS232 & TTL Serial, analog voltage, analog envelope.

$194.95

MB7854 TankSensor

MB7854 TankSensor

NEW! This ultrasonic tank level sensor features a 1mm resolution with a 16.5-meter maximum range and operates from 5.5V to 40V.  The sensor has the following outputs: RS232 & TTL Serial, analog voltage, analog envelope.

$199.95

MB7851 TankSensor

MB7851 TankSensor

This ultrasonic tank level sensor features a 1mm resolution with a 5-meter maximum range.  The sensor has the following outputs: RS232 & TTL Serial, analog voltage, and analog envelope.

View Product

MB7850 TankSensor

MB7850 TankSensor

This ultrasonic tank level sensor features a 1cm resolution with a 5-meter maximum range.  The sensor has the following outputs: RS232 & TTL Serial, analog voltage, analog envelope.

View Product

MB7853 TankSensor

MB7853 TankSensor

NEW! This ultrasonic tank level sensor features a 1mm resolution with a 16.5-meter maximum range and operates from 2.5V to 5V.  The sensor has the following outputs: RS232 & TTL Serial, analog voltage, analog envelope.

View Product

MB7854 TankSensor

MB7854 TankSensor

NEW! This ultrasonic tank level sensor features a 1mm resolution with a 16.5-meter maximum range and operates from 5.5V to 40V.  The sensor has the following outputs: RS232 & TTL Serial, analog voltage, analog envelope.

View Product

BOOK A CALL*

*The $75 credit applies to the following part numbers: MB7850-BXX, MB7851-BXX, MB7853-BXX, and MB7854-BXX. To qualify, you must schedule and complete an appointment with MaxBotix. A coupon code will be provided after the call, valid for one online order. Limit one use per customer. Offer may end without notice. The coupon code expires 30 days after issuance and cannot be combined with other promotions or discounts.

Want more information? Contact Us
