MB1240 XL-MaxSonar-EZ4
MB1240 XL-MaxSonar-EZ4
Ranges from 20cm to 765cm with a 10Hz read rate. Narrowest detection field. Highest noise tolerance.
$39.95
Couldn't load pickup availability
Discounted pricing is shown in the cart.
| Quantity | 5-9 | 10-24 | 25-49 | 50-99 | 100+ |
| Discount | 5% | 10% | 15% | 20% | 25% |
Collapsible content
Specs
- Resolution of 1 cm
- 10Hz reading rate
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
- Virtually no dead zone, objects closer than 20 cm range as 20 cm
- Operates from 3.3-5.5V
- Low 3.4mA average current requirement
- Small, lightweight module
- Designed for easy integration into your project or product
- Operational Temperature from 0˚C to +65˚C (32˚F to +149˚F)
- Real-time auto sensitivity adjustments (voltage and acoustic or electrical noise)
- Firmware filtering for better noise tolerance and clutter rejection
- 200,000+ Hours Mean Time Between Failure
- Narrowest beam of the XL-MaxSonar-EZ products
- Highest noise tolerance of the XL-MaxSonar-EZ products
- Great for large target applications
- Maximum range of 765 cm (300 inches)
- Hardware gain of 250
- Short range, narrow detection zone for small targets
Description
Features of the MB1240, XL-MaxSonar-EZ4, include centimeter resolution, the highest noise tolerance and narrowest beam width of any sensor in the XL‑MaxSonar‑EZ sensor line, short to long distance detection, range information from 20cm to 765cm, a 10Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.
The MB1240 is a great choice for applications where only larger objects need to be detected.

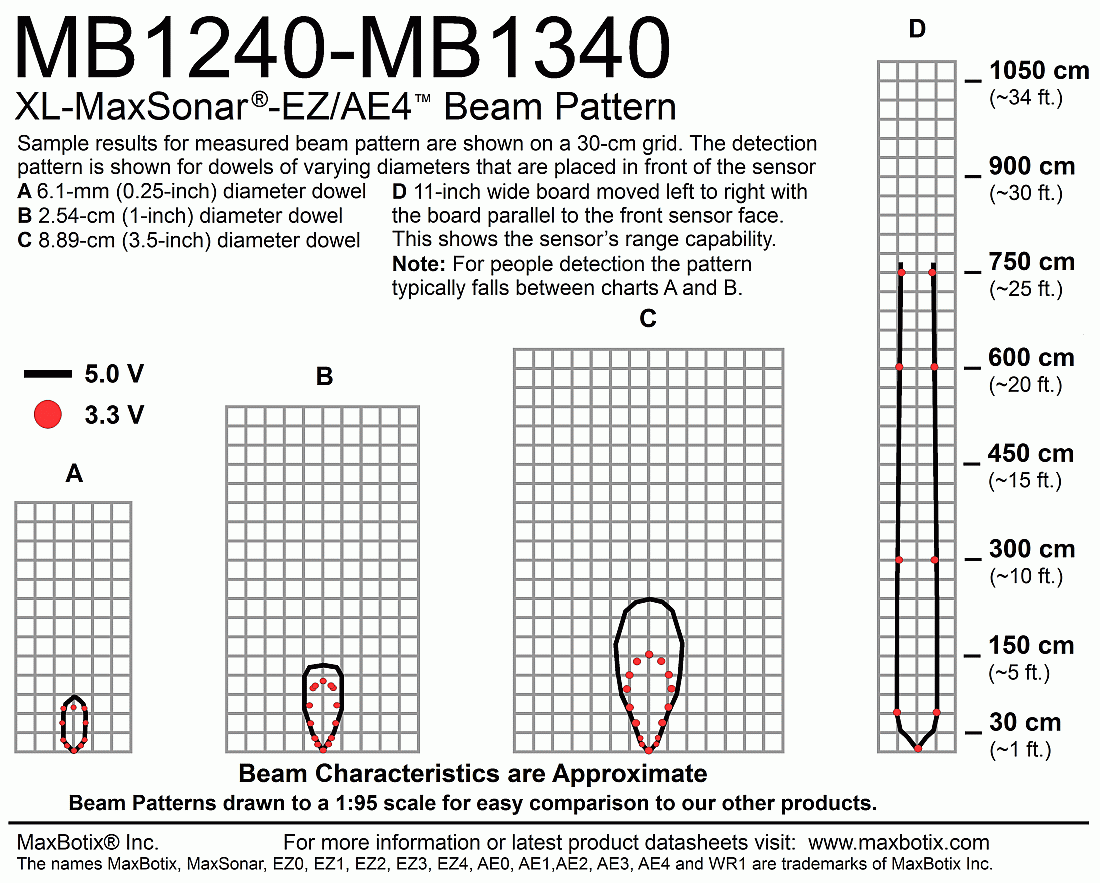

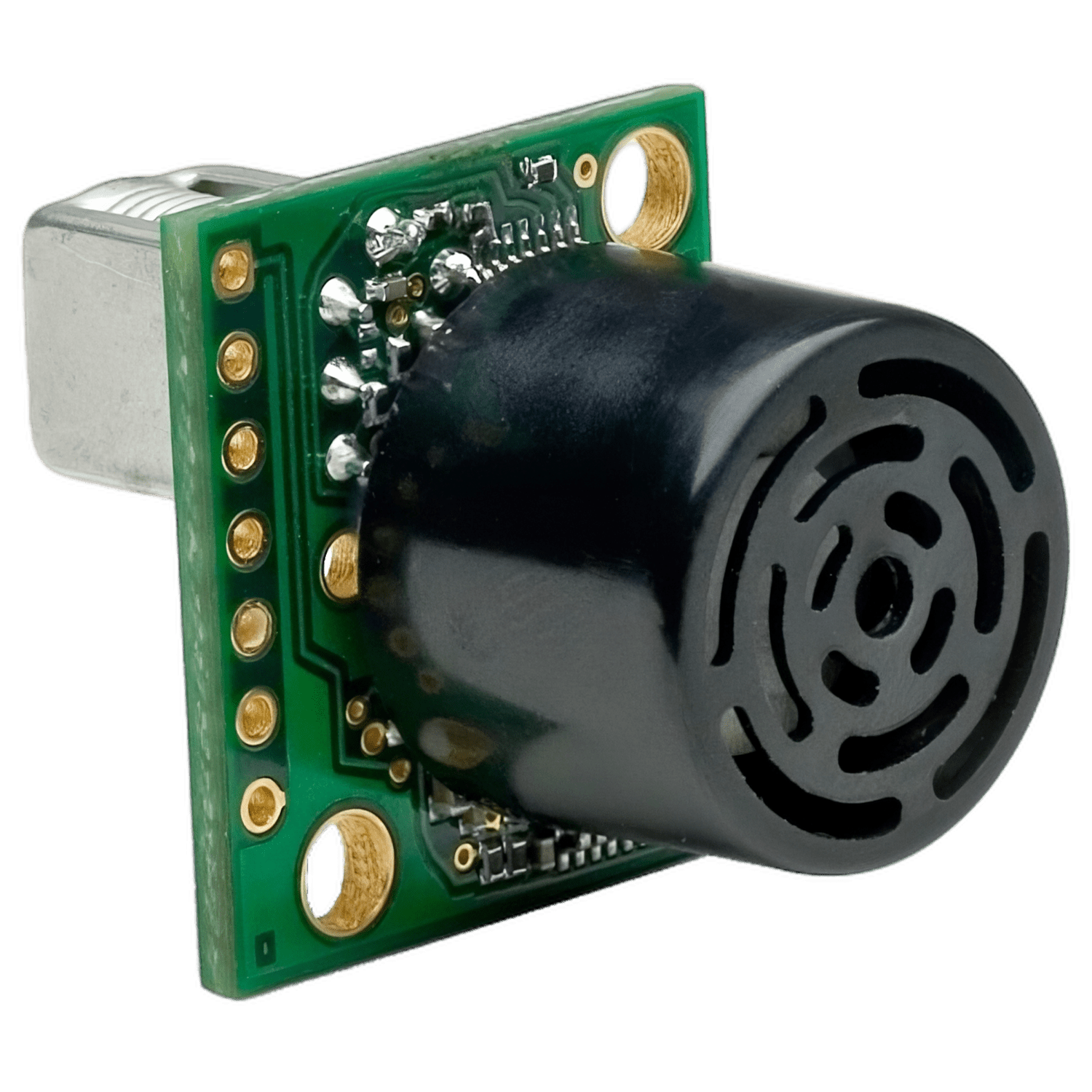

The MB1240 from the XL-MaxSonar-EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.
