MB1020 LV-MaxSonar-EZ2
MB1020 LV-MaxSonar-EZ2
Ranges from 6 inches to 254 inches with a 20Hz read rate. Mid-width detection field. Balance between sensitivity and side object detection.
$29.95
Couldn't load pickup availability
Discounted pricing is shown in the cart.
| Quantity | 5-9 | 10-24 | 25-49 | 50-99 | 100+ |
| Discount | 5% | 10% | 15% | 20% | 25% |
Collapsible content
Specs
- Resolution of 1 inch
- 20Hz reading rate
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Maximum Range of 254 inches (645 cm)
- Operates from 2.5-5.5V
- Low 2.0mA average current requirement
- Small, lightweight module
- Designed for easy integration into your project or product
- Narrower beam width than the LV-MaxSonar-EZ1
Description
Features of the MB1020, LV-MaxSonar-EZ2, include one-inch resolution, an excellent compromise between sensitivity and side object rejection, range information from 6 inches to 254 inches, a 20Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.
This makes the MB1020 is a great choice for applications that require decreased sensitivity to side objects than the MB1010.

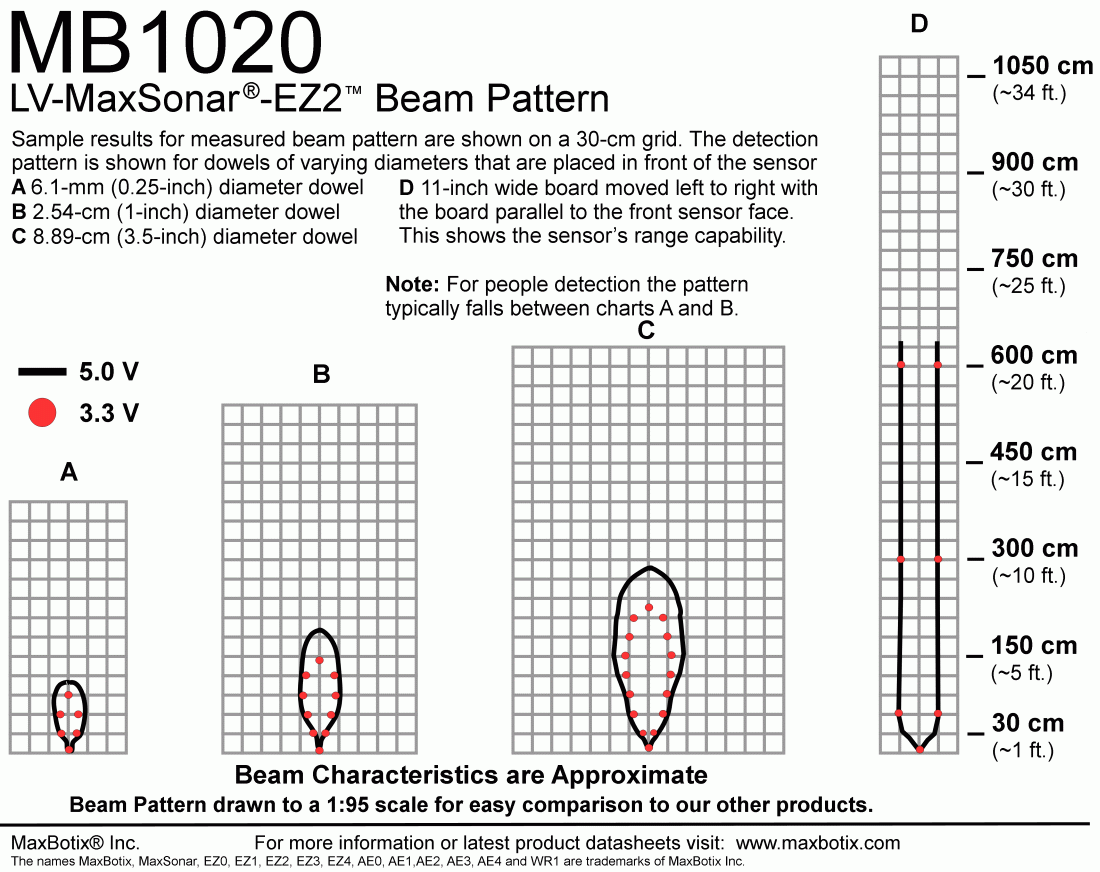

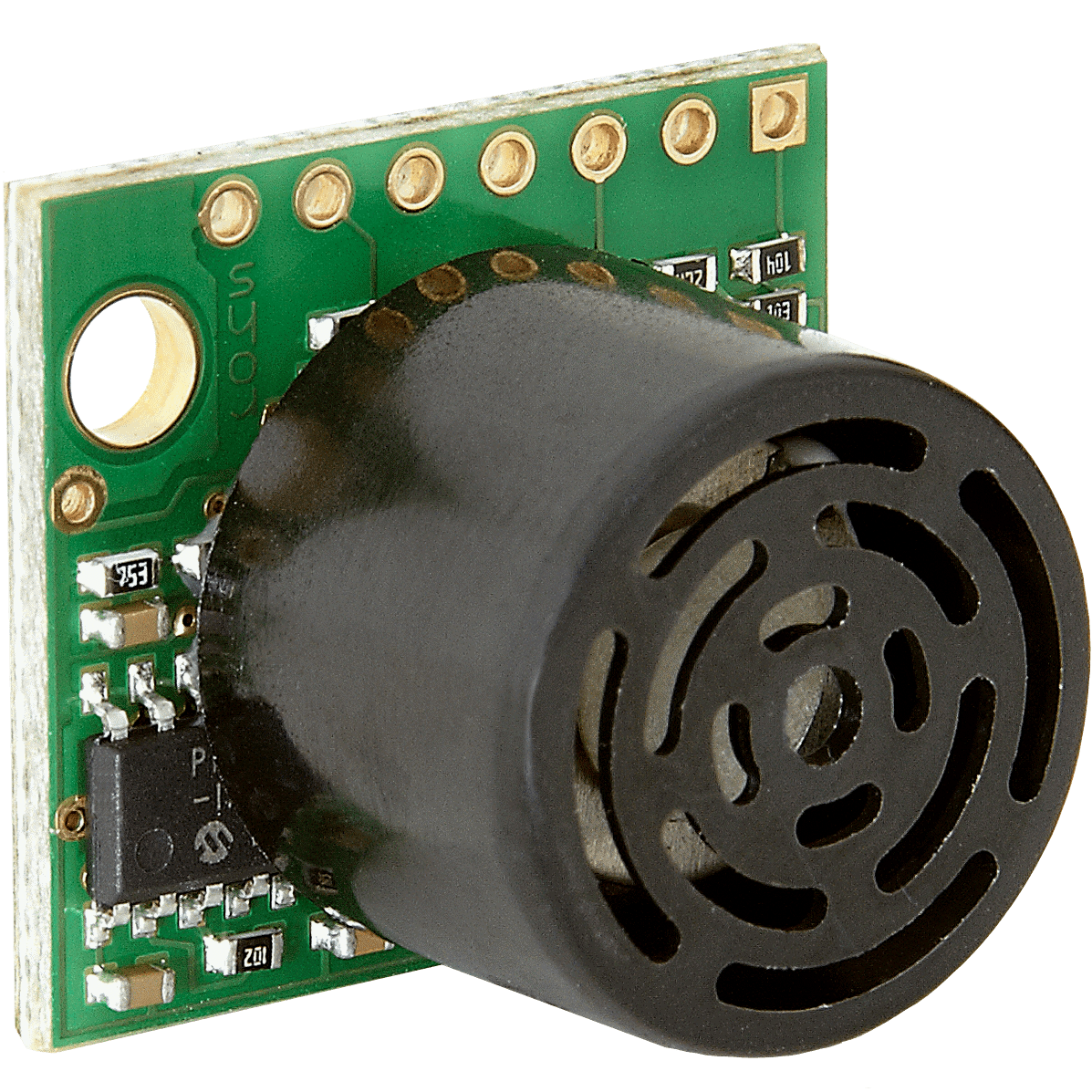

The MB1020 from the LV-MaxSonar-EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.
In addition, the MB1020 learns the ringdown pattern when commanded to start ranging. This helps the sensor to learn the environment and can help the sensor ignore obstacles that are present at power-up.
Documentation and CAD files
Documents
| LV-MaxSonar-EZ Datasheet | Chaining Application Guide | LV-MaxSonar-EZ Quick Start Guide | RoHS Declaration of Conformity | CE Declaration of Conformity |
Product 3D Models
LV-EZ CAD Files
Software Downloads
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB1020 LV-MaxSonar-EZ2
No PCNs on Record
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
MB7986 Voltage Regulator
View AccessoryThe voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.
