MB1024 LV-ProxSonar-EZ2

MB1024 LV-ProxSonar-EZ2

Ranges from 6 inches to 254 inches. 3-foot detection zone for proximity information with a ~2.5-second acquire time and ~1.5-second release time.

Regular price From
$29.95
Regular price Sale price $29.95
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Specs

  • Resolution of 1 inch
  • ~2.5 second target acquire time*
  • ~1.5 second target release time*
  • Automatic multi-sensor operation
  • People sensor
  • Maximum reported range of 254 inches (645 cm)

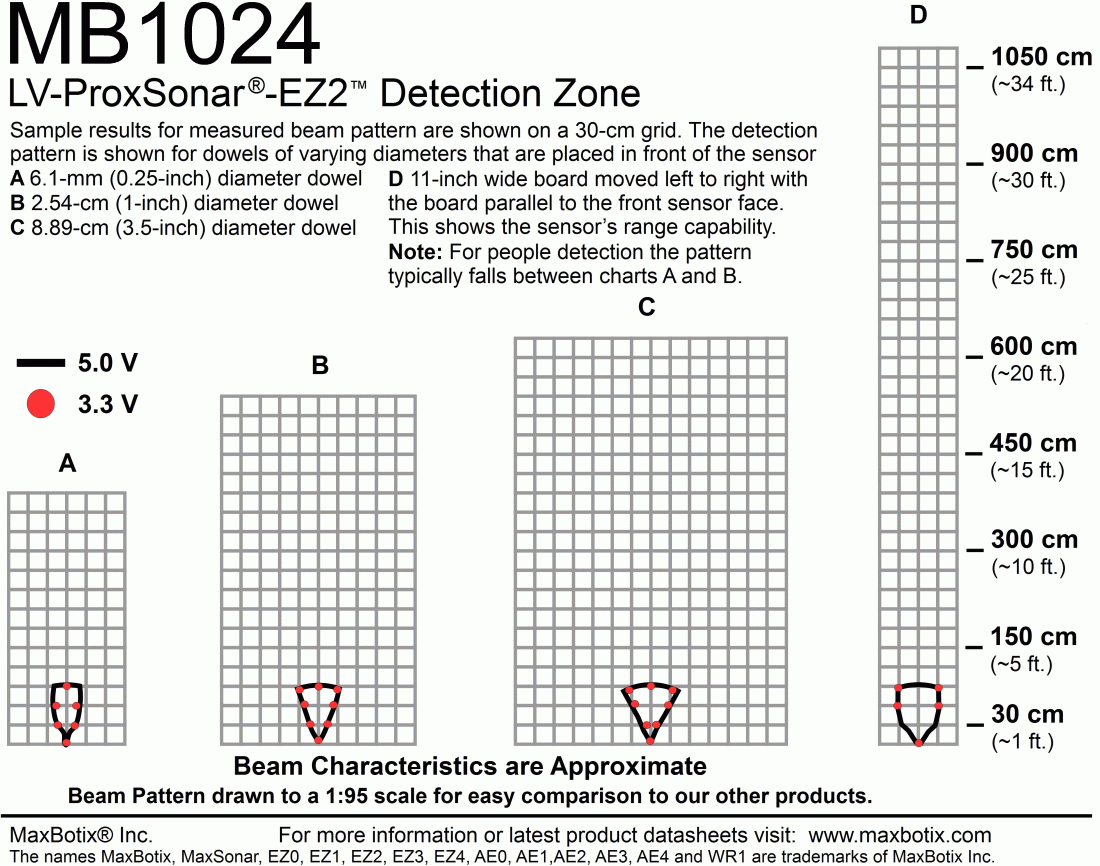

  • ~3-foot proximity detection zone (36 inches or 91 cm)
  • Run up to 10+ sensors in the same environment
  • Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from sensor outputs: Serial and Pulse Width
  • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
  • Operates from 2.5-5.5V
  • Low 2.0mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • 3 foot detection zone

*Custom times available for a nominal NRE fee

Description

Features of the MB1024, ProxSonar-EZ2, include one-inch resolution, both proximity and range information for the nearest detectable target, and various output options: high/low logic level and RS232 serial.

The LV-ProxSonar‑EZ line is designed to detect people or obstacles that enter within a calibrated detection zone. The LV-ProxSonar-EZ proximity sensors report when a person or other detectable target enters the detection zone. The target is released after leaving the LV-ProxSonar-EZ's detection zone.

The MB1024 has a detection zone of ~3 feet. The MB1024 will allow for 10+ simultaneous sensors depending on sensor mounting and environment.

Software Downloads

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB1024-00X

Product Change Notifications Associated with MB1024 LV-ProxSonar-EZ2

No PCNs on Record
