MB7940 EZ Mounting Hardware Kit
MB7940 EZ Mounting Hardware Kit
The MB7940 EZ Mounting Hardware Kit is for use with our EZ sensors without housing options. The included hardware gives customers easy access for through-hole mounting.

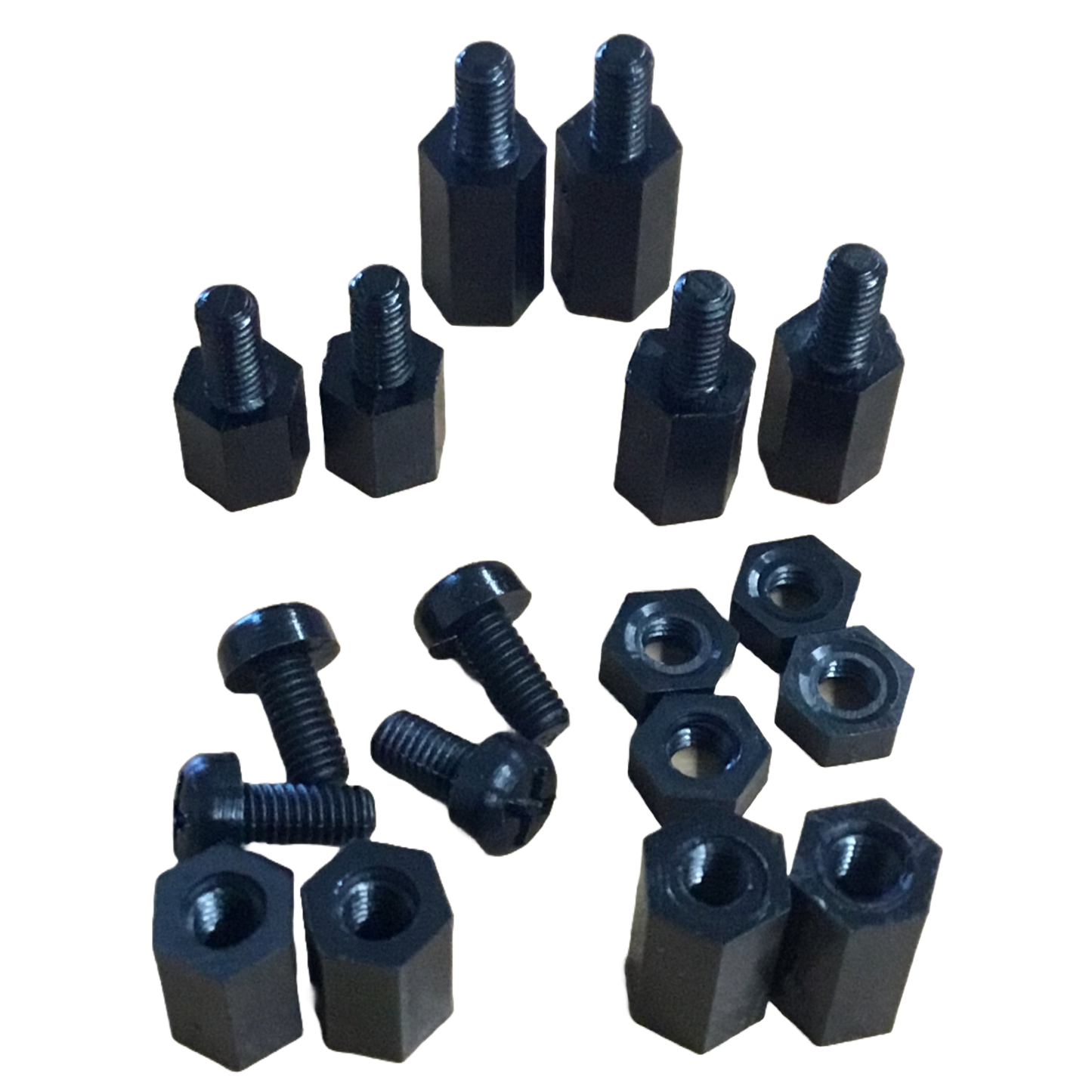

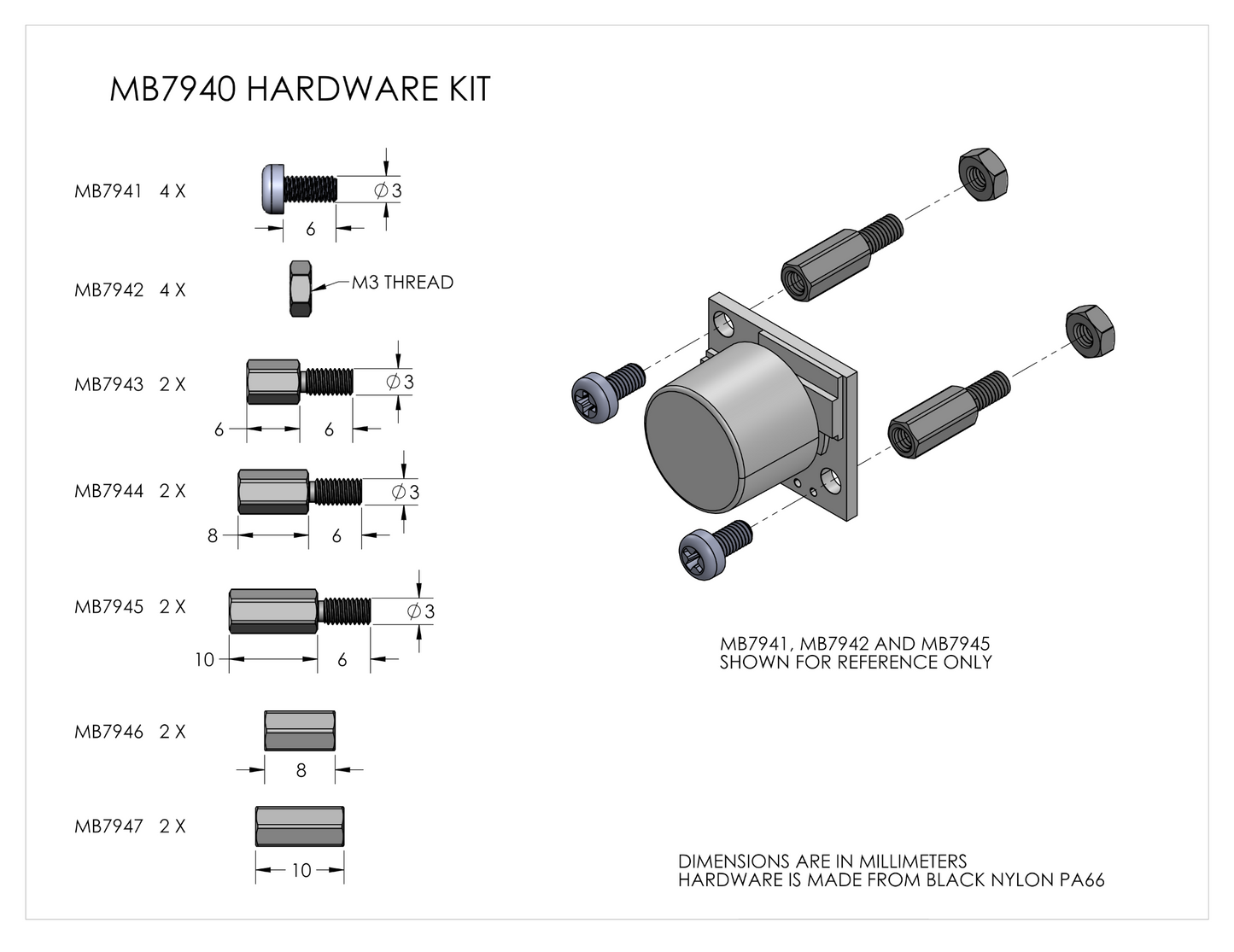

The kit consists of:
4qty M3 x 6 Screws
4qty M3 Nuts
2qty M3 x 6 + 6 Male/Female Standoffs
2qty M3 x 8 + 6 Male/Female Standoffs
2qty M3 x 10 + 6 Male/Female Standoffs
2qty M3 x 8 Male/Female Standoffs
2qty M3 x 10 Male/Female Standoffs
*Sensors sold separately.
$8.99
Couldn't load pickup availability
Collapsible content
Description
The MB7940 EZ Mounting Hardware Kit is for use with our EZ sensors without housing options. The included hardware gives customers easy access for through-hole mounting. The kit consists of: 4qty M3 x 6 Screws 4qty M3 Nuts 2qty M3 x 6 + 6 Male/Female Standoffs 2qty M3 x 8 + 6 Male/Female Standoffs 2qty M3 x 10 + 6 Male/Female Standoffs 2qty M3 x 8 Male/Female Standoffs 2qty M3 x 10 Male/Female Standoffs
Specs
The kit consists of:
Documentation and CAD files
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB7940 EZ Mounting Hardware Kit
No PCNs on Record
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
MB7986 Voltage Regulator
View AccessoryThe voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.
