MB1060 LV-MaxSonar (5 Pack Sampler)
MB1060 LV-MaxSonar (5 Pack Sampler)
Contains one of each of the LV-MaxSonar-EZ sensors: MB1000, MB1010, MB1020, MB1030 & MB1040.
$127.75
Couldn't load pickup availability
Discounted pricing is shown in the cart.
| Quantity | 5-9 | 10-24 | 25-49 | 50-99 | 100+ |
| Discount | 5% | 10% | 15% | 20% | 25% |
Collapsible content
Specs
- Resolution of 1 inch
- 20Hz reading rate
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Maximum Range of 254 inches (645 cm)
- Operates from 2.5-5.5V
- Low 2.0mA average current requirement
- Small, lightweight module
- Designed for easy integration into your project or product

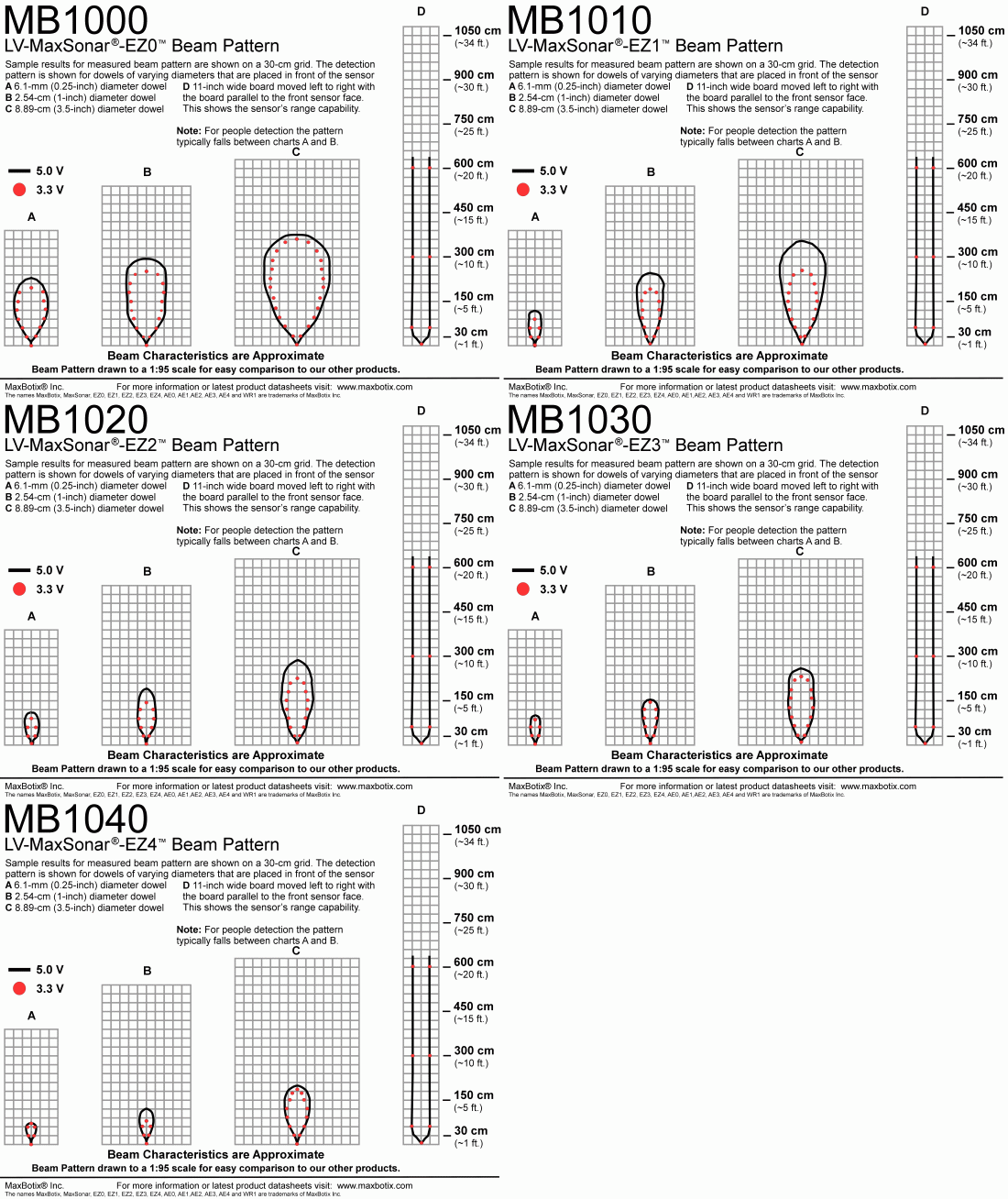

- Varied beam patterns; select the best sensor for your application
Description
When you purchase the MB1060 LV-MaxSonar-EZ 5 Pack Sampler, you receive one of each of the LV-MaxSonar-EZ sensors (MB1000, MB1010, MB1020, MB1030, MB1040).
This sampler pack is great for finding the LV-MaxSonar-EZ sensor that matches the user's application.
Documentation and CAD files
Documents
| LV-MaxSonar-EZ Datasheet | Chaining Application Guide | LV-MaxSonar-EZ Quick Start Guide | RoHS Declaration of Conformity | CE Declaration of Conformity |
Product 3D Models
LV-EZ CAD Files
Software Downloads
None available
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB1060 LV-MaxSonar (5 Pack Sampler)
No PCNs on Record
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
MB7986 Voltage Regulator
View AccessoryThe voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.
