MB7072 XL-MaxSonar-WRA1

MB7072 XL-MaxSonar-WRA1

NEW Easy Integration with Effortless USB Connection and RangeTrack Software (requires USB connection)

Ranges from 20cm to 765cm with a 10Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target. Uses a stability filter.

Regular price From
$99.95
Regular price Sale price $99.95
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Specs

  • Resolution of 1 cm
  • 10Hz read rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 select sensor outputs: Analog Voltage, Serial, Analog Envelope
  • Operates from 3.0-5.5V
  • Low 3.4mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 200,000+ Hours Mean Time Between Failure
  • Weather Resistant (IP67), optional Chemical Resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4″ National Pipe Thread Straight)
  • Additional stability filter rejects occasional anomalous readings
  • Maximum range of 765 cm (300 inches)
  • Long range, narrow detection zone

Description

Features of the weather-resistant MB7072, XL-MaxSonar-WRA1, include centimeter resolution, short to long-distance detection, range information from 20cm to 765cm for the nearest detectable target, a 10Hz read rate, and various output options: analog envelope, analog voltage, and RS232 serial.

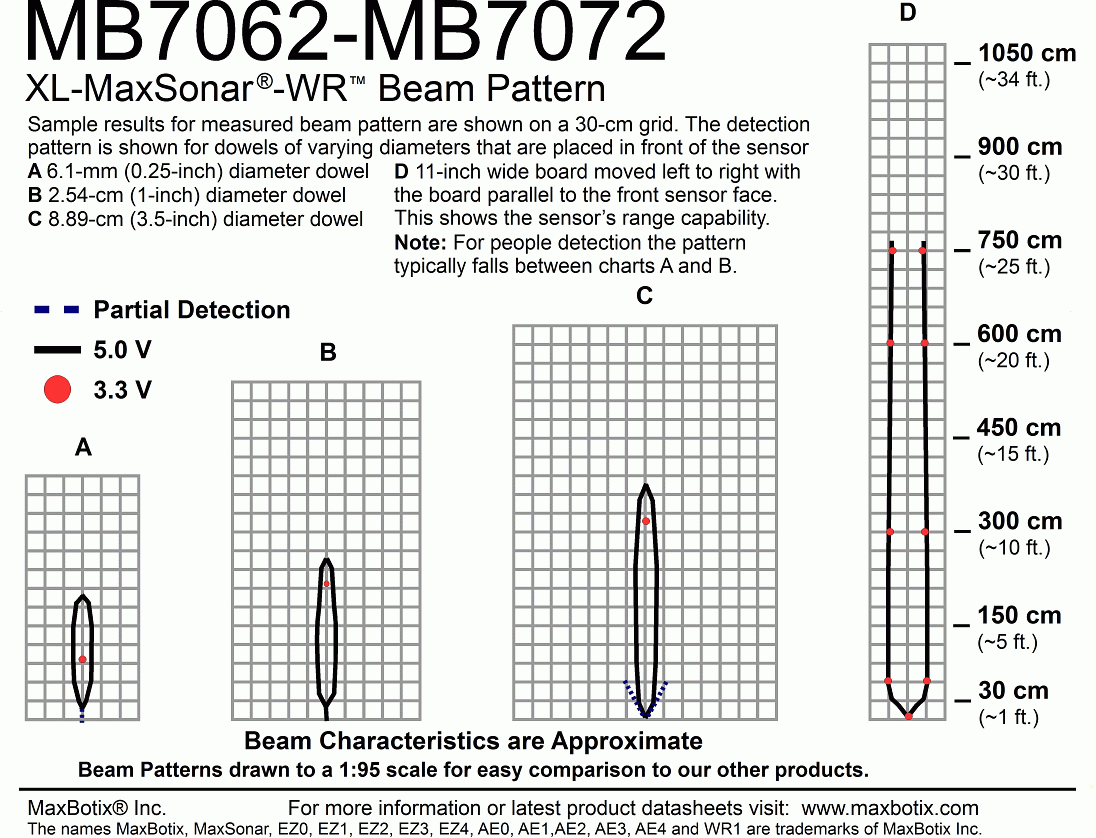

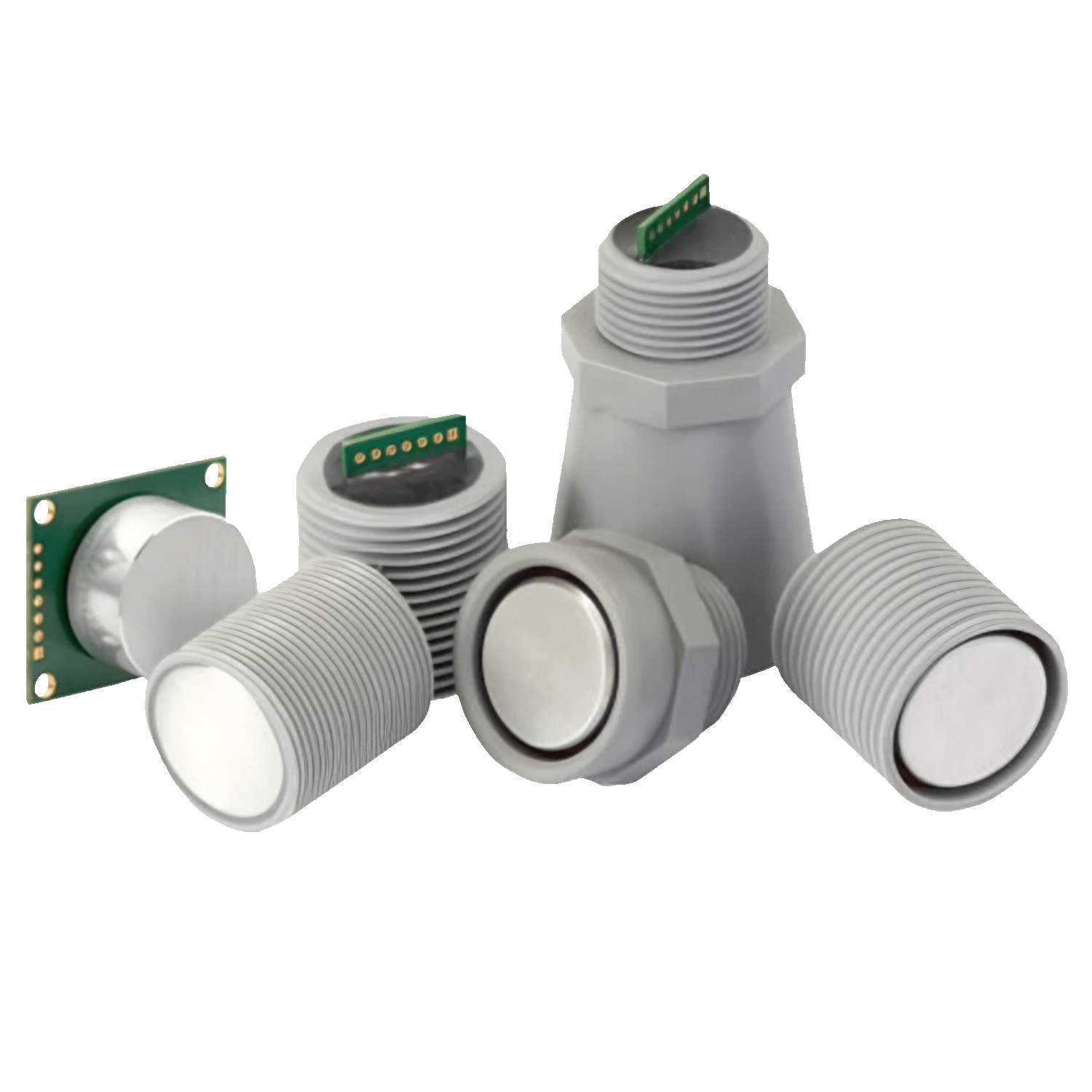

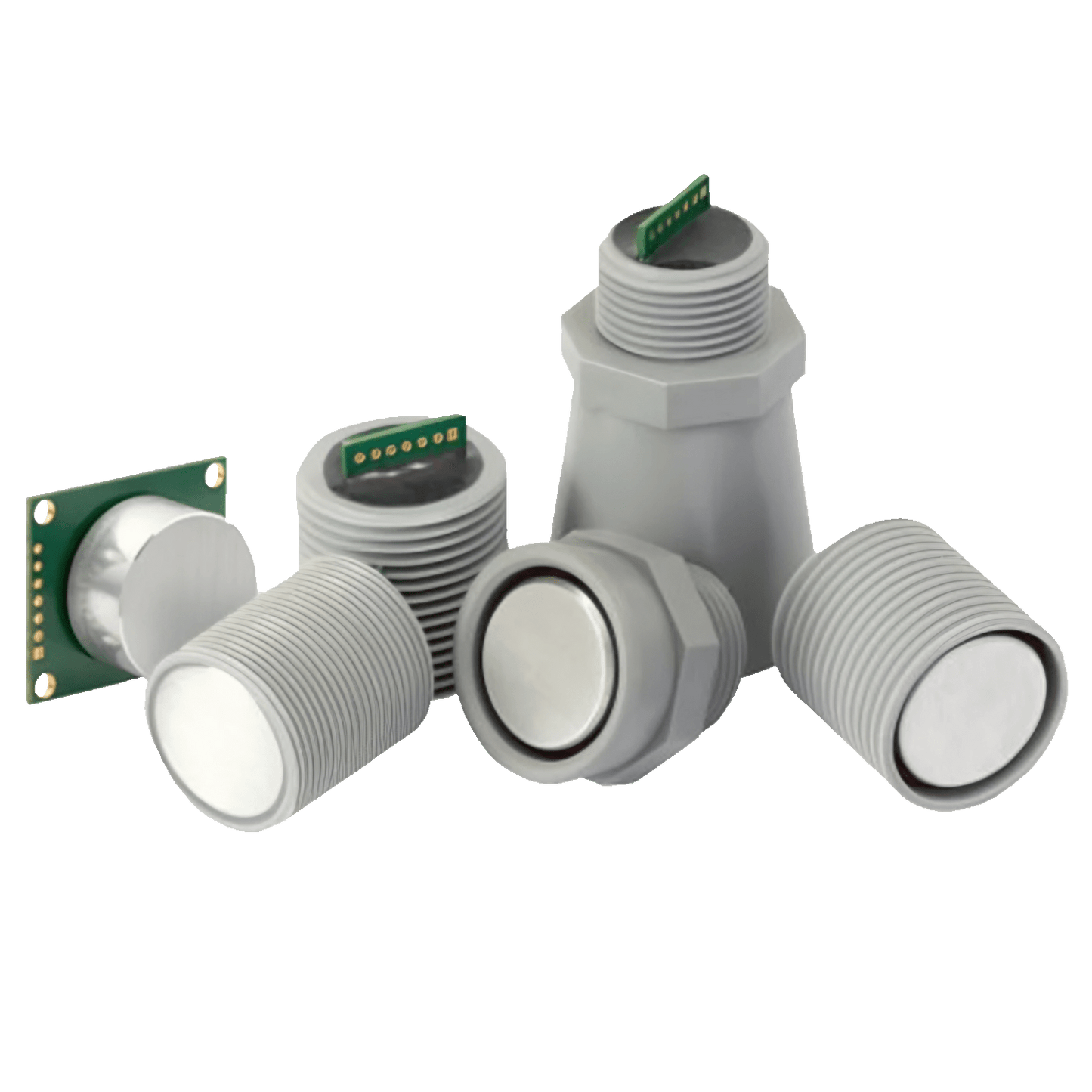

The MB7072 from the XL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).

The XL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

The MB7072 is designed with a stability filter to help prevent sudden large changes in range readings.

In addition, the MB7072 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.


Variations on this sensor model

MB7062 is the pulse-width version of this sensor.
MB7070 is the base level version of this sensor.


Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.
