Ultrasonic Sensors Product Catalog

MaxBotix ultrasonic sensors offer accuracy, industrial-grade durability, advanced features, and waterproof IP67 or IP68-rated protection to redefine distance measurement technology.

  • Shop products using filtering

    You can find the sensor you need by using our filters to identify the right product for you application.

    Shop All Products

  • Shop by product lines

    You can find the sensor you need by shopping our expandable product lines page.

    Shop by Product Lines

  • Not sure which sensor

    We are happy to help select the right sensor with you. Please contact us and we'll work together.

    Contact Us

4-20SC‑MaxSonar‑WR Products

The IP67-rated 4-20SC-MaxSonar-WR line reduces the impact of condensation and frost when ran continuously in closed or high-moisture environments. This sensor line offers the industry standard 4-20mA or 20-4mA current outputs. Additionally, these ultrasonic rangefinders offer 1.6mm resolution, 10-32VDC operation, a narrow beam pattern, high power output, noise rejection, automatic calibration, and temperature compensation. Please see the datasheet for full specifications.
Intended for applications requiring the resistance of condensation in high moisture environments, our self-cleaning function is designed to run continuously in order for the self-cleaning feature to be active.
  • MB7789 4-20SC-MaxSonar-WRMI - MaxBotix- MB7789-101 - Ultrasonic Sensors

    MB7789 4-20SC-MaxSonar-WRMI

    Sold out

    MB7789 4-20SC-MaxSonar-WRMI

    Ranges from 500mm to 5000mm with 0.6Hz read rate. 20mA minimum range and 4mA maximum range. Reports range to largest target.

    From $273.37 USD
    From $273.37 USD
    Sold out
  • MB7760 4-20SC-MaxSonar-WR - MaxBotix- MB7760-101 - Ultrasonic Sensors

    MB7760 4-20SC-MaxSonar-WR

    Sold out

    MB7760 4-20SC-MaxSonar-WR

    Ranges from 500mm to 5000mm with 0.6Hz read rate. 4mA minimum range and 20mA maximum range. Reports range to closest target.

    From $273.37 USD
    From $273.37 USD
    Sold out
  • MB7780 4-20SC-MaxSonar-WRI - MaxBotix- MB7780-101 - Ultrasonic Sensors

    MB7780 4-20SC-MaxSonar-WRI

    Sold out

    MB7780 4-20SC-MaxSonar-WRI

    Ranges from 500mm to 5000mm with 0.6Hz read rate. 20mA minimum range and 4mA maximum range. Reports range to closest target.

    From $273.37 USD
    From $273.37 USD
    Sold out

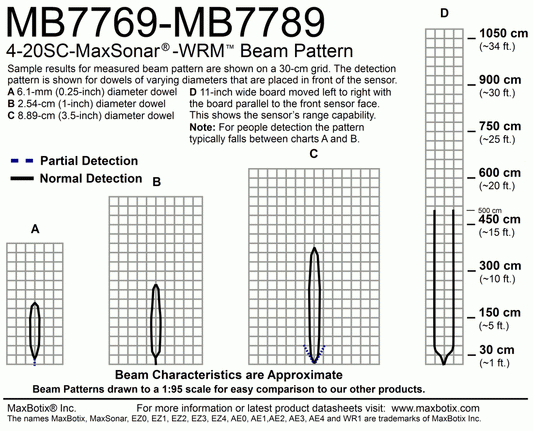

  • MB7769 4-20SC-MaxSonar-WRM - MaxBotix- MB7769-101 - Ultrasonic Sensors

    MB7769 4-20SC-MaxSonar-WRM

    Sold out

    MB7769 4-20SC-MaxSonar-WRM

    Ranges from 500mm to 5000mm with 0.6Hz read rate. 4mA minimum range and 20mA maximum range. Reports range to largest target.

    From $273.37 USD
    From $273.37 USD
    Sold out
