MB7380 HRXL-MaxSonar-WRT

MB7380 HRXL-MaxSonar-WRT

SKU:MB7380-100

Ranges from 300mm to 5000mm with a 7.5Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to closest target.

Regular price $109.95 USD
Regular price Sale price $109.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Description

Features of the weather-resistant MB7380, HRXL-MaxSonar-WRT, include millimeter resolution, short to long-distance detection, range information from 300mm to 5000mm for the nearest detectable target, a 7.5Hz read rate, and various output options: pulse-width, analog voltage, and TTL serial.

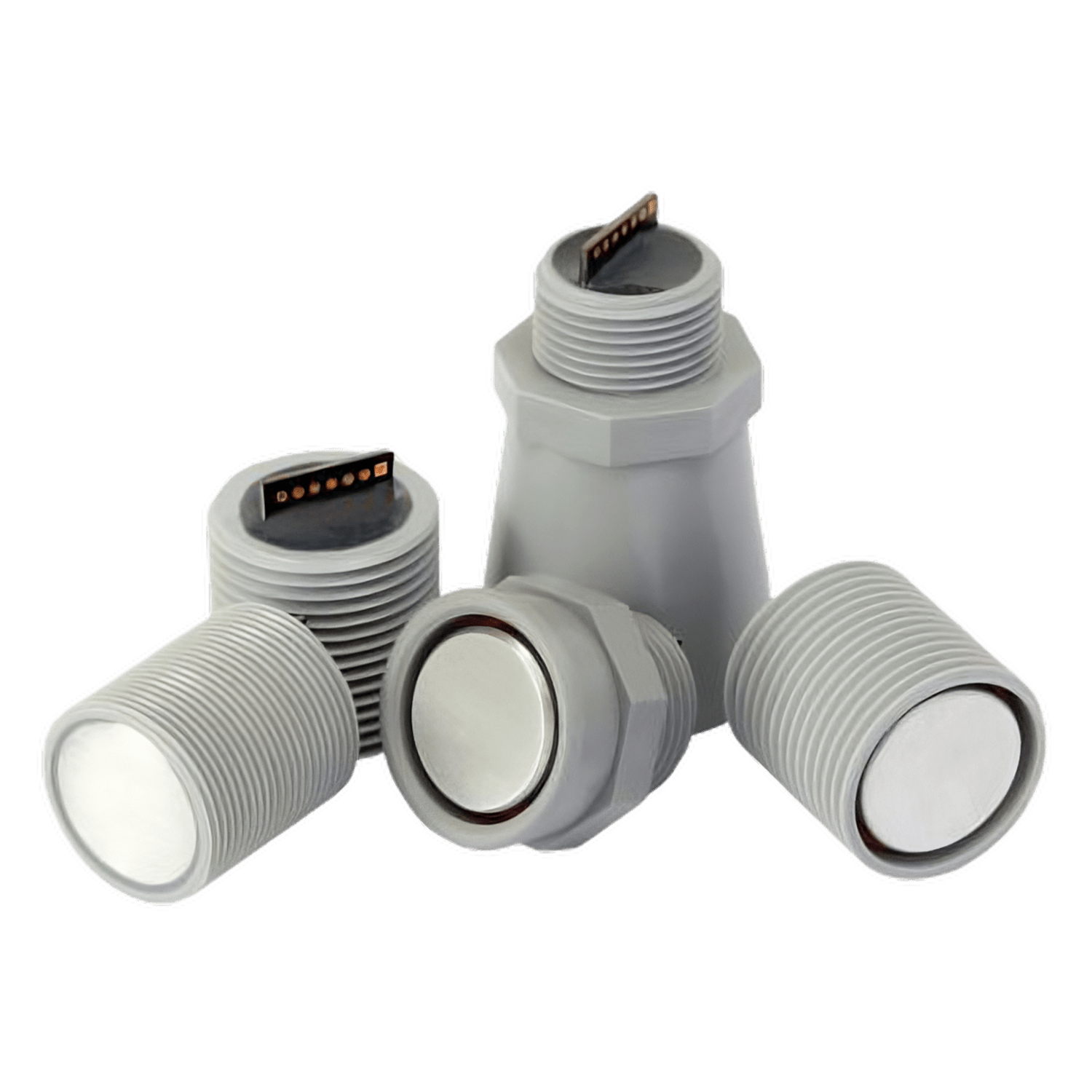

The MB7380 from the HRXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).

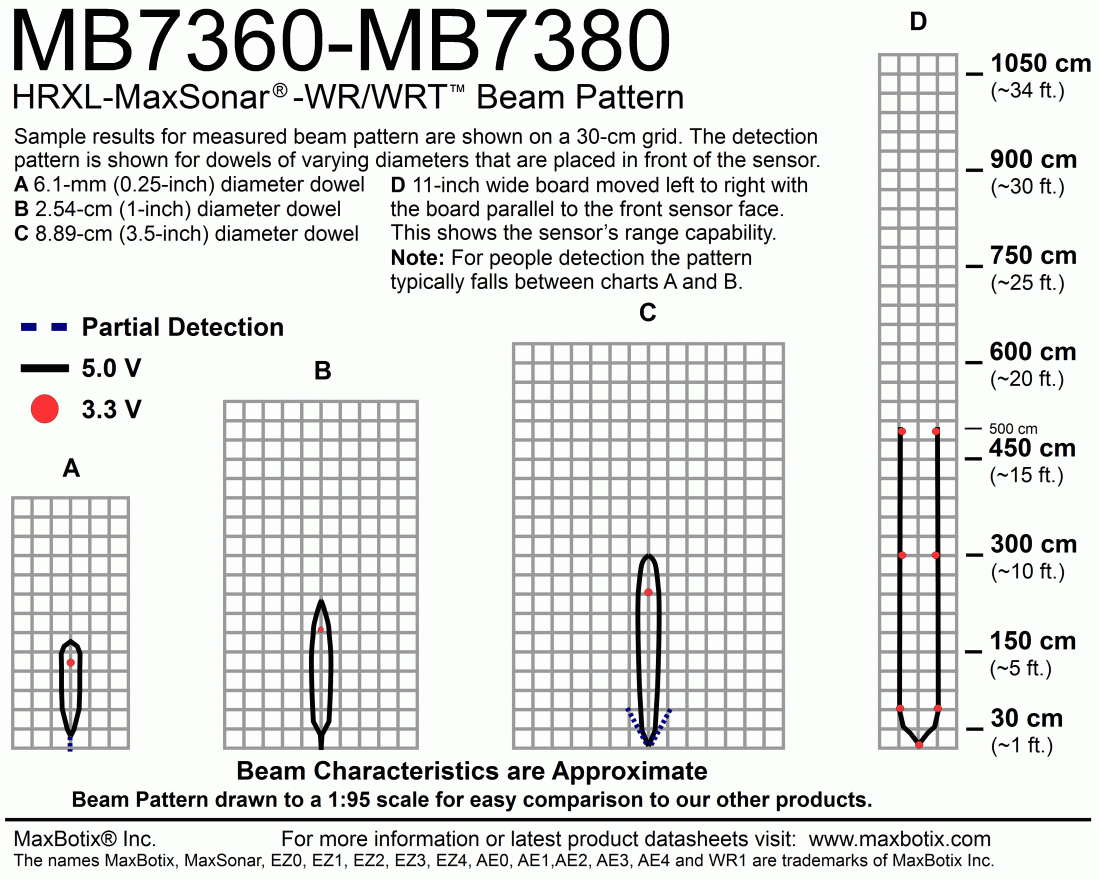

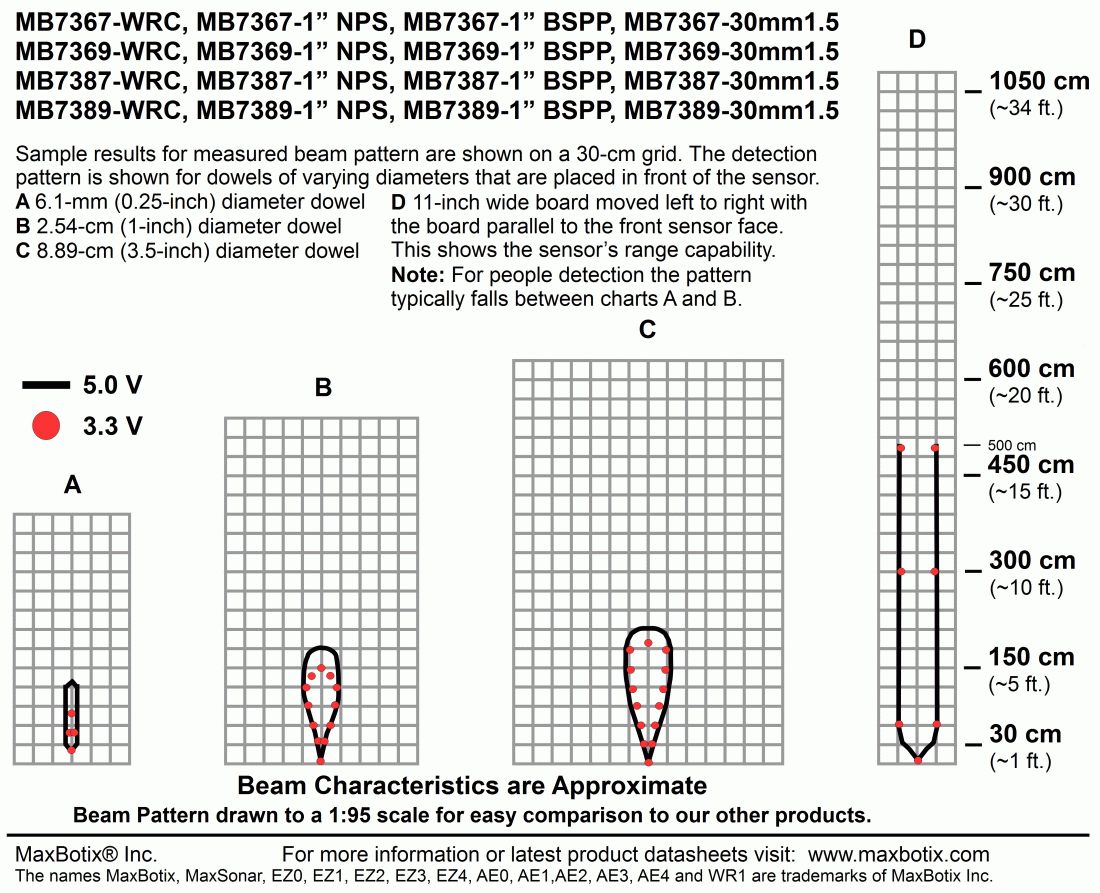

The HRXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

In addition, the MB7380 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.


Variations on this sensor model

MB7360 is the RS232 version of this sensor.
MB7386 is the 10-meter version of this sensor.


Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.

Specs

  • Resolution of 1-mm
  • 7.5Hz read rate
  • Internal temperature compensation
  • 42kHz ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 30cm typically range as 30cm
  • Operates from 2.7-5.5V
  • Low 2.9mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational temperature -40°C to +65°C (-40°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, and ambient noise)
  • Firmware filtering for excellent noise tolerance and clutter rejection
  • Weather resistant (IP67), optional chemical resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
  • Long, narrow detection zone
  • TTL Serial Output

Documentation and CAD files

Documents


Chemical Compatibility

Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.

Email: techsupport@maxbotix.com

Product 3D Models

100 Housing (Full Horn Housing)

200 Housing (Compact Horn Housing)

500 Housing (1″ BSPP Housing)

600 Housing (1″ NPS Housing)

700 Housing (30mm 1.5 Housing)

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB7380-100
MB7380-10A
MB7380-110
MB7380-11A
MB7380-120
MB7380-12A
MB7380-130
MB7380-13A
MB7380-200
MB7380-20A
MB7380-210
MB7380-21A
MB7380-220
MB7380-22A
MB7380-230
MB7380-23A
MB7380-500
MB7380-50A
MB7380-510
MB7380-51A
MB7380-520
MB7380-52A
MB7380-530
MB7380-53A
MB7380-600
MB7380-60A
MB7380-610
MB7380-61A
MB7380-620
MB7380-62A
MB7380-630
MB7380-63A
MB7380-700
MB7380-70A
MB7380-710
MB7380-71A
MB7380-720
MB7380-72A
MB7380-730
MB7380-73A

Product Change Notifications Associated with MB7380 HRXL-MaxSonar-WRT

PCN1102

MaxBotix is changing its manufacturing process for the F-Option.  The method of creating an F-Option part was changed to improve the manufacturability and decrease lead times for F-Option parts

PCN1200

The color of any exposed epoxy will be black or gray, rather than only gray.
