Snow Depth Monitoring with Ultrasonic Sensors: A Complete Guide
Why monitoring snow matters
Snowpack serves as a natural reservoir, storing winter precipitation and releasing meltwater during spring and summer. In mountain and cold‑region watersheds, accurate snow‑depth measurements are essential for forecasting streamflow, allocating water for agriculture and hydropower, scheduling reservoir releases and assessing ecological conditions. Snowpack information also underpins avalanche forecasting, road maintenance and climate research. Traditional manual measurements using rulers, snow boards and snow pillows provide only periodic snapshots and can be hazardous or impractical in remote terrain. Automated ultrasonic sensors address these challenges by delivering continuous, non‑contact snow‑depth data, helping scientists and resource managers understand snow dynamics across space and time.
Challenges of manual surveys and other sensors
Manual snow surveys involve visiting measurement sites, inserting rulers into snow and averaging multiple readings to estimate depth. These surveys occur daily or less frequently and may miss rapid changes caused by storms, drifting or melting. Snow pillows and other pressure‑based devices estimate snow‑water equivalent by measuring weight but require antifreeze fluids, periodic maintenance and may be prone to bridging or ice layers. Optical or laser distance sensors offer high precision but are costly and consume more power. Cameras provide visual information but cannot quantify depth. To provide continuous, quantitative measurements in remote areas, sensors must be affordable, low‑power and capable of autonomous operation.
How to measure snowpack level and snow depth using ultrasonic sensors
An ultrasonic snow‑depth sensor functions like a water‑level sensor: it transmits a burst of high‑frequency sound toward the ground and measures the time until the echo returns from the snow surface. As snow accumulates, the distance between the sensor and the surface decreases. The instrument converts changes in travel time into snow depth using the speed of sound in air, which varies with temperature. Many sensors include temperature probes or compensation algorithms to correct for air‑temperature effects.

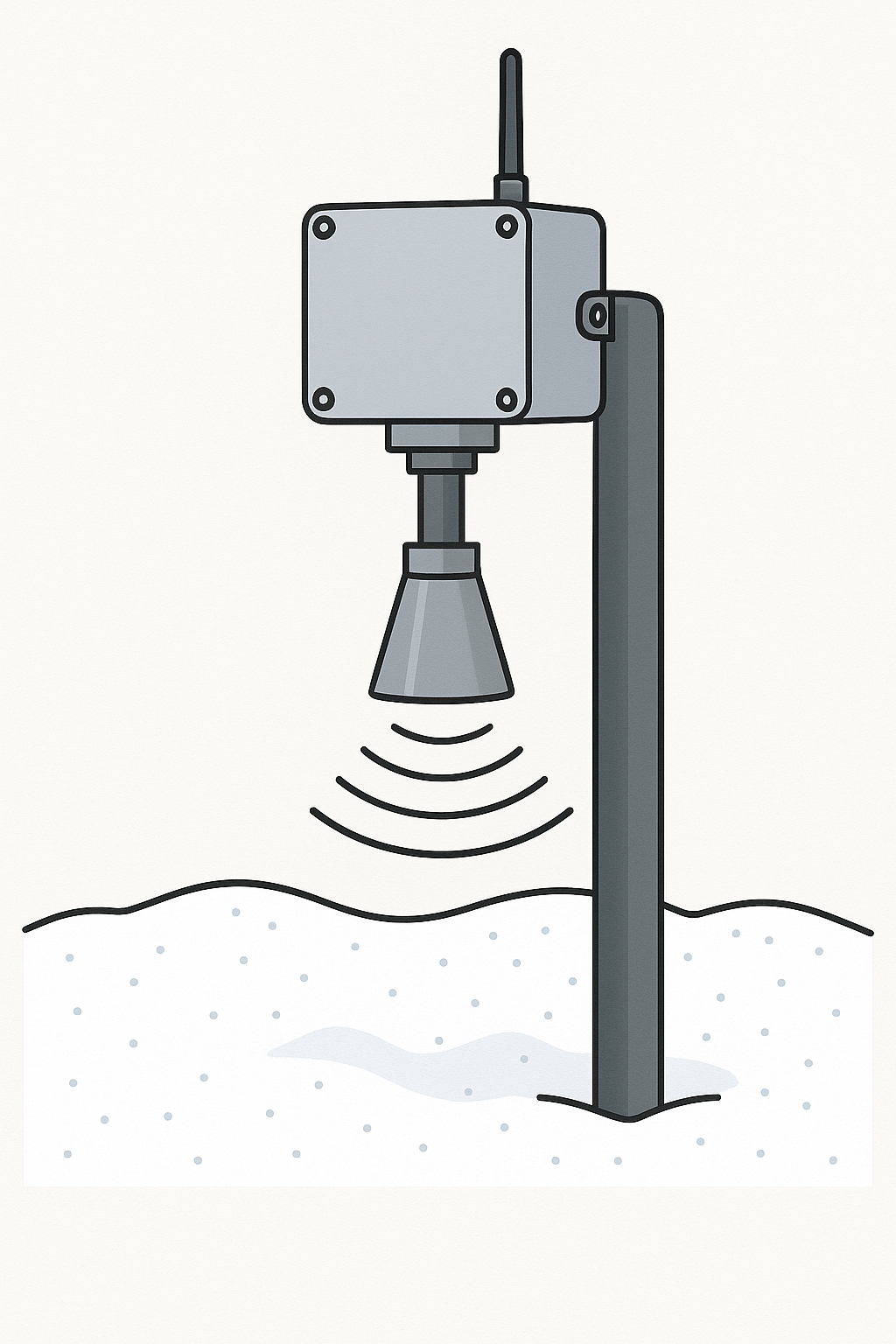

Figure 1 - An illustration of an ultrasonic snow depth sensor mounted on a sturdy dark gray pole above a snow-covered surface. The sensor is housed in a rectangular gray weatherproof box with a small wireless antenna on top, and a bell-shaped gray transducer pointing downward. Curved black lines below the sensor depict ultrasonic waves traveling toward the snow to measure its depth.
Advantages of ultrasonic sensors in snowpack monitoring
Non‑contact and non‑destructive.
Unlike manual probes or snow pillows, ultrasonic sensors do not touch the snowpack. They are mounted to give the sensor a perpendicular angle to the snow and measure depth from above, avoiding compaction or melting that could bias measurements and ensuring the snow remains undisturbed. Sensors can be placed on avalanche research towers, weather stations or other infrastructure.
Low power and autonomous operation.
Snow‑depth sensors typically draw less than a few hundred milliwatts, allowing them to run on batteries or small solar panels for months. This is critical in remote mountainous regions where grid power is unavailable. Some modern sensors integrate temperature compensation and signal processing so they operate reliably at temperatures down to –40 °C without servicing.
High accuracy and real‑time output.
Well‑designed ultrasonic snow sensors achieve ±1–2 cm accuracy under good conditions. They can sample every few minutes or faster, capturing rapid changes during snowfalls or melts. Regular updates allow forecasters to detect sudden loading or melting events.
All‑weather capability and diagnostics. Because ultrasonic devices use sound rather than light, they function day and night and in low‑visibility conditions. Some sensors incorporate algorithms to filter out echoes from falling precipitation. This improves data quality during storms.
Reduced maintenance.
Maintenance primarily involves ensuring the transducer face remains free of snow, ice or debris. Sensors with downward facing horns help prevent snow buildup on the transducer. The lack of moving parts and non‑contact operation reduces wear and tear as opposed to other methods. Some ultrasonic sensors even offer self‑cleaning features to help with condensation and frost prevention.
Applications: Avalanche forecasting, hydrology, transportation and beyond
Avalanche hazard forecasting.
Snow depth and changes in accumulation are critical inputs for avalanche risk models. Ultrasonic sensors installed at avalanche study plots and along ski patrol routes provide continuous measurements that, when combined with meteorological data, help forecasters assess instability. Heavy snowfall can temporarily disrupt measurements because echoes may reflect off falling snowflakes; signal‑processing algorithms mitigate these errors.
Hydrological modelling and water‑resource management.
Continuous snow‑depth data feed hydrological models that estimate snow‑water equivalent and predict spring runoff. Distributed networks of ultrasonic sensors provide depth measurements across a watershed, helping water managers plan reservoir releases and hydropower generation and anticipate flood risk from rapid melt events.
Road maintenance and winter operations.
Transportation agencies integrate snow‑depth sensors into road weather information systems to optimize plowing, de‑icing and salt application. Real‑time knowledge of snow depth and accumulation enables efficient allocation of resources, reducing costs and improving safety.
Agriculture and ecosystem monitoring.
Farmers and ecologists use snowpack data to forecast soil moisture, plan planting schedules and understand winter habitat conditions. Ultrasonic sensors installed on agricultural or ecological monitoring stations provide continuous depth measurements that inform these decisions.
Practical considerations: Installation, mounting and power
Mounting height and orientation.
Snow sensors are typically mounted 2–5 meters above the ground on stable poles or towers to ensure they remain above the maximum expected snow depth. A level reference plate or snow board beneath the sensor provides a consistent target. The sensor should be perpendicular to the plate to minimize beam spreading. To reduce drifting, fences or barriers are often installed around the site. The site should be free of obstructions such as branches or support wires that could reflect sound waves.
Temperature compensation and calibration.
Because the speed of sound depends on air temperature, sensors must measure temperature and adjust their readings accordingly. Manual calibration involves surveying the sensor height relative to the ground and verifying that the measured distance corresponds to actual snow depth. Periodic manual measurements with rulers or snow probes can be used to validate and adjust sensor data if desired. Some sensors have automatic temperature calibration which prevent the need of manual calibration.
Power supply and communication.
Low‑power design enables sensors to operate with small batteries and solar panels. Some sensors are part of full solutions in which data is often transmitted via serial interfaces to data loggers and then relayed through cellular, LoRaWAN, satellite or other communications. Integration into IoT platforms allows remote configuration and real‑time data streaming.
Maintenance and environmental factors.
In some cases, sensors should be checked periodically to remove snow or ice buildup on the transducer and to ensure the reference plate is clear of debris; however, this is often unnecessary. Blowing snow, high winds and vegetation can introduce noise; sensors with beam shaping and filtering algorithms help reduce false readings. Using ultrasonic sensors with a narrow beam pattern and proper mounting can help avoid reflections from nearby structures.
Data integration and modelling
Ultrasonic snow‑depth data are most useful when combined with other observations. Networks of sensors across a region provide spatially distributed measurements that feed into hydrological and avalanche models. When integrated with weather forecasts, streamflow data and remote‑sensing products, these measurements improve the prediction of snowmelt timing and magnitude. Machine‑learning techniques can assimilate snow depth time series alongside meteorological variables to forecast snowpack evolution. Real‑time data streams inform on‑the‑ground decision‑making for water managers, road crews and avalanche mitigation teams.
Emerging trends in ultrasonic snow monitoring
Maintenance‑free and self‑diagnosing designs.
Sensors which incorporate advanced signal processing and internal temperature compensation improve reliability. These designs can filter out echoes from precipitation, identify icing or obstruction and adjust measurements automatically. By reducing maintenance visits, they lower operating costs and make it feasible to deploy sensors across large, remote areas.
Integration with IoT and remote sensing.
Ultrasonic sensors are increasingly incorporated into Internet‑of‑Things frameworks using low‑power wide‑area networks and cloud platforms. This integration facilitates real‑time data access and remote configuration. Ground‑based sensors also calibrate and validate satellite and airborne measurements of snow cover and depth. Data fusion techniques combine point measurements with spatial imagery to create high‑resolution snowpack maps.

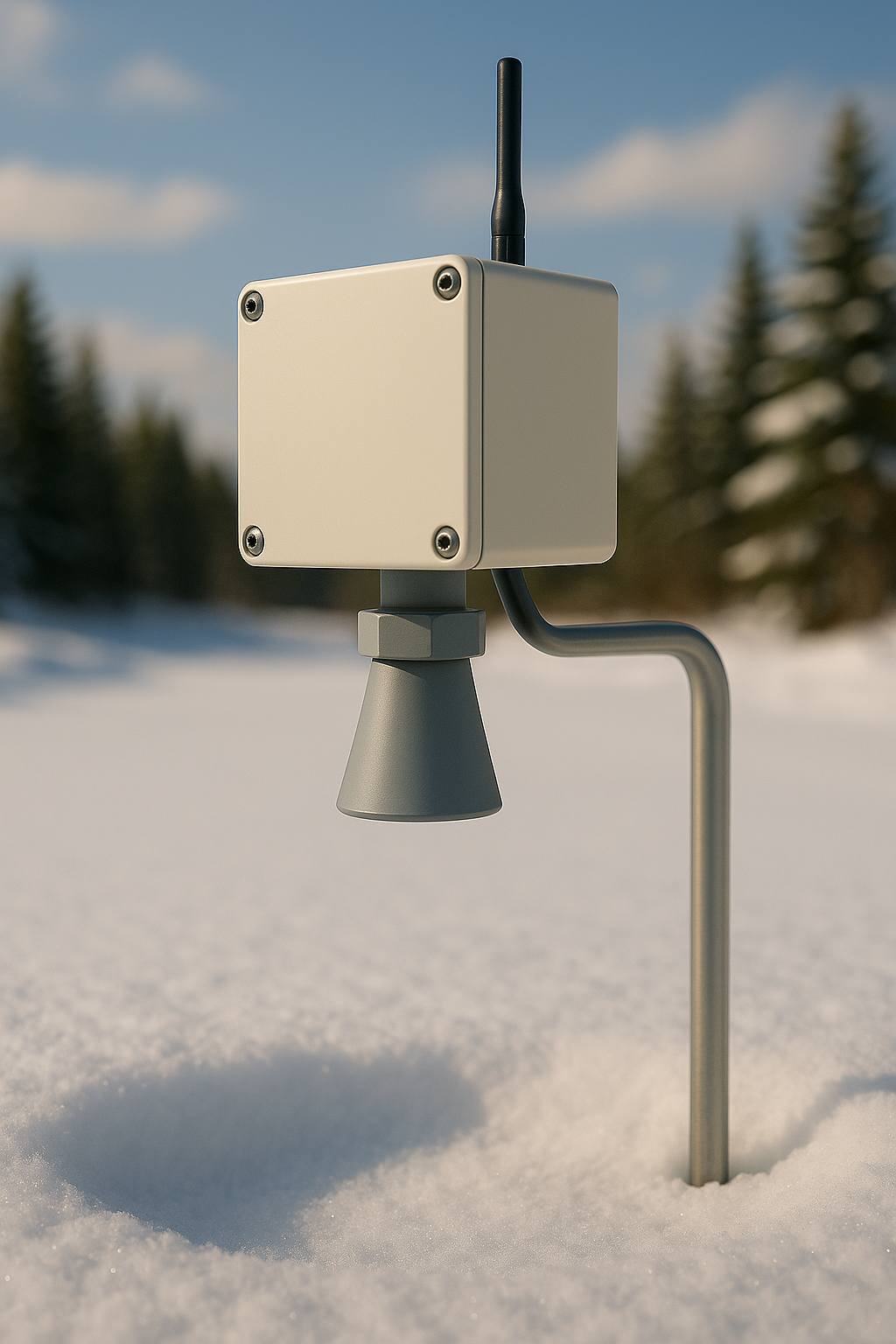

Figure 2 - A wireless ultrasonic snow depth sensor mounted on a sturdy silver L-shaped pole in a snowy landscape. The sensor consists of a beige weatherproof box with four corner screws and a black antenna on top, and a gray conical transducer pointing downward toward the snow. The snow surface is smooth and level, with evergreen trees and a blue sky in the blurred background.
Balanced perspective on ultrasonic snow sensors
Ultrasonic snow‑depth sensors have become indispensable tools for modern snowpack monitoring. Their non‑contact design prevents disturbance of the snow surface, while low power consumption, high accuracy and all‑weather operation make them well suited for remote mountain environments. Continuous measurements support avalanche forecasting, water‑resource management, transportation planning and ecological studies. Limitations include sensitivity to blowing snow, wind and nearby obstacles, as well as the inability to measure snow‑water equivalent directly. Some of these limitations can be reduced with a narrow beam pattern sensor and proper mounting. With careful mounting, calibration and maintenance, ultrasonic sensors provide reliable, cost‑effective snow‑depth data. Additional technologies—such as maintenance‑free designs and distributed networks—are expanding the reach of snow monitoring, enabling better characterization of snow variability and enhancing our ability to adapt to changing climates.
Frequently Asked Questions About Snow Depth Monitoring
Why are ultrasonic sensors used for snow depth monitoring?
They provide continuous, non-contact measurements, avoiding disturbance of the snowpack and reducing maintenance compared with manual methods or pressure sensors.
How do ultrasonic snow sensors help with avalanche forecasting?
By recording accumulation and melt in real time, ultrasonic sensors give forecasters early insight into snowpack stability, a key factor in avalanche risk.
Can ultrasonic sensors improve water-resource management?
Yes, their data feeds hydrological models to forecast spring runoff, helping manage reservoirs, hydropower, and irrigation planning.
Do ultrasonic sensors work in harsh winter conditions?
They are designed for extreme cold, snowstorms, and low visibility, with temperature compensation and filtering algorithms that keep data reliable.
What maintenance do ultrasonic snow sensors require?
Typically minimal — occasional checks to clear the sensor face or reference plate, with little need for servicing thanks to their non-contact design.
Where are ultrasonic snow depth sensors commonly used?
They are deployed in avalanche research sites, weather stations, transportation networks, agricultural monitoring stations, and ecological research.
