Flood Level Monitoring with Ultrasonic Sensors: A Complete Guide
Why flood monitoring matters
Flooding is among the costliest and most disruptive natural hazards. Rising sea levels, increased rainfall intensity and the continued hardening of urban landscapes have made many watersheds more vulnerable to high‑water events. Accurate and continuous water‑level data are essential for emergency managers, engineers and community leaders to plan evacuation routes, design resilient infrastructure and anticipate inundation. Traditional gauges and manual readings provide only occasional measurements and often fail during extreme events when debris or power outages disrupt instruments. Recent advances in non‑contact sensors—particularly those that use ultrasonic ranging—offer a practical alternative. These sensors can be deployed on bridges, docks and other fixed structures to provide real‑time monitoring without touching the water surface.
Limitations of conventional flood measurement methods
Historically, water levels were recorded using staff gauges or floats inside stilling wells. Staff gauges require frequent human observation and are easily damaged by debris or high flows. Stilling wells and float systems are more automated but demand substantial infrastructure and regular maintenance to remove sediment and biofouling. Submersible pressure transducers measure hydrostatic pressure and are accurate and inexpensive, but they must be installed in the water column and can be fouled by sediment or damaged by debris and lightning. Non‑contact radar or laser sensors provide high precision but are often expensive and require higher power consumption. The challenges of cost, installation complexity and maintenance have limited widespread adoption of flood sensors in many communities.
How to measure flood level using ultrasonic sensors
Ultrasonic rangefinders determine distance by emitting a burst of high‑frequency sound (typically around 40 kHz) toward a target and measuring the time it takes for the reflected echo to return. The distance to the target is equal to one‑half of the round‑trip travel time multiplied by the speed of sound, which varies with air temperature. When mounted above a river, stream or urban channel, the sensor continuously measures the distance between itself and the water surface. Subtracting this distance from the known elevation of the sensor produces the water level relative to a reference point. Because the sensor sits above the water, it avoids contact with the liquid and is less prone to fouling or damage from debris.
Modern non‑submerged gauges are relatively affordable: community‑scale ultrasonic or radar water‑level sensors cost between under $125 for a standalone sensor itself and up to $2,600 per unit for complete ready to install solutions. Many sensors solutions are solar powered and equipped with wireless communication, enabling continuous data transmission from remote locations. The basic principle—timing the echoes of inaudible sound waves—remains simple, yet the integration of temperature compensation and digital communications has made these devices reliable for long‑term monitoring.

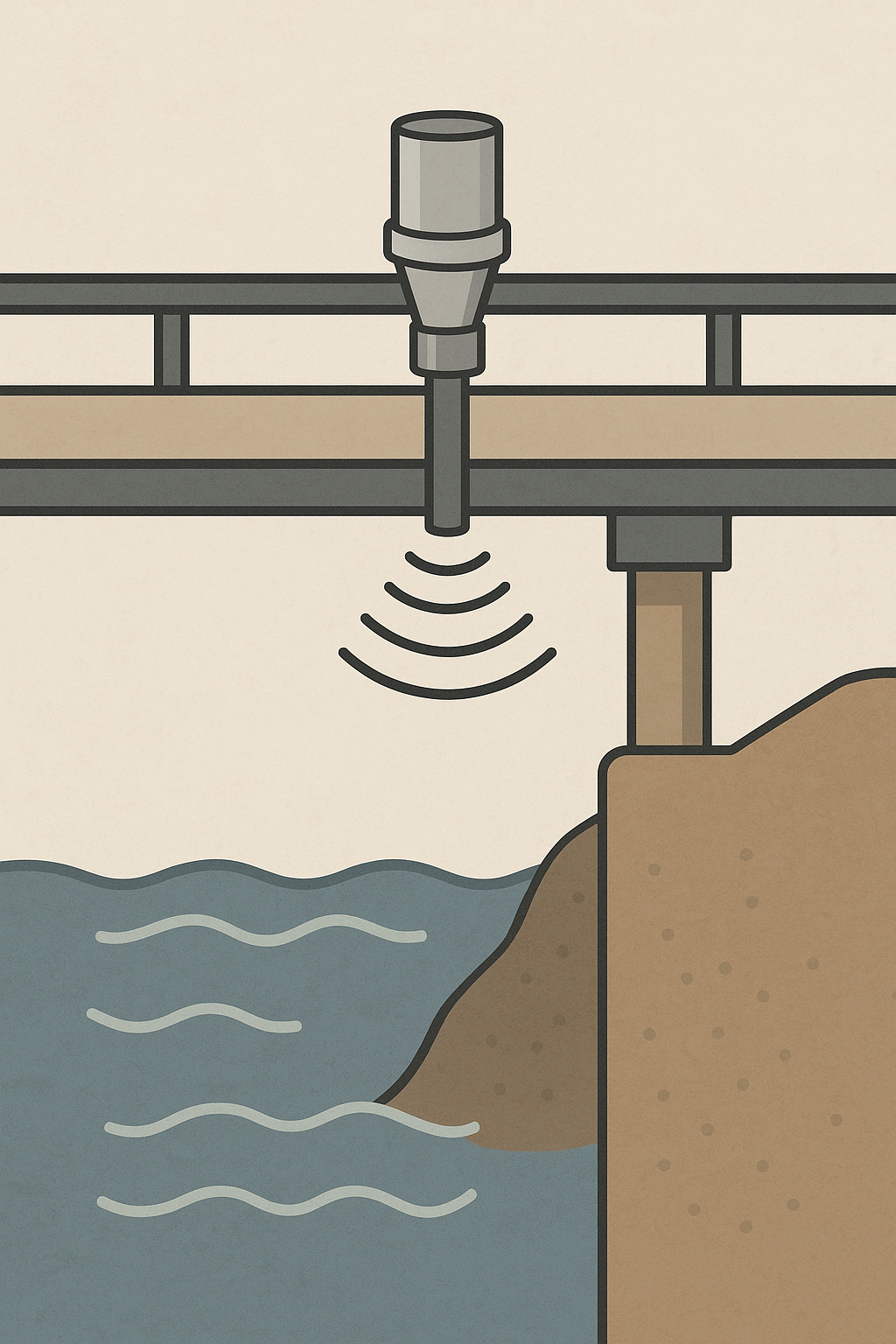

Figure 1 – A conceptual illustration of an ultrasonic sensor mounted above a waterway. The sensor emits sound pulses toward the water surface and measures the echo to determine distance. Its non‑contact design protects the instrument from flooding and debris.
Advantages of ultrasonic sensors in flood management
Non‑contact operation and durability.
Ultrasonic sensors measure water level without submerging any components, so they can be installed above the water on bridges, piers or poles. This placement reduces the risk of damage from debris, corrosion or fouling and eliminates the need for expensive stilling wells or protective structures. Because there are no moving parts in the water, the devices require less frequent maintenance than traditional floats or pressure transducers.
High accuracy and rapid response.
Quality ultrasonic gauges can achieve centimeter‑level accuracy (±1–5 mm) and take measurements at least once per minute or even several times per second. This rapid sampling captures sudden rises or falls in water level during flash floods or tidal surges. Automated sensors also remove human error from readings, providing consistent measurements around the clock.
Low maintenance and long service life.
Because the sensor housing remains dry, it is less susceptible to biofouling, sediment deposition or corrosion. Many instruments include built‑in temperature probes for compensation and self‑diagnostics to monitor signal strength. Maintenance typically involves periodic cleaning of the sensor face and verification of calibration. In large‑scale monitoring programs, sensors are often enclosed in rugged, watertight housings that can withstand extreme humidity and wide temperature ranges.
Affordability and scalability.
Declining electronics costs and open‑source designs have reduced the price of ultrasonic stage sensors, making them accessible to municipalities and community groups. Non‑submerged sensors designed for public initiatives cost a fraction of traditional flood gauges. Some programs build sensors using commercial off‑the‑shelf components and publish the designs so others can replicate them. These factors allow dozens or hundreds of sensors to be deployed across a watershed at reasonable cost, creating dense networks that inform hydrological models and public dashboards.
Real‑time data and early warnings.
Many ultrasonic sensors are equipped with wireless modems (e.g., cellular, LoRaWAN, satellite) that transmit data in real time. When connected to dashboards or emergency management systems, these sensors can trigger alerts when water levels exceed predefined thresholds. Real‑time measurements enable proactive responses such as closing roads, adjusting storm‑water pumps or issuing evacuation orders. Programs that combine ultrasonic data with hydrological models provide forecasts of when and where flooding will occur, improving preparedness.
Applications: where ultrasonic sensors are used for flood monitoring
State‑ and community‑level monitoring initiatives.
Several coastal states have launched initiatives to install inexpensive water‑level sensors on bridges and docks, focusing on areas with high flood risk. One such program by S.C. Sea Grant Consortium intends to deploy sensors across counties containing tidal waters or hurricane storm‑surge zones. The goal is to fill observational gaps and give communities access to real‑time water‑level data. In the program’s first five years, sensors were placed in a watershed to expand observations; the next phase will widen coverage to additional counties and coordinate with neighboring states. By placing sensors upstream and downstream, communities can anticipate rising waters and prepare accordingly.
Open hardware networks.
Some researchers have developed open‑source, low‑cost flood gauges that integrate ultrasonic rangefinders, microcontrollers and solar power. These devices cost a few hundred dollars and can be assembled by students or citizen scientists. Large networks of such sensors—encompassing hundreds of units—have been deployed along rivers and streams and feed data into hydrological models accessible to the public and emergency officials. Each sensor uses a rugged housing and can continue operating after being fully submerged during a flood, resuming measurements once water levels recede.
Early‑warning systems and public dashboards.
When connected to online dashboards or regional monitoring systems, ultrasonic sensors provide both raw stage measurements and processed information such as flood thresholds. For example, a network of sensors may take measurements every five minutes, average them to reduce noise, and transmit the data wirelessly to a public web portal. Real‑time information allows emergency responders to focus resources where flood impacts will be greatest. In some coastal communities, sensors installed upstream help downstream residents prepare for incoming floods by acting as an early‑warning system.
Complementary use with other technologies.
While ultrasonic sensors are a key component of many monitoring networks, they are often used in conjunction with rain gauges, pressure transducers, radar sensors and weather forecasts. Combining data from multiple sources improves flood prediction and modelling accuracy. Some IoT‑based early‑warning systems integrate ultrasonic sensors with rain sensors and remote communications to deliver alerts and support disaster response.
Practical considerations: installation, calibration and maintenance
Proper installation is critical to ensure accurate readings and long service life. The sensor should be mounted perpendicular to the water surface and vertically aligned within two degrees. Installations must account for the sensor’s blanking distance (a zone near the instrument where echoes are ignored) by placing the sensor well above the highest expected flood level plus the manufacturer’s recommended clearance. The beam path should be free of obstructions; mounting near walls or railings can cause false echoes. In tanks or enclosed channels, a stilling well or pipe may be used to create a calm measurement surface when turbulence is a concern.
Environmental factors such as temperature, wind and humidity influence the speed of sound and therefore the measurement. Many sensors include internal or external temperature probes to compensate automatically. Strong winds and wave turbulence can scatter sound waves, so it is advisable to use stilling wells or choose sheltered locations when possible. Surface foam, floating debris or angled surfaces reduce echo strength; under such conditions, complementary radar sensors may be employed.
Power and connectivity options vary. Low‑power ultrasonic gauges typically draw less than 50 milliwatts, allowing them to run for years on batteries or small solar panels. Data can be output via SDI‑12, analog voltage, pulse‑width modulation or digital protocols and transmitted through LoRaWAN, cellular or satellite networks to central servers or SCADA systems. Calibration involves surveying the sensor’s height relative to the water reference and periodically verifying measurements with physical rulers. Maintenance generally consists of cleaning the transducer and inspecting housing seals and power system.

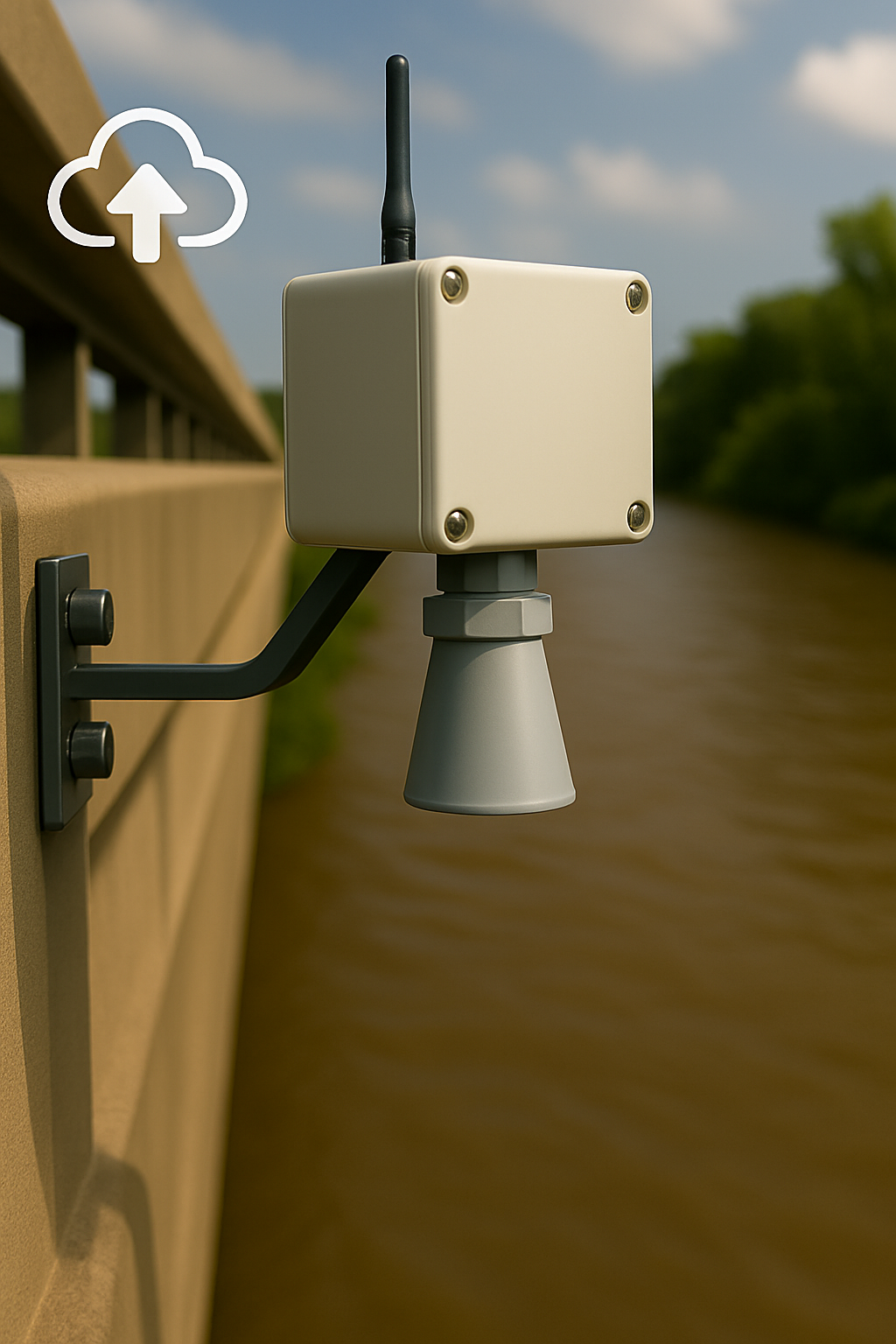

Figure 2 - An ultrasonic flood monitoring sensor with a weatherproof enclosure mounted on a concrete bridge with a metal bracket, pointing downward toward a brown river below. The device has a vertical black antenna and an ultrasonic transducer, with wireless connectivity icons overlaid in the sky. Trees line the far bank under a partly cloudy sky.
Data integration: IoT, SCADA and real‑time dashboards
In modern flood monitoring, ultrasonic sensors act as nodes in distributed networks rather than standalone instruments. Many sensors support digital protocols such as SDI‑12 or Modbus for integration into supervisory control and data acquisition (SCADA) systems. Low‑power long‑range radio networks (e.g., LoRaWAN) allow dozens of sensors to communicate with a single gateway, reducing deployment costs and extending coverage. Online dashboards convert raw distance data into water‑level measurements relative to local data, display trends and generate alerts when thresholds are crossed. Combining ultrasonic stage data with rainfall measurements, tide predictions and watershed models improves flood forecasts and helps identify vulnerable infrastructure. Public access to the data fosters community awareness and engagement in flood preparedness.
Future outlook: trends in ultrasonic flood monitoring
Lower costs and open designs.
As microcontrollers, digital transducers and additive manufacturing become cheaper, the cost of building robust ultrasonic gauges continues to decline. Open‑source hardware projects release detailed designs and software to encourage widespread replication and adaptation. This broadened access of monitoring equipment enables communities, schools and citizen scientists to contribute to flood data collection.
Integration with predictive analytics.
Machine‑learning models are increasingly applied to stage data to predict flood timing and magnitude. By fusing ultrasonic measurements with rainfall, radar and watershed information, these systems can provide warnings hours or even days in advance, supporting proactive responses.
Smart infrastructure and resilience planning.
Real‑time water‑level data can trigger automatic operation of flood‑gates, pumps and drainage systems, reducing damage during storm events. Continuous monitoring also helps engineers assess infrastructure performance and identify areas where improvements are needed. As climate change accelerates, integrating sensor networks into resilience planning will become even more important.
Reliable, Practical Monitoring with Ultrasonic Sensors
Ultrasonic water‑level sensors have matured into reliable, cost‑effective tools for flood monitoring. Their non‑contact design reduces maintenance, while high accuracy and rapid response capture critical changes during storms and tidal surges. Advances in power efficiency, temperature compensation and communications allow sensors to operate continuously in remote and harsh environments. Community‑level initiatives demonstrate that networks of low‑cost sensors can fill observational gaps, provide real‑time data to public dashboards and support early‑warning systems. Although ultrasonic sensors can be sensitive to wind, temperature and obstructions, careful installation and periodic maintenance mitigate these challenges. As part of an integrated monitoring strategy alongside pressure, radar and rainfall sensors, ultrasonic devices help communities understand and respond to changing flood risks and build more resilient water‑management systems.
Frequently Asked Questions About Ultrasonic Flood Level Monitoring
Why are ultrasonic sensors useful for flood monitoring?
They provide real-time water level data without contact, making them durable and reliable during floods.
How do ultrasonic flood sensors improve community safety?
They send alerts as water levels rise, giving responders and residents more time to prepare.
Can ultrasonic sensors be used in rivers, urban drains, and coastal areas?
Yes, they can be installed on bridges, docks, stormwater structures, and coastal sites.
What makes ultrasonic sensors cost-effective for flood monitoring?
They avoid costly submersed equipment, require less maintenance, and are increasingly affordable.
Do ultrasonic flood sensors work with smart city and IoT systems?
Yes, many connect via wireless networks and integrate with SCADA, IoT, and public dashboards.
What are the limitations of ultrasonic sensors in flood monitoring?
Wind, foam, and debris can affect readings, but good mounting and complementary sensors reduce issues.
