Industrial Uses of Ultrasonic Rangefinders
Takeaway Summary
Ultrasonic rangefinders deliver non-contact, reliable distance measurement for indoor and outdoor industrial use, with IP67 & IP68 housings and temperature compensation to handle dust, steam, and variable lighting. They integrate cleanly via RS-232 or TTL for digital data and configuration, while 4–20 mA provides straightforward PLC/SCADA connectivity. Best results come on diffuse or transparent targets, irregular surfaces, and moderate ranges across level monitoring, bulk solids, packaging, robotics, gates, and general process feedback.
How Ultrasonic Rangefinders are Used in Industrial settings
Ultrasonic rangefinders, often called ultrasonic distance sensors, use high-frequency sound to measure distance without touching the target. Because they depend on sound rather than light, they are largely unaffected by color, gloss, or transparency and continue to operate in dusty or steamy air where optical sensors can falter. In industrial settings this makes them a dependable choice for tasks such as level measurement, presence detection, and position feedback. Rugged housings rated to IP67 and IP68 allow the same sensor families to live indoors on packaging lines or outdoors at a gate or tank farm. Equally important, integration is straightforward: RS-232 and TTL serial interfaces provide digital data and configurability for embedded or controller-based systems, and a 4–20 mA current loop can feed an analog PLC input when a simple, noise-resistant measurement channel is preferred.
Ultrasonic operation is based on a short acoustic pulse emitted into the air and the timing of its echo. The sensor calculates distance from the time-of-flight and the known speed of sound. Practical details matter. The emitted energy forms a cone-shaped beam that widens with distance; a narrower beam is useful when longer reach and tighter aim are desirable, while a wider cone helps with area presence sensing. Every device also has a near-field region, or dead zone, where the transducer is still ringing and measurements are unreliable; targets should be positioned beyond that specified minimum. Some sensors report a target presence flag even within their ranging dead zone. Because the speed of sound varies with temperature, most industrial devices compensate automatically to maintain accuracy across a wide operating range.
How to select an Industrial Ultrasonic Rangefinder
Update Rate and Filtering
Selection starts with range and beam. It is wise to pick a sensor with headroom above the farthest required distance so that small, less reflective targets still return usable echoes. Beam geometry should match the task: concentrate energy for small objects or long throws, or allow a broader field when detecting general presence. Performance is a balance of resolution, repeatability, and update rate. Typical industrial ultrasonic sensors refresh between several and a few dozen times per second, which is fast enough for level control, pallet detection, and mobile robotics. Filtering and averaging stabilize outputs but add latency, so applications with fast motion may favor lighter filtering and tighter detection windows to reduce listening time.
Output
Interfaces often decide how quickly a sensor can be adopted. RS-232 provides robust serial communications suitable for PLC or PC ports and longer cable runs, while TTL serial connects directly to microcontrollers and embedded boards with minimal overhead. Both deliver full-fidelity distance values and typically expose configuration commands for features such as averaging, thresholds, or measurement windows.
For process control systems built around analog inputs, a 4–20 mA loop output can be used to convert measured distance into a current proportional to the application’s span, offering electrical noise immunity and simple scaling. Many modern sensors have optional USB cable or wireless capabilities for simplifying integration. This mixed interface landscape lets designers pair the same sensing platform with either digital telemetry and configurability or a straightforward analog channel, depending on system architecture.
Environment
Environmental protection and materials should align with the installation. IP67 & IP68 housings guard against dust ingress and rain or incidental washdown. Many devices specify temperature ranges such as -40°C to +65°C suitable for refrigeration areas and sun-heated enclosures. Where chemicals or cleaning agents are present, look for compatible face materials and gaskets. (See an example of a Sensor with a PVC Housing and Chemical Protection Chart here.) Outdoor placements benefit from modest drip shields and cable glands that preserve sealing; indoor machinery with vibration may call for isolation grommets or rigid brackets so mechanical motion does not couple into the transducer.
Where industrial Ultrasonic Sensors are Used

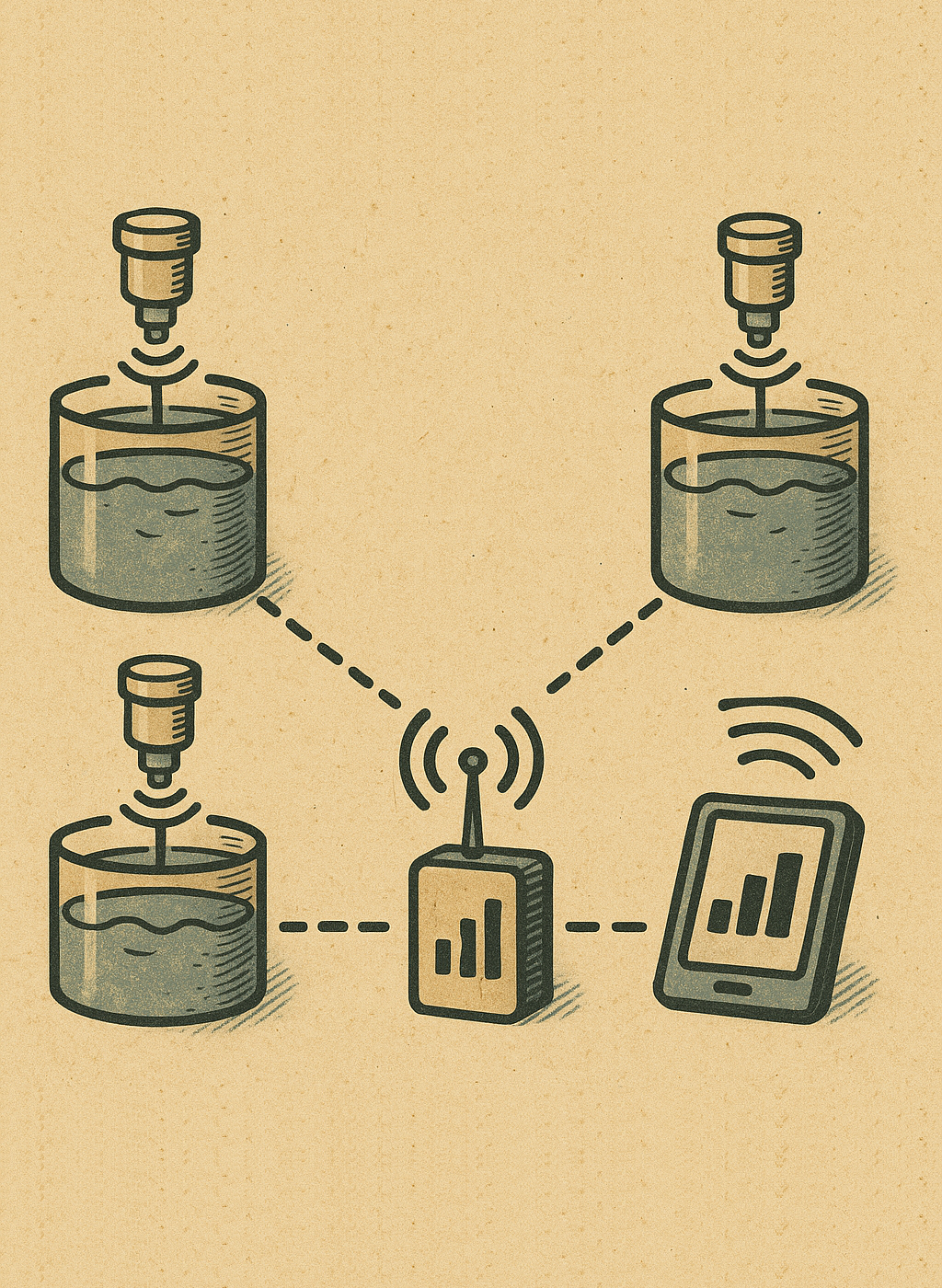

The most common deployment is level and tank monitoring. A downward-facing sensor measures the distance to a liquid surface or the top of a solid pile, and a controller converts that value to level. Non-contact measurement keeps the device out of corrosive or sanitary media and simplifies cleaning. When condensation or turbulence are likely, a sensor with a tolerant face material, a short stilling section, or a conservative averaging setting improves stability. Headspace should be planned so the maximum fill does not intrude into the dead zone, and analog scaling on a 4–20 mA output can map empty and full for immediate PLC consumption.
Bulk solids and bin level present different geometry but similar principles. Dust clouds during filling do not typically blind an ultrasonic device, and the insensitivity to color and reflectivity helps when materials vary. A narrow beam pointed toward the typical peak reduces ambiguity from sloped surfaces. Rigid mounting is important on bins that use vibrators, and lower ultrasonic frequencies sometimes help in heavy dust because longer wavelengths attenuate less.
Packaging and material handling use ultrasonics to detect boxes, pallets, and jam conditions, particularly with clear films or glossy packaging that confuses photoelectric sensors. Threaded barrel housings make alignment simple, and a distance-based output allows a single device to confirm presence and approximate position without a separate analog stage. The ability to ignore ambient light and surface color reduces nuisance stops and keeps conveyors moving.
Mobile platforms such as AGVs (Automated Guided Vehicles) and AMRs (Autonomous Mobile Robots) rely on ultrasonics for close-range obstacle detection and docking, complementing lidar or vision that handles mapping and long-range navigation. TTL serial pairs naturally with embedded controllers, while RS-232 aids integration with industrial computing and logging. An array of small modules around a chassis can monitor near-ground obstacles and pallet edges, providing redundancy and coverage in blind spots. Because human safety requires rated devices, ultrasonic inputs on mobile equipment are typically supplemental to safety-certified scanners, but they add useful redundancy.
Automated gates and doors benefit from volumetric presence detection and anti-tailgating logic. An overhead ultrasonic device can sense a person or vehicle occupying the lane and confirm that the path clears fully before allowing the next cycle. IP67 devices tolerate rain and temperature swings; mounting height and aim determine the protected area and should be tuned so sidewalls or posts do not produce persistent echoes. Filtering tuned for wind gusts and precipitation helps maintain stable operation outdoors.
In process control, ultrasonic distance feedback supports roll diameter monitoring, loop depth measurement, and conveyor loading estimation. Continuous readings inform tension control or rate adjustments without contacting hot, moving, or delicate surfaces. For these applications, 4–20 mA outputs map directly to existing analog cards, while a parallel serial channel can expose diagnostics and configuration commands during commissioning.
Industrial Ultrasonic Rangefinder Key Considerations
Installation practices strongly influence results. Start with a perpendicular aim to maximize echo strength and adjust only if irregular surfaces cause multi-path issues. Keep the sensor’s field free of nearby ledges and brackets that could reflect echoes; if unavoidable, teach a background or set a blanking zone so those structures are ignored. Separate sensor cabling from high-power lines and provide proper grounding and shielding to minimize EMI (Electromagnetic Interference). Where multiple sensors operate nearby, use synchronization or staggered triggering to prevent crosstalk. Rolling out an integrated solution should include step tests across the working range, verification of analog scaling, and documentation of settings so maintenance staff can restore known good configurations quickly.
Troubleshooting typically revolves around stability and interference. If readings drift or jump, check for loose mounts, extreme airflow across the beam, or secondary echoes from adjacent structures. Increasing or decreasing averaging trades stability for responsiveness; narrowing the maximum range can shorten listening time and improve update rate. Small or soft targets may require closer placement or a narrower beam so that more of the energy reaches and returns from the target surface. Temperature compensation generally handles ambient swings after a short warm-up; if an environment has extreme gradients, applying an external reference in control logic can further tighten accuracy.
Compliance and safety expectations in industry are met by matching ratings to risk. IP67 covers most dusty and wet locations; washdown or high-pressure cleaning pushes selection toward higher ingress ratings. EMC (Electromagnetic Compatibility) is aided by shielded cabling and correct routing. For personnel protection functions, rely on safety-rated systems and treat standard ultrasonics as supplemental sensing. Where explosive atmospheres are present, only use devices explicitly certified for the zone or division.
Frequently Asked Questions About Industrial Ultrasonic Sensors
What ranges are typical for industrial ultrasonics?
Most devices cover from a few centimeters to ten plus meters, with best results when the working distance stays comfortably within the rated maximum so smaller or less reflective targets still return a strong echo.
Can these sensors detect very small or thin objects?
In small/thin-object scenarios, reliable detection comes from close placement, a narrow beam, and aiming the target so more of its surface faces the sensor and is in the center of the beam.
Are ultrasonic sensors suitable for outdoor use?
Yes, IP67 housings, appropriate temperature ratings, and modest shielding against direct rain and sun support year-round operation.
When should I choose RS-232 or TTL instead of a 4–20 mA loop?
Choose RS-232 or TTL when you want digital distance data, configuration, and easy integration with controllers or embedded systems; pick 4–20 mA when a simple, robust analog signal into an existing PLC/SCADA card is preferred.
