MB7586 SCXL-MaxSonar-WRLT

• Resolution of 1-mm
• Self‑cleaning transducer
• 0.57Hz read rate
• Internal temperature compensation
• 42kHz ultrasonic sensor measures distance to objects
• RoHS Compliant
• Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
• Virtually no sensor dead zone, objects closer than 50cm range as 50cm
• Operates from 2.7-5.5V
• Low 68mA average current requirement
• Small, lightweight module
• Designed for easy integration into your project or product
• Operational temperature -40°C to +65°C (-40°F to +149°F)
• Real-time automatic calibration (voltage, humidity, and ambient noise)
• Firmware filtering for excellent noise tolerance and clutter rejection
• Weather resistant (IP67), optional chemical resistant F-Option
• Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

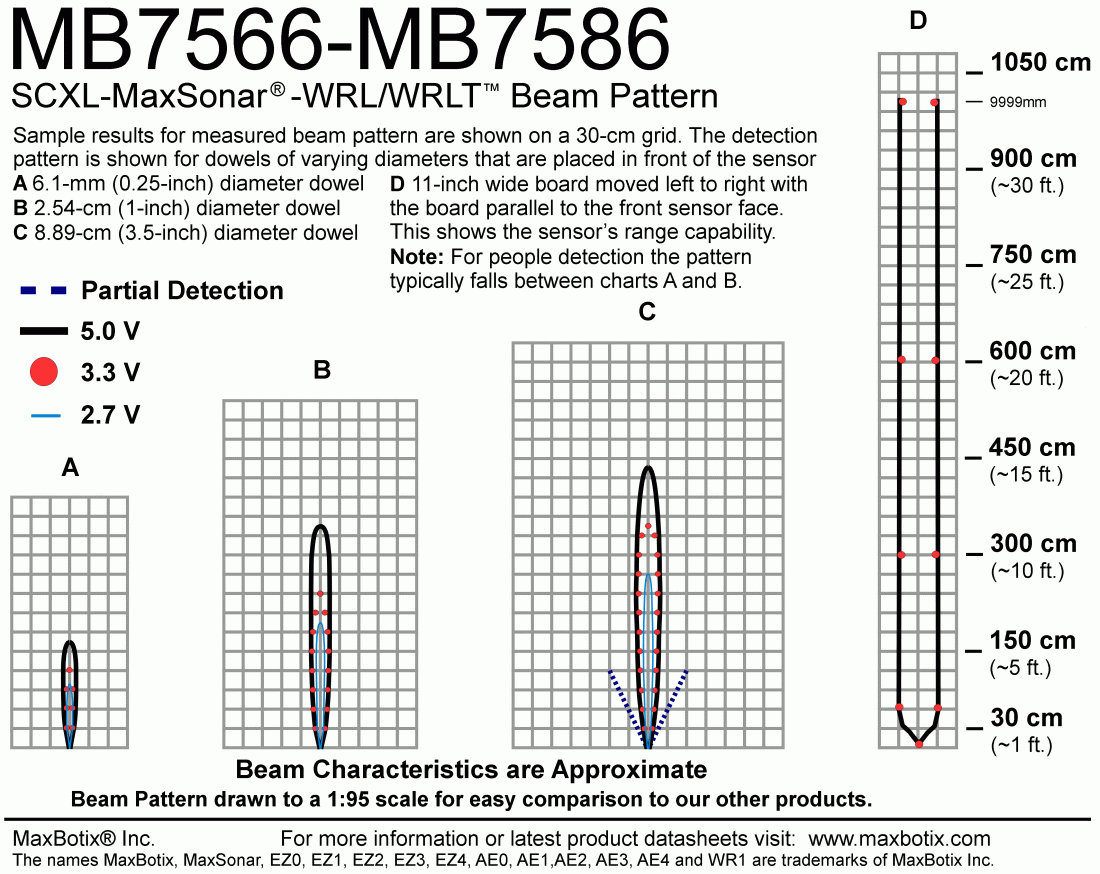

• Long, narrow detection zone
• Our longest-range, high-resolution outdoor, weather-resistant, ultrasonic sensor
• TTL Serial Output
• Maximum range of 10 meters (394 inches)

Features of the weather-resistant MB7586, SCXL-MaxSonar-WRLT, include the reduced impact of condensation and frost when ran continuously in closed or high-moisture environments, millimeter resolution, short to long distance detection, range information from 500mm to 9999mm for the nearest detectable target, a 0.6Hz read rate, and various output options: pulse-width, analog voltage, and TTL serial.

The MB7586 from the SCXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

The SCXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

In addition, the MB7586 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Intended for applications requiring the resistance of condensation in high moisture environments, our self-cleaning function is designed to run continuously in order for the self-cleaning feature to be active.

Variations on this sensor model

MB7566 is the RS232 version of this sensor.
MB7580 is the 5-meter version of this sensor.

Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.
