MB79XX HR-MaxTemp
MB79XX HR-MaxTemp
MB7955 HR‑MaxTemp PCB and Heat Shrink
MB7956 MaxTemp cable sold per foot i.e. 1 ft = qty 1 (Purchased with the MB7955)
MB7957 HR-MaxTemp PCB, heat Shrink, and 3 feet of cable

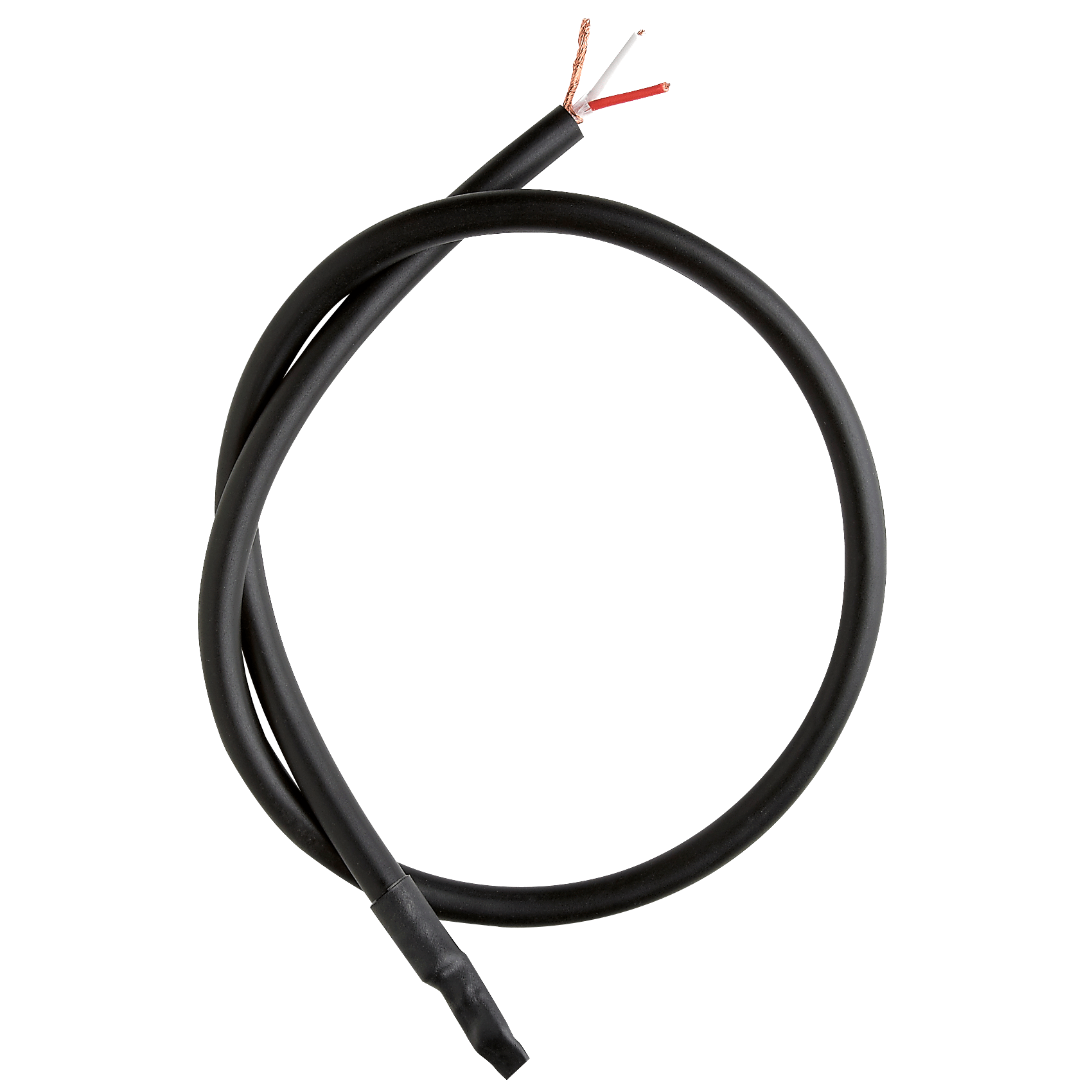

MB7958 Assembled HR‑MaxTemp with 3 feet of cable
MB7959 Assembled HR‑MaxTemp with 6 feet of cable
MB7972 Assembled HR‑MaxTemp with 20 feet of cable
The HR-MaxTemp is designed to be used alongside the HR-MaxSonar sensors. The HR-MaxSonar sensor upon power-up will automatically detect an attached temperature sensor and begin to apply temperature compensation for the speed of sound changes to all range outputs.
$4.95
Couldn't load pickup availability
Collapsible content
Description
The HR-MaxTemp is an external temperature sensor designed for use with the high-resolution sensors produced by MaxBotix.
Specs
Documentation and CAD files
Documents
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB79XX HR-MaxTemp
No PCNs on Record
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
MB7986 Voltage Regulator
View AccessoryThe voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.
