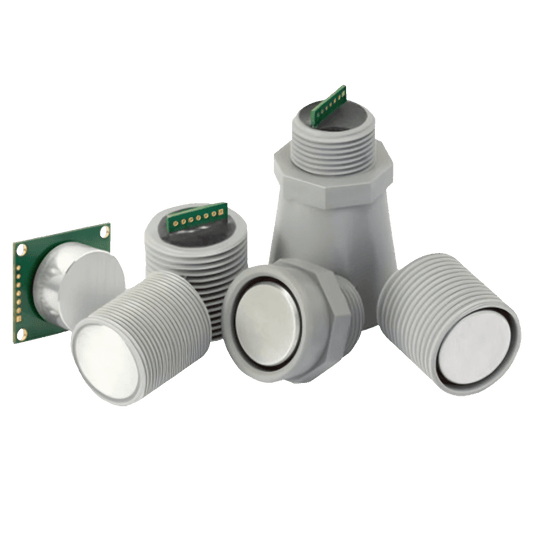

I2CXL-MaxSonar-WR family of Ultrasonic Sensors from MaxBotix Inc.
RoHs Compliant

MB7040
I2CXL-MaxSonar®-WR™

High Performance Ultrasonic Precision Rangefinder


The IP67 rated MaxSonar-WR sensors are now available with an I2C bus interface. This allows for up to 127 sensors to be operated on a single bus interface for multi‑sensor operation.

The I2CXL-MaxSonar-WR is a weather resistant sensor designed for outdoor detection and ranging.

The weather resistant I2CXL-MaxSonar-WR is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

High output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The I2CXL‑MaxSonar‑WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

Models with additional chemical resistance are available

The F-Option design modification provides our weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option when ordering.



Packaging Options


XL-MaxSonar-WR Ultrasonic Sensor

3/4" NPS WR Housing

Lead time may vary for larger orders

MB7040
Each, $99.95
MB7040
5-Pack, $474.75
MB7040
10-Pack, $899.50
MB7040
50-Pack, $3,800.50
MB7040
100-Pack, $6,857.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

XL-MaxSonar-WRC Ultrasonic Rangefinders

3/4" NPS WRC Housing

Lead time may vary for larger orders

MB7047 - Compact
Each, $99.95
MB7047 - Compact
5-Pack, $474.75
MB7047 - Compact
10-Pack, $899.50
MB7047 - Compact
50-pack, $3,800.50
MB7047 - Compact
100-Pack, $6,857.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

XL-MaxSonar-WRUC Ultrasonic Sensor

Ultra Compact Housing

Please allow up to 2 weeks for each order

MB7240
- UltraCompact
Each, $99.95
MB7240
- UltraCompact
5-Pack, $474.75
MB7240
- UltraCompact
10-Pack, $899.50
MB7240
- UltraCompact
50-Pack, $3,800.50
MB7240
- UltraCompact
100-Pack, $6,857.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

XL-MaxSonar-WRUC Ultrasonic Sensor

Ultra Compact Housing
Flush Mount

Please allow up to 2 weeks for each order

MB7247
- UltraCompact
Each, $99.95
MB7247
- UltraCompact
5-Pack, $474.75
MB7247
- UltraCompact
10-Pack, $899.50
MB7247
- UltraCompact
50-Pack, $3,800.50
MB7247
- UltraCompact
100-Pack, $6,857.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

I2CXL-MaxSonar-WR Ultrasonic Sensor

1" NPS Housing

This housing option may take up to 2 weeks
Lead time may vary for larger orders

MB7047 - 1" NPS
Each, $99.95
MB7047 - 1" NPS
5-Pack, $474.75
MB7047 - 1" NPS
10-Pack, $899.50
MB7047 - 1" NPS
50-Pack, $3,875.50
MB7047 - 1" NPS
100-Pack, $7,007.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

I2CXL-MaxSonar-WR Ultrasonic Sensor

1" BSPP Housing

This housing option may take up to 2 weeks
Lead time may vary for larger orders

MB7047 - 1" BSPP
Each, $99.95
MB7047 - 1" BSPP
5-Pack, $474.75
MB7047 - 1" BSPP
10-Pack, $899.50
MB7047 - 1" BSPP
50-Pack, $3,875.50
MB7047 - 1" BSPP
100-Pack, $7,007.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

I2CXL-MaxSonar-WR Ultrasonic Sensor

30MM 1.5 Housing

This housing option may take up to 2 weeks
Lead time may vary for larger orders

MB7047 - 30mm1.5
Each, $99.95
MB7047 - 30mm1.5
5-Pack, $474.75
MB7047 - 30mm1.5
10-Pack, $899.50
MB7047 - 30mm1.5
50-Pack, $3,950.50
MB7047 - 30mm1.5
100-Pack, $7,157.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

Weather Resistant (IP67) Sensors, and Optional Chemical Resistance

The industrial outdoor I2CXL-MaxSonar-WR sensors have a robust PVC housing designed to meet IP67 water intrusion. The sensors provide short to long distance detection and ranging with a narrow beam pattern. The I2CXL‑MaxSonar‑WR outdoor ultrasonic sensors have high power output, noise rejection, auto calibration, and factory calibrated beam patterns

In addition to the standard I2CXL‑MaxSonar‑WR, MaxBotix Inc., has developed the F‑Option for additional protection necessary in a few hazardous chemical environments. Extremely corrosive gases or liquids can degrade or compromise the operation of the sensing unit. As a result, we offer a more chemically inert seal which allows our sensors to operate in all but the harshest of chemical environments. In addition to the chemical resistance the sensor has improved performance in wet or dust environments.

Standard Weather Resistant Models

The exposed materials of a properly mounted I2CXL-MaxSonar-WR sensor are: Aluminum (oxidized surface), PVC, & silicone rubber (VMQ).

F-Option

The exposed materials of a properly mounted XL-MaxSonar-WR sensor with the F-Option added are: Aluminum (oxidized surface), PVC, & Flourosilicone (with an additional back up FEP Teflon® seal).

Additional Considerations

To ensure long term operation of the sensor, terminal connections should not be exposed to water, dust, or other chemicals. Follow proper mounting when installing your sensor. This is easily accomplished using standard PVC pipe fittings which match the provided mounting threads. MB7950 Mounting hardware can be purchased along with your sensor for the 3/4 NPS threading.

Sensors are designed for operation in air, but may work well in many gases. Testing for proper operation is encouraged. Compensation for speed of sound changes in other gases should be applied to sensor output, this is often accomplished through a simple 2‑point linear calibration.

Rugged & Reliable Outdoor Ultrasonic Sensors

The industrial XL‑MaxSonar‑WR products are the highest quality for cost outdoor ultrasonic sensors on the market. They provide an industrial component module solution that offers easy to use outputs, weather & dust resistance, no sensor dead zone, calibrated narrow beam patterns, stable range readings, low power demands, and a host of other features detailed in the product datasheets.

The I2CXL-MaxSonar-WR sensors represent an industry revolution that has already found use in a number of advanced or industrial solutions where ultrasonic sensors have not been historically considered a viable solution due to unstable readings, high cost, and high power requirements.

The Noise Filtering

The sensor dynamically adjusts its sensitivity to compensate for outside electrical & acoustic noise sources.

The Interface

The I2CXL‑MaxSonar‑WR interface was designed to be very easy and intuitive to use. Communication is provided over the I2C bus, featuring a very simple command set.

The Power Requirements

The I2CXL‑MaxSonar‑WR functions throughout a 3.0V to 5.5V operational voltage range. This allows for easy integration at either 3.3V or 5V and means that users of low voltage microcontrollers, or those who wish to operate in solar or battery based systems do not have to provide an extra power supply for the sensor.

The I2CXL‑MaxSonar‑WR sensors have a 4.4mA average current draw during free ranging operation.

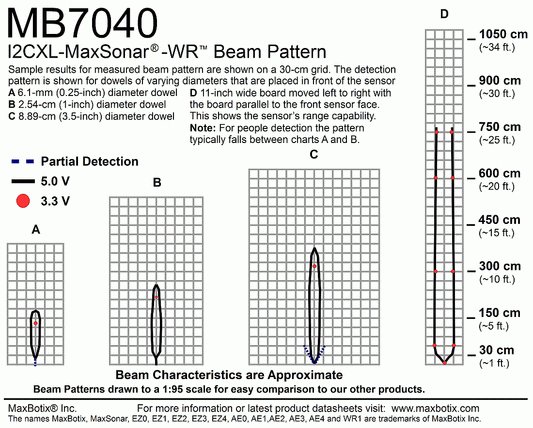

The Controlled Narrow Beam Shape

Similar ultrasonic products may have frequent side lobe detection and can even falsely trigger on objects behind or to the sides of the sensor. The I2CXL‑MaxSonar‑WR offers a controlled narrow beam that is designed to reject small objects (clutter) outside of the central beam area and provides long-range sensitivity without detecting frivolous or unwanted targets

The Calibration

Each I2CXL‑MaxSonar‑WR is tested for proper operation at our facility and comes with a factory calibrated narrow beam pattern to help ensure consistent operation of the sensor even from part to part.

The I2CXL‑MaxSonar‑WR automatically calibrates to its environment before every range reading. This calibration includes compensation for voltage, humidity, acoustic noise, and electrical noise conditions. Temperature compensation for speed of sound changes are not applied.

The Price

This sensor is designed to be sold in volume. As a result, our customers benefit from our large production volumes and distributed engineering expenses.

Reference the product datasheets to get detailed information on how each sensor operates.

Product Specifications


  • Resolution of 1 cm
  • Up to 40Hz reading rate
  • Simple I2C bus interface
  • Easy control of multiple sensors
  • Control up to 127 sensors using two wires
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • I2C Bus interface
  • Operates from 3.0-5.5V
  • Low 3.4mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 200,000+ Hours Mean Time Between Failure
  • Weather Resistant (IP67), optional Chemical Resistant F-Option
  • Available in multiple mounting packages - 3/4" NPS, Ultra-Compact, 1" NPS, 1" BSPP, 30mm1.5
  • IP67 rated, I2C interface ultrasonic sensor
  • Maximum range of 765 cm (300 inches)
  • Long-range, narrow detection zone
  • Volume Pricing (100 or more units): Contact MaxBotix Inc.

Product Documents


MB7040 DatasheetI2CXL-MaxSonar-WR-datasheet
MB7047 DatasheetI2CXL-MaxSonar-WRC-datasheet
I2C QuickStart GuideUsing an I2C-MaxSonar With an Arduino
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
