HRUSB-MaxSonar-EZ Ultrasonic Range Finder

MB1433
HRUSB-MaxSonar®-EZ3™

USB High Performance Ultrasonic Precision Rangefinders

RoHs Compliant CE Declaration of Conformity


Buy Now Options


HRUSB-MaxSonar-EZ Ultrasonic Proximity Sensor
Lead time may vary for larger orders
MB1433
Each, $49.95
MB1433
5-Pack, $239.75
MB1433
10-Pack, $449.50
MB1433
50-Pack, $1,721.83
MB1433
100-Pack, $3,322.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

For larger quantities, please contact MaxBotix Inc. for pricing.


Product Description

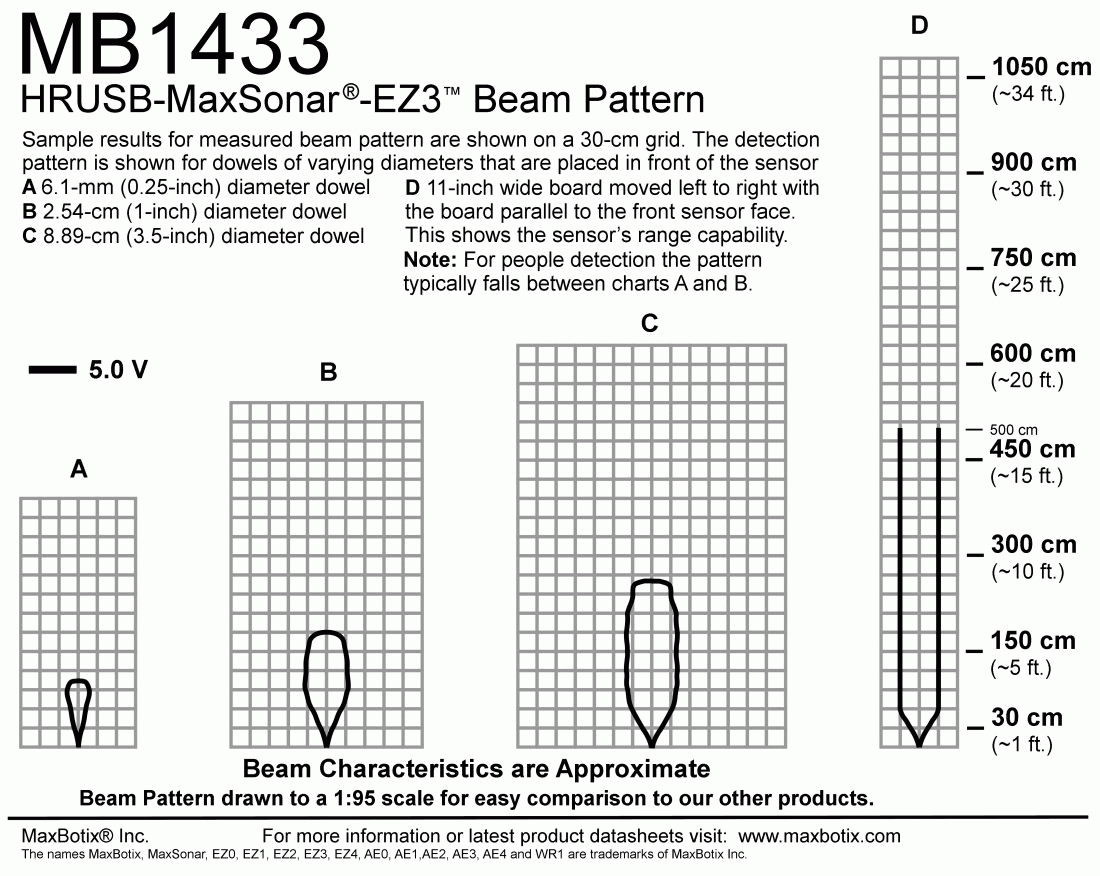

The HRUSB‑MaxSonar‑EZ3 is a narrow beam sensor with good side object rejection. The HRUSB‑MaxSonar‑EZ3 has slightly wider beam width than the MB1443 HRUSB‑MaxSonar‑EZ4 which makes it a good choice for when the HRUSB‑MaxSonar‑EZ4 does not have enough sensitivity for the application.



Product Specifications


  • USB interface
  • Resolution of 1 mm
  • Multi-sensor operation
  • ~250mS between range readings
  • Maximum Range of 5000 mm (196 inches)
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Virtually no sensor dead zone, objects closer than 30 cm range as 30 cm
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Narrow beam and good side object rejection
  • Best for large object detection applications
  • Quote Request Form: For orders greater than 100 sensors


Product Documentation

Documents and Downloads


MB1433 Datasheet HRUSB-MaxSonar-EZ3-datasheet
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip

Product 3D Models

These 3D model files will download with a different product name.

Key ShotIGES FileACIS 7.0
File
Solid Works Part
STL FileSTEP FileParaSolid
Part
